New

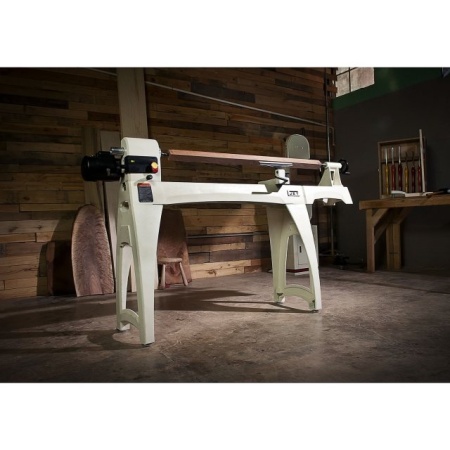

JET Heavy Duty Cast Iron Floor Standing Lathe with Variable Speed JWL-1440VS-M

SKU: JETJWL-1440VS-M Category:
  • Variable Speed Lathe 230v
  • Swing over bed 370mm
  • Swing over tool rest base 280mm
  • Centre distance 1,016mm

£1,899.99 inc. VAT

Key Features:

  •  Heavy, extra-wide cast iron machine bed for the ultimate in smooth operation and stability when working on unbalanced pieces

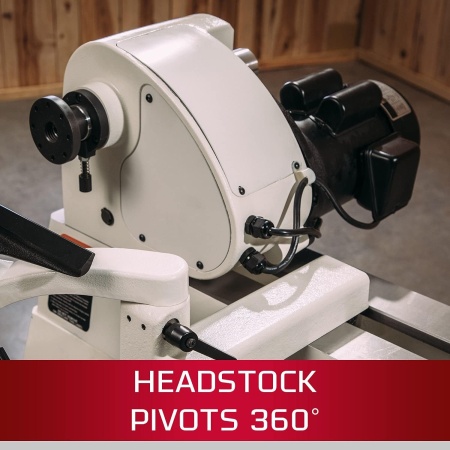

  •  Headstock moves across the entire machine bed, pivots by 360° with locking positions at 0° /30° /60° /90° /135° /180° /270°
  •  Infinitely variable speed control with twist handle at the headstock end, infinitely adjustable from 280 to 2’500rpm

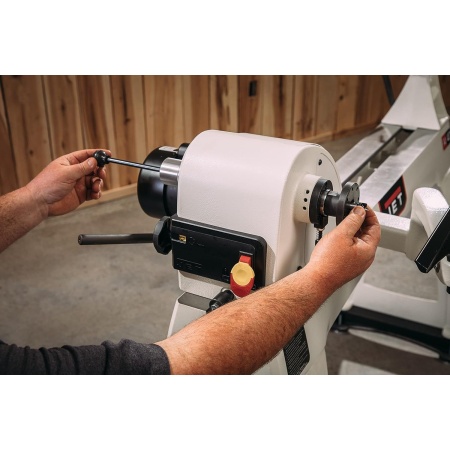

  •  Spindle lock on the front of the headstock to easily change the faceplate and turning chuck
  •  Double-wedge clamping for tool rest and extension, load-bearing, efficient, holds position securely
  •  Tailstock with heavy-duty Acme thread, 108mm quill stroke with scale, 9mm through-hole
  •  Integrated spindle indexing device 36×10°

Technical details:

  •  Motor (V/kW): 230/1.3
  •  Swing over bed (mm): 370
  •  Swing over tool rest base (mm): 280
  •  Centre distance (mm): 1’016
  •  Spindle speeds (rpm): 280–2’500, variable
  •  Spindle nose: M33×3.5
  •  Spindle index lock: 36×10°
  •  Headstock spindle taper: MT2
  •  Tailstock spindle taper: MT2
  •  Tailstock hole diameter (mm): 9
  •  Tailstock ram travel (mm): 108
  •  Steel support (ø/mm): 300/25.4
  •  Dimensions (mm): 1’850×535×1’250
  •  Weight (kg): 165

Specification:

  •  Motor KW: 230/1.3
  •  Spindle Speeds; 280–2’500, variable
  •  Spindle Nose; M33×3.5
  •  Swing Over Bed: 370
  •  Dimensions L x W x H; 1’850×535×1’250
Weight 165 kg

  • Motor (V/kW) 230/1.3
  • Swing over bed (mm) 370
  • Swing over tool rest base (mm) 280
  • Centre distance (mm) 1’016
  • Spindle speeds (rpm) 280 – 2’500, variable
  • Spindle nose M33 x 3.5
  • Spindle index lock 36 x 10°
  • Headstock spindle taper MT2
  • Tailstock spindle taper MT2
  • Tailstock hole diameter (mm) 9
  • Tailstock ram travel (mm) 108
  • Steel support (mm) 300/25.4
  • Dimensions (mm) 1’850 x 535 x 1’250
  • Weight (kg) 165
