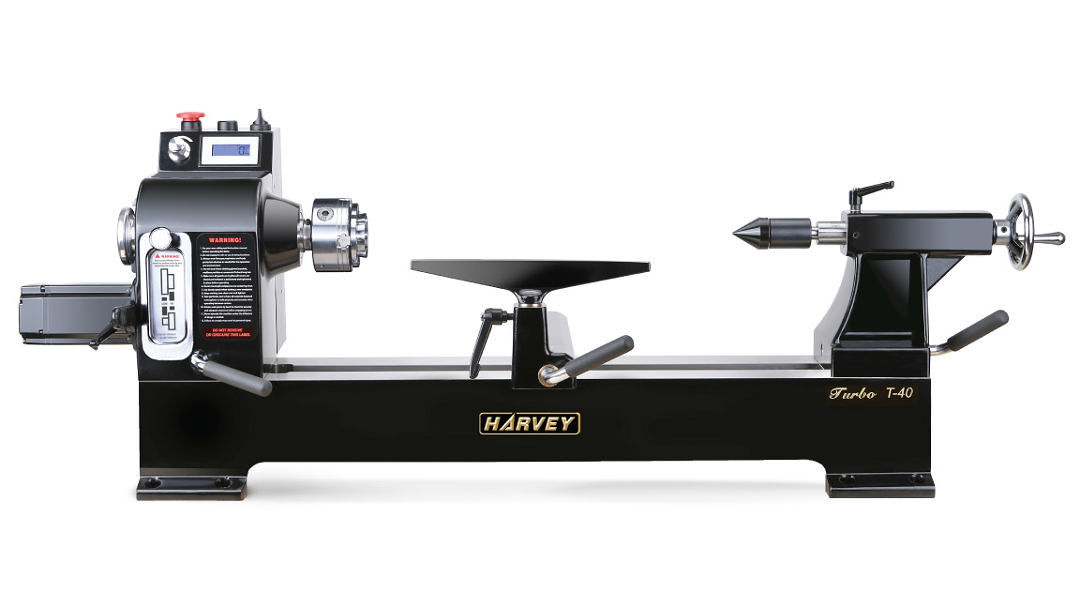

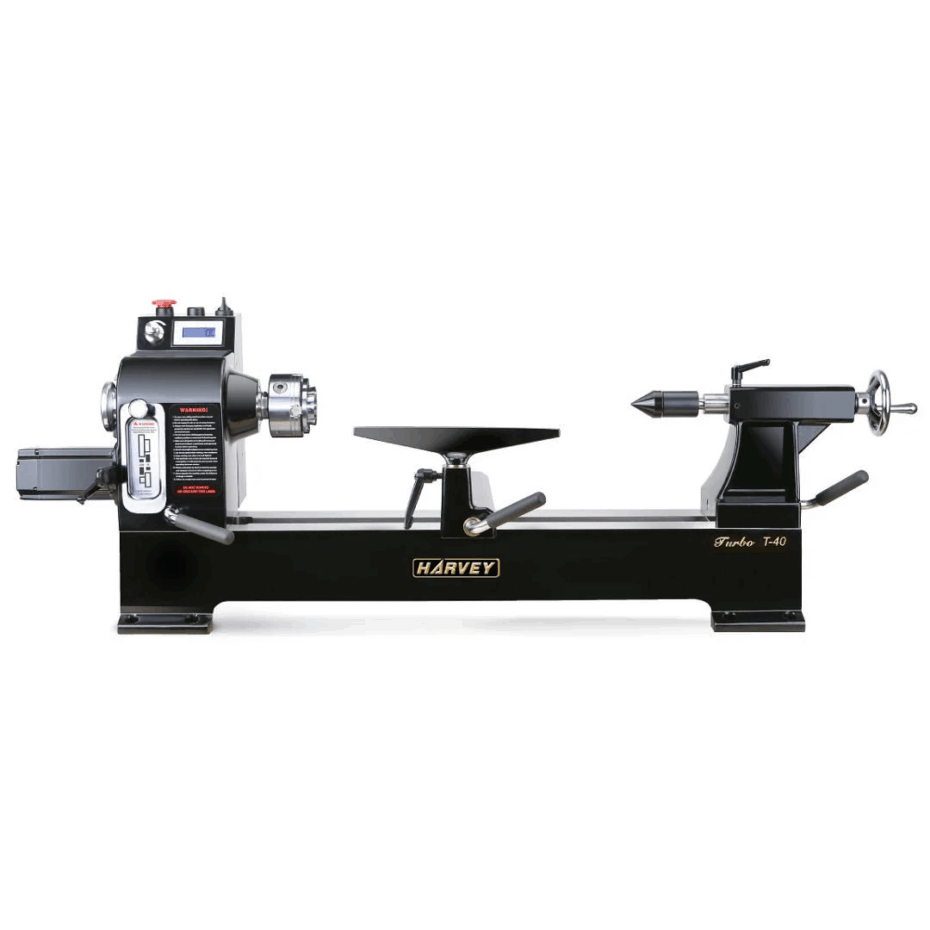

Harvey TURBO T-40 Woodturning Lathe With Servo Motor

SKU: N/A Category:
The Harvey turbo T-40 is a fully cast iron highly engineered woodturning lathe. The Harvey motto is 'Good enough is not enough'

From: £2,499.00 inc. VAT

Harvey Woodworking Machinery believe that ‘Good enough is not enough’, this is embodied in the Harvey Turbo T-40 Woodturning lathe.  The Harvey Turbo T-40 features the casting size, power, and controls of a large lathe.

The Harvey Turbo T-40 is a highly engineered woodturning lathe made entirely of cast iron.  It incorporates an Induhttps://gem-3910432.netstrial Servo Motor, commonly used on metal working lathes for its powerful torque, which allows the T-40 a greater torque and speed capacity. Each lathe part is made from carefully selected premium materials to enhance both aesthetics and functionality.

The body of the T-40 features a stoving varnish finish, ensuring durability and enhanced resistance against scratches, chipping, wear, and fading. Even the logos and nameplate have been upgraded for a more refined look. The fit and finish are engineered and crafted to ensure flawless operation and deliver an unparalleled personal experience. The T-40 lets you experience the “fine” in fine woodworking.

One-of-a-kind Mini Monster

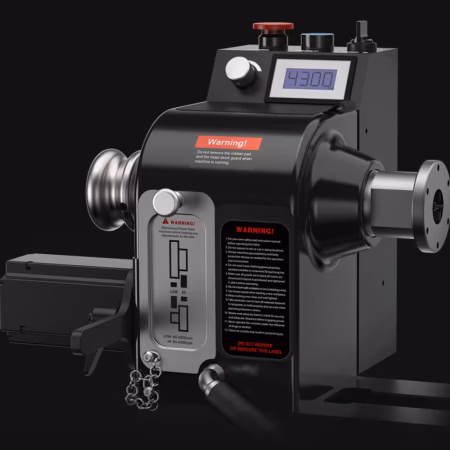

  • Spindle Drive with Servo Motor
  • The 220V Industrial Servo Spindle Motor, typically used in metalworking machining centers, eliminates the issues of insufficient torque and drag commonly found in most small lathes on the market.
  • With a marvelous 300% overload capacity and an instant response to torque demands, the T-40 runs smoothly in operation.
Consistent Turning Speed Anywhere in the Range
  • The design of the servo motor and drive system is strong along the entire range from 60-4300 RPM.
  • The system delivers consistent power, meeting demand without surging, whether at the top or low end.
  • This is accomplished with a 2-microsecond response time, making it 100 times faster than many machines.
Power with an Instant Response
  • The drive computer’s instant response system manages the servo motor, adjusting dynamically to changes in torque.
  • During turning, the system monitors torque levels, and the servo motor adjusts speed to maintain a smooth, consistent operation.
  • The servo motor can provide up to 3HP at its peak, an incredible 12.54 Nm (Newton Meters). This means that the T-40 is capable of handling almost any kind of difficult cut.
Stability & Versatility
  • The T-40 has impressive capacities: 14″ (360mm) over the bed; and 24″ (610mm) between the centers.
  • The head also swivels up to 90 degrees for larger diameter bowls.
  • The T-40 is an awesome 178lbs. (80kg) providing it with the mass needed for stability and dampening vibrations in almost any operation
Attention to the Details Makes for A Unique Experience
  • Aesthetically Designed Tool Rest
  • The shape of the tool rest has been redesigned for operator ease and comfort.
Upgraded Live Center for More Stability of Workpiece
  • The live center is now crafted from carbon alloy tool steel.
  • The live center now offers greater stability and accuracy due to its hardness, abrasion resistance, and shape retention at high temperatures.
Weight 100 kg
