- Part Of The Harvey Compass Router Table system
- 100mm (4″) diameter dust port
- Adjustable Air Inlet Vents Increase Airflow
- Hinged Door Provides Access To The Router
- Simply Bolts To The Underside of the RT-800 Table Top
- Provides Above & Below Collection When Used With RF-36 Fence
The Harvey router table system can be purchased either as a complete unit, or as 4 separate components to suit your requirements:
- RT-800 Router Table Top
Cast Iron Nickel-pated Router Table Top
- RF-36-M Router Table Fence (Metric)
Innovative Fence System with ‘Dual Fine-Tuning’ Mechanism
- RT-S Router Table Floor Stand with UK switch
Mobile floorstand built for reliability & stability
- RT-DC Dust Collector Cabinet for Router Table
100mm outlet for efficient collection
RT-DC Dust Collector Cabinet for Router Table

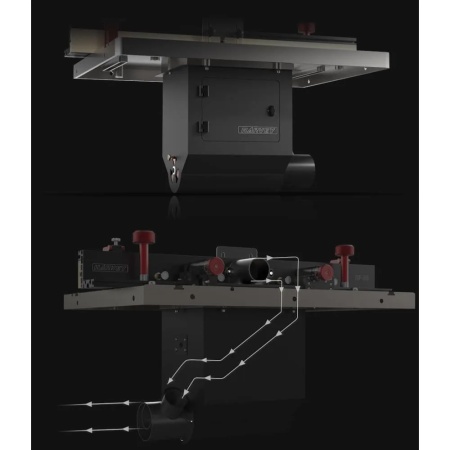

It is equipped with a 100mm (4″) diameter dust port with a T-piece branching to a 63mm Inlet. When using as part of the complete router table package it will work in conjunction with the 63mm (2.5″) outlet on the RF-36 fence, combining them into a single collection point.
The adjustable air inlets, also allow for greater efficiency when dust collecting, enabling clean and enjoyable cutting.
A hinged door to the cabinet allows easy access to the router for setting up and making adjustments.
Installation onto the RT-800 router table top is simple. It bolts to the underside of the cast iron table.
Supplied with 1m length of 63mm Hose, 2 hose clamps.
| 350mm x 420mm x 420mm |
