Cast Iron Router Table can be purchased individually to make your own set up or as part of the Harvey Compass Package.
- One Piece Cast Iron Construction
- Nickel-plated For A Rust Free Lifetime

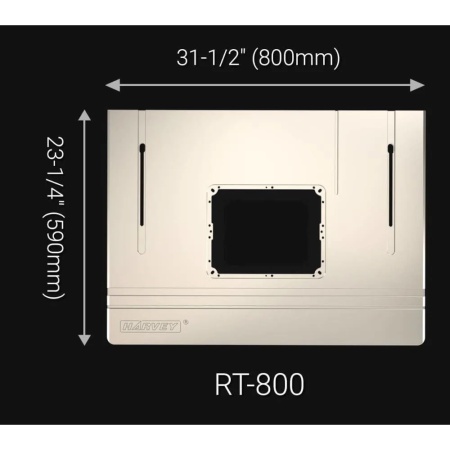

- Table Size: 800 x 590 x 45mm

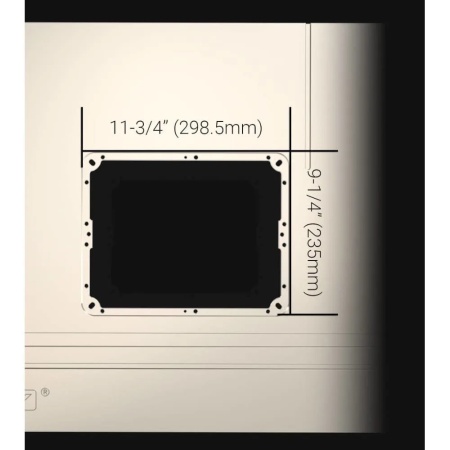

- Opening Size: 298.5 x 235 x 10mm
- Compatible with all Harvey Alpha Table Saws
- Includes 2 Slots For mounting A Fence
- Includes T-slot For Mitre Fence
- Compatible with Router Lifts from different brands, including Jessem
The Harvey router table system can be purchased either as a complete unit, or as 4 separate components to suit your requirements:
- RT-800 Router Table Top
Cast Iron Nickel-pated Router Table Top
- RF-36-M Router Table Fence (Metric)
Innovative Fence System with ‘Dual Fine-Tuning’ Mechanism
- RT-S Router Table Floor Stand with UK switch
Mobile floorstand built for reliability & stability
- RT-DC Dust Collector Cabinet for Router Table
100mm outlet for efficient collection
| Specification | Value |
|---|---|
| Table Size | 800mm x 590mm |
| Aperture Size | 298.5mm x 235mm |
| Front T-slot To Arbor Centre | 152mm |
| T-slot Size | 25mm x 19mm x 9.5mm (1″ x 3/4″ x 3/8″) |
| Rear T-Slot To Arbor Centre | 190mm |
| Size Of Rear T-Slot | 14.2mm x 9mm x 10mm |
| Weight (Net / Gross) | 48 / 51kg |
| Shipping Size | 870mm x 740mm x 100mm |
