Charnwood W050 Tilt Arbor Spindle Moulder with 1/4″ & 1/2″ Routing Spindle Included

A powerful trade rated spindle moulder, capable of using tooling up to 200mm in diameter.

• 2.8kW Induction Motor with Brake

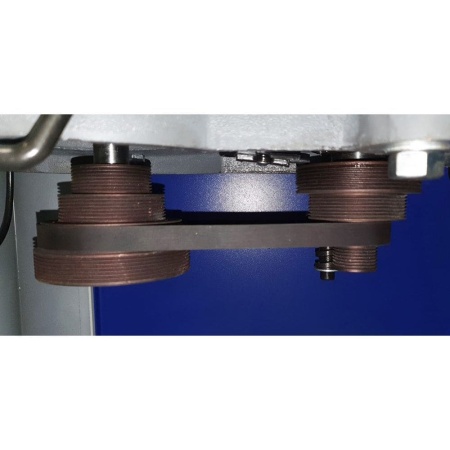

• Four Speeds with Digital read-out
• Sliding Beam 48″ Capacity
• Cast Iron Main Table
• 45 degree Backwards Tilting Spindle

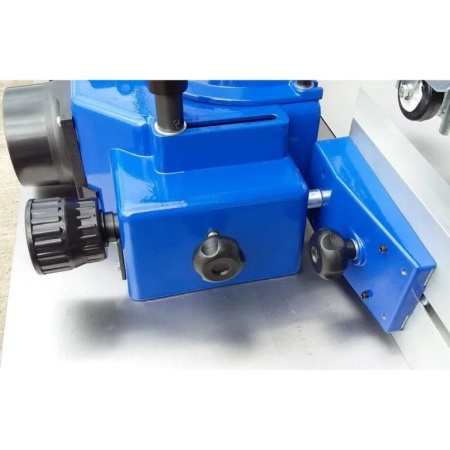

• Independently Adjustable Fences
• 30mm Spindle Included
• 1/4″ & 1/2″ Diameter Routing Spindle Included

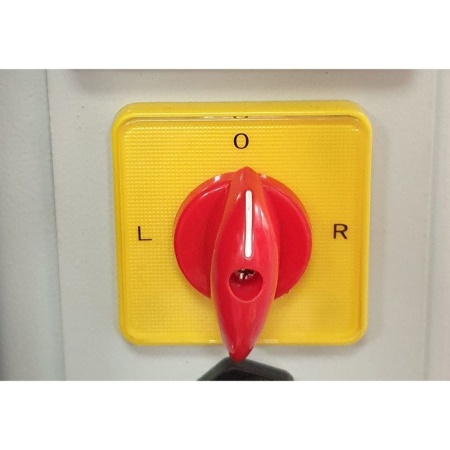

• Spindle Runs In Both Directions
• Optional Outrigger with Squaring Arm

A large precision ground cast iron table forms the main surface. In front of this sits a full width sliding bed, which includes a mitre fence and work clamp as standard equipment.

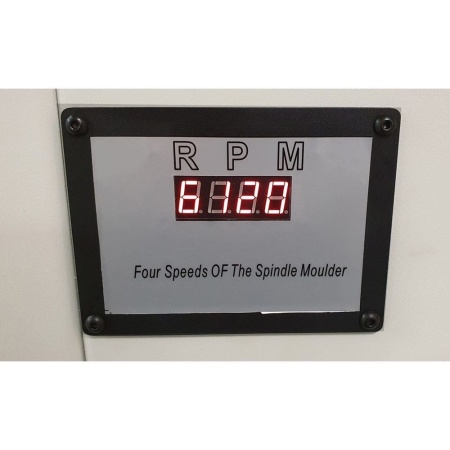

A mechanically braked motor offers ample power to use tooling up to 200mm in diameter with a choice of four speeds to allow a wide range of tooling to be used. A digital speed display informs the operator of the current speed setting.

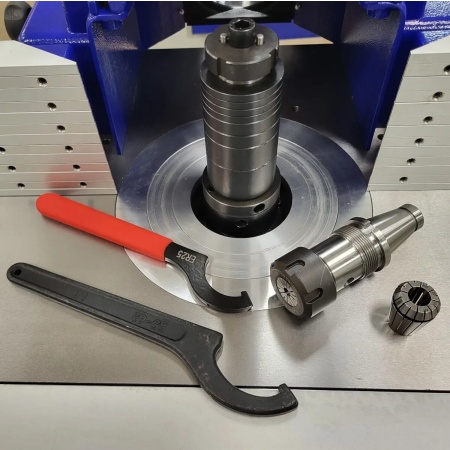

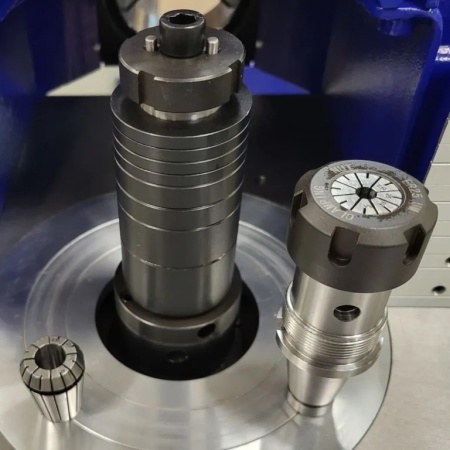

The top spindle is removable and there are 2 options: Standard 30mm Spindle for cutter blocks and Routing spindle with 1/4″ & 1/2″ diameter collets.

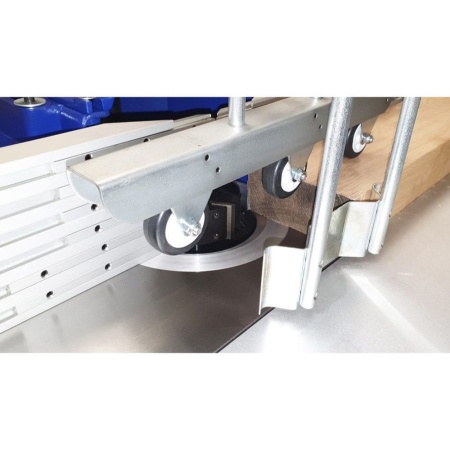

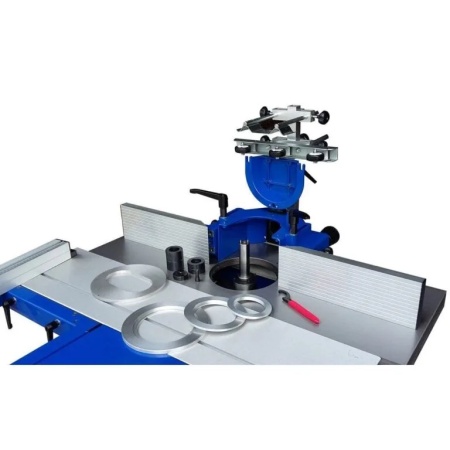

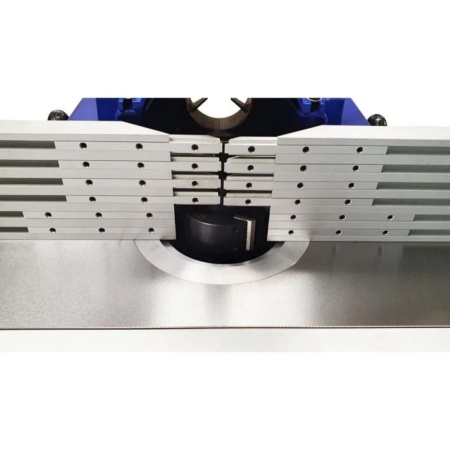

Further versatility is provided by the backwards tilt facility. The spindle hood is of cast alloy and is fitted with long, fully adjustable fences, a vertical hold down, front clamp and a 100mm dust outlet. A hinged lid allows for easy access when setting the tooling.

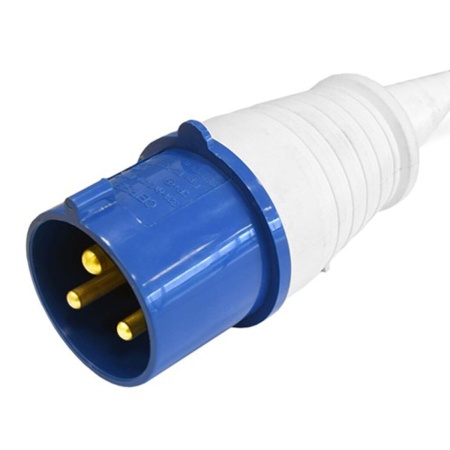

Supplied with set of spindle spacers, table inserts (80mm, 110mm & 150mm), 1/4″ & 1/2″ routing collets, 2.0m power cable, 16amp industrial plug.

A 16 amp, 240v electric supply is required to run this machine. We also recommend using a 16amp Type C breaker.

Optional Items:

W050ET: The optional outrigger table with telescopic support arm is ideal for those working with larger panels or longer lengths of timber. A squaring arm can be set to any angle and has a flip-over sliding length stop graduated in millimetres up to 1500mm.

SMRF: The optional Ring Fence allows safe working when putting an edge moulding onto curved shaped pieces. It consists of a round fence to control the depth of cut, a transparent cutter guard, a lead in guide and a 100mm diameter extraction outlet. The W050 Table is pre-drilled ready to accept the ring fence.
