Charnwood W014 Floorstanding Router Table

SKU: CHRW014 Category:
(7 customer reviews)

Charnwood W014 Router Table Can be used with any 1/4" or 1/2" sized router

£209.99 inc. VAT

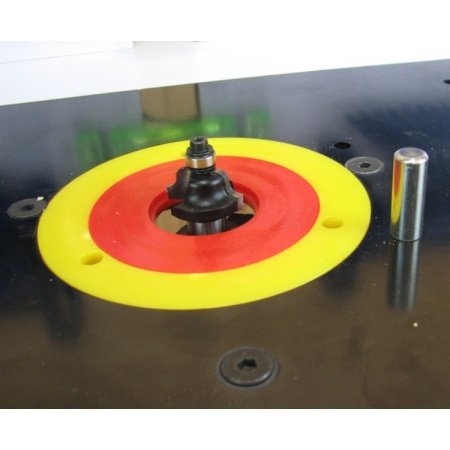

A versatile floorstanding router table for inverted table routing. Can be used with any 1/4″ or 1/2″ sized router. The table top is made from a single piece of 35mm thick laminated MDF, to provide a flat and durable surface to work on. The mounting plate is made from a tough plastic which can be drilled to mount any router. The plate is held in place by magnets allowing tool free removal of the router from the table, when making adjustments or changing cutters. Two insert rings allow the diameter of the aperture to be reduced when working with smaller diameter cutters.

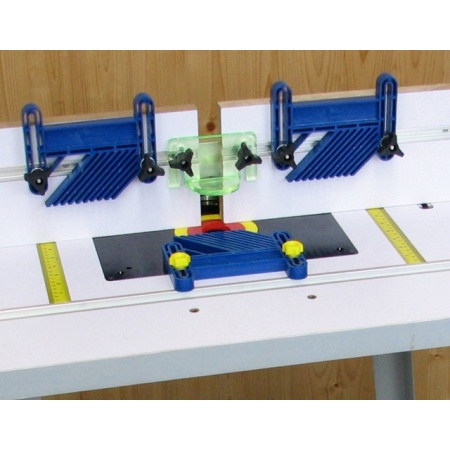

Secure clamping of the work piece is achieved by setting the 2 fence mounted featherbords, to hold the work down against the table top and the front featherboard to hold the work up against the fence. Using this method edge mouldings can safely be cut onto small pieces such as beading or picture frames.

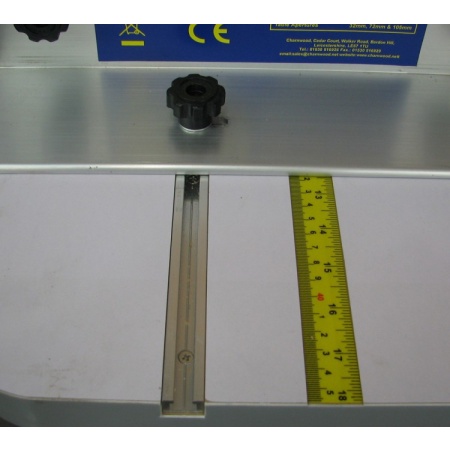

For cutting across grain, or tenons, a metal mitre fence is supplied which runs in a T-slot along the front of the table. The mitre fence has stops at 45 degrees each way and at 90 degrees.

The guide fence has two adjustable faces which can be moved to match the diameter of the cutter. Two scales in the surface of the table allow fast and accurate setting of the fence.

At the rear of the fence is an outlet for dust extraction.

Supplied with 3 featherbords, mitre guide, lead in pin for curved pieces, 68mm diameter extraction outlet. Use our 100/63RC to convert for 100mm diameter extraction hose.

Weight 24 kg
Choose Package:

,

Table Size 800mm x 600mm
Table Apertures 97, 67, 32mm
Table Height 870mm
Dust Outlet 68mm
Dimensions (WxDxH) 800mm x 600mm x 1020mm
Weight 24kg
Warranty 1 Year
Rating Light Trade

7 reviews for Charnwood W014 Floorstanding Router Table

  1. james southern (verified owner)

    the charnwood 014 router table is easy to assemble very easy to use.this is the first table and router ive bought i am a 75 year old novice and i think they are fantastic.

  2. Clive Wilson (verified owner)

    Yes, a nice table. I made a cover on the 3D printer for the exhaust at the top as the router I bought had a vacuum attachment fitted below the table. I found that a long cutting guide was still useful for trimming plywood, so I went to ***** and got one. I had to take the remote switch from my previous router table as it doesn’t arrive with this feature (although I understand it is an optional accessory). Once I’d finished, I had a very nice addition to my workshop.

  3. John (verified owner)

    Excellent router table, wish I’d bought it years ago.
    Only drawback is fitting and levelling the router. I think it would be a lot easier if 4 quick action clamps were fitted underneath the table

  4. NeilWatts (verified owner)

    Easy to assemble , made so many tasks far easier than using a handheld router.

  5. RalphMartin (verified owner)

    Generally OK, although laminate surface is brittle and bits have chipped off.

  6. DanielPlumb (verified owner)

    Product fine although there was some damage to the outsides of the table. It doesn’t affect the operation of the table but not quite the point. Other than that, happy.

  7. PatrickCaldwell (verified owner)

    Great product at a sensible price, robust and fit for purpose, would recommend
