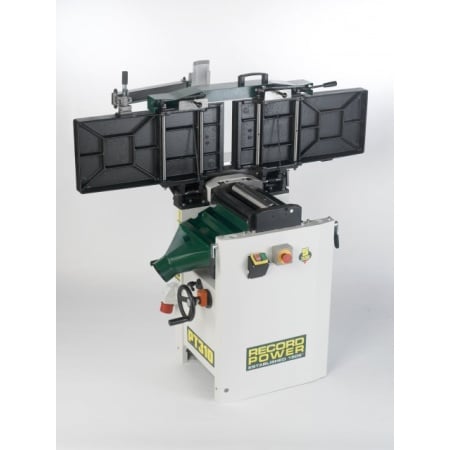

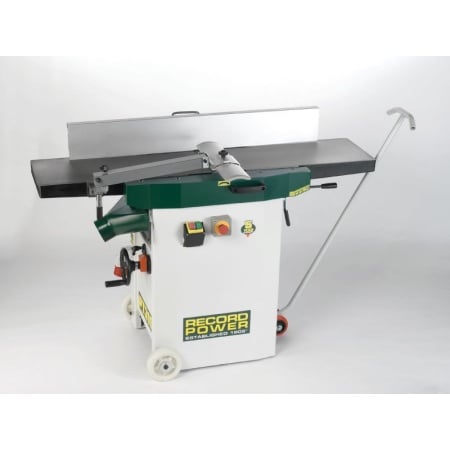

The Record Power PT310 is a compact yet extremely accurate, powerful and easy to use heavy-duty planer thicknesser. It has been designed to offer serious home users a high performance solution for accurate dimensioning of timber. One of the key features of the PT310 is its parallel table lift design. Changeover from planing to thicknessing mode is fast and easy – simply loosen the cam action table locks and lift the entire table assembly, including the fence, in one movement.
For a smooth, superior finish, the cutter block has 3 knives and the outfeed roller is rubber coated to reduce marking of the timber as it is fed from the machine. Easy to use, powerful and accurate, the PT310 gives professional performance and results in a compact and cost effective package.
Key Features:
- Tilting Fence
- Cast Iron Tables
- Swing Away Table
- Rubber Out-Feed Rollers
- Central Thicknessing Column
- Independent In & Out Feed Table Adjustment
- Wheel Kit Included
Features:
- Fence tilts to 45º
The fence can be quickly tilted to 45º with the simple to use fence mount system.
- 3 Knife Cutter Block
A proven industrial design, the 3 knives of the cutter block ensure a smooth finish.
- Easy to Use Cam Action Table Lock
The tables are locked in place in seconds with the easily accessible lock levers.
- Digital Readout
Easy to upgrade digital readout accurately shows position of the thicknessing table.

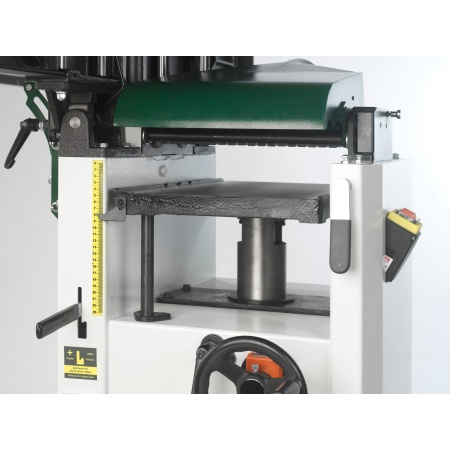

- Parallel Table Lift
Fast and easy changeover for improved work flow.
- Jockey Bar Wheel Kit Included
For easy movement of the PT310 around the workshop.
Spec:
- Thicknesser Feed Rate: 7 metres / minute
- Cutter Block Knives: 3
- Cutter Block Diameter: 70 mm
- Maximum Thicknessing Height: 230 mm
- Maximum Thicknessing Width: 310 mm
- Maximum Thicknesser Depth of Cut: 3 mm
- Maximum Planing Width: 310 mm
- Maximum Planer Depth of Cut: 3 mm
- Planing Table Length: 1407 mm
- Motor input P1: 2.75 kW
- Motor output P2: 2.2 kW
- Weight: 202 kg
- Size: W1407 mm x D745 mm x H1005 m
PLEASE NOTE: The single phase (230v) variant of this machine requires a 16 amp supply. A 16 amp cable for this does not come supplied with the machine
