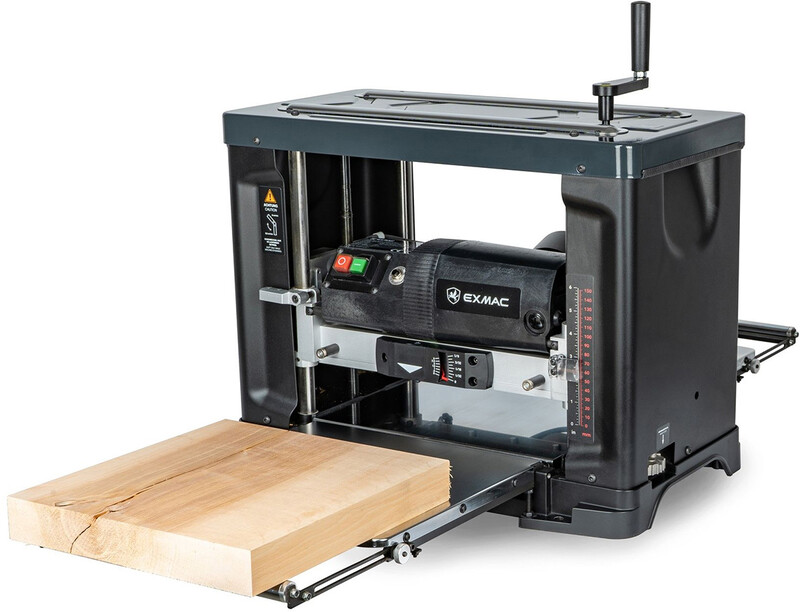

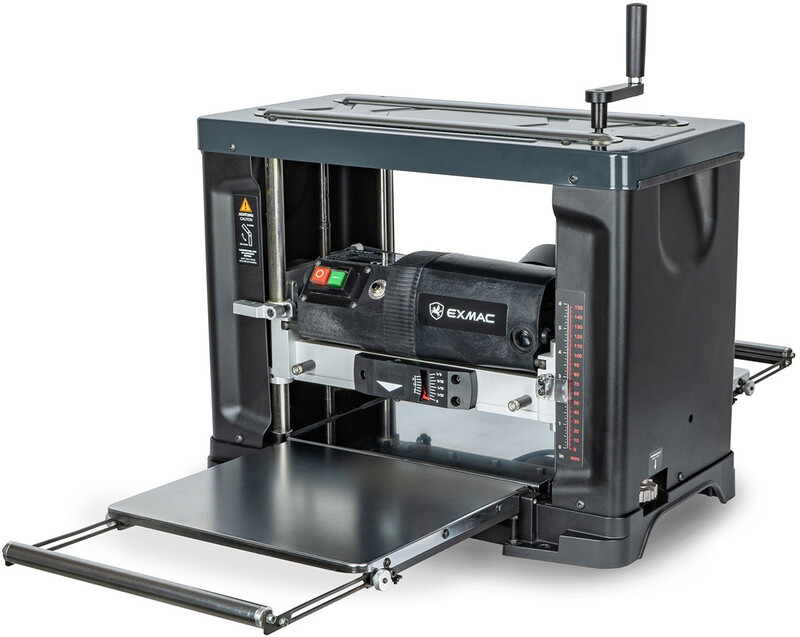

The Exmac Bench Top Thicknesser
With an impressive 13″/ 330mm planing width, Carbide Cutter Block, Dual Feed Speed, Extending Beds & 2HP Motor, the Exmac D330 thicknesser is in a league of its own, comparable to no other machine in the UK market!
Portable thickness planer with 330mm planing width and 2 feed speeds. Unique planing shaft with offset 4-sided carbide (hard metal) indexable inserts for optimum precision and service life.

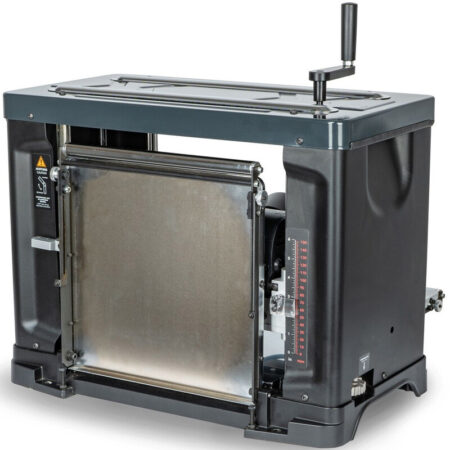

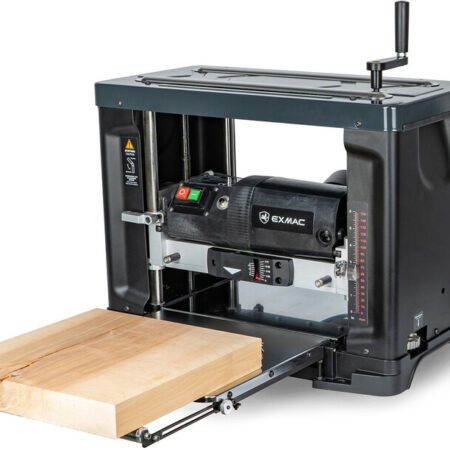

The EXMAC D330 is a thickness planer with a robust metal construction and scores particularly highly with its features and sophisticated details.
The 2 feed speeds, powerful motor and solid planing shaft with 4-sided carbide (HW) indexable inserts guarantee excellently planed surfaces.

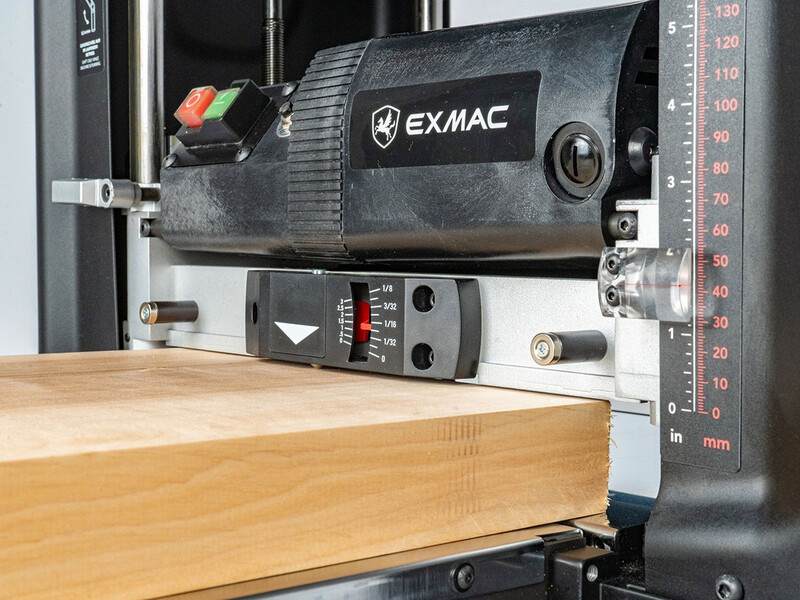

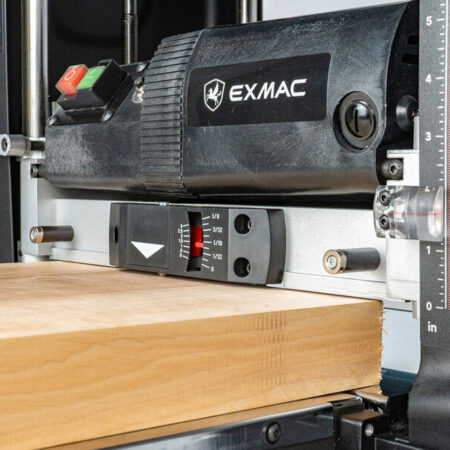

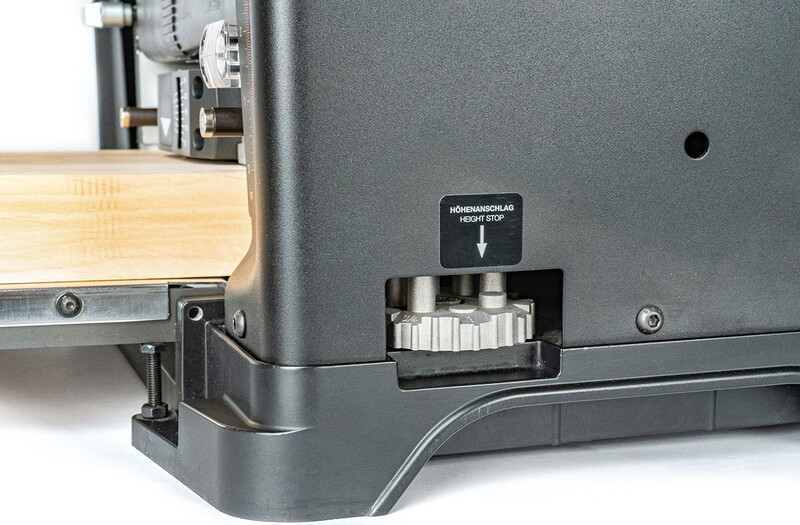

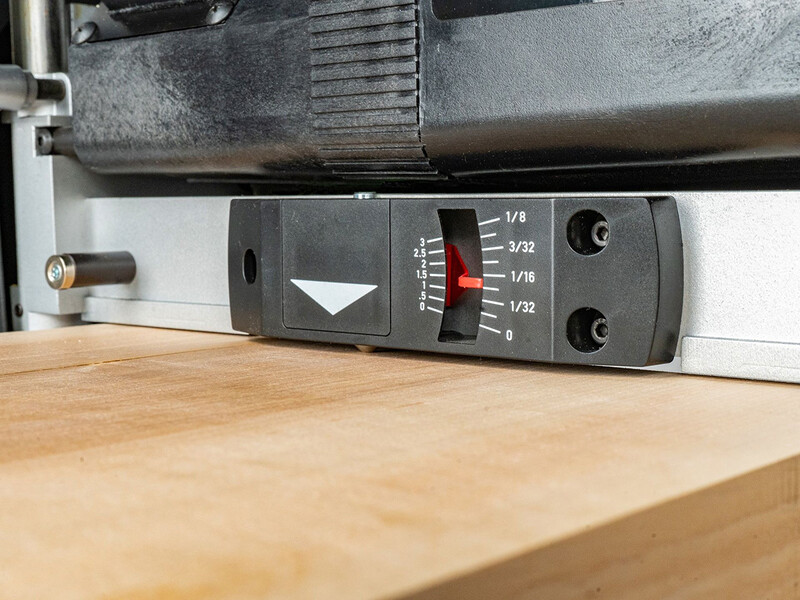

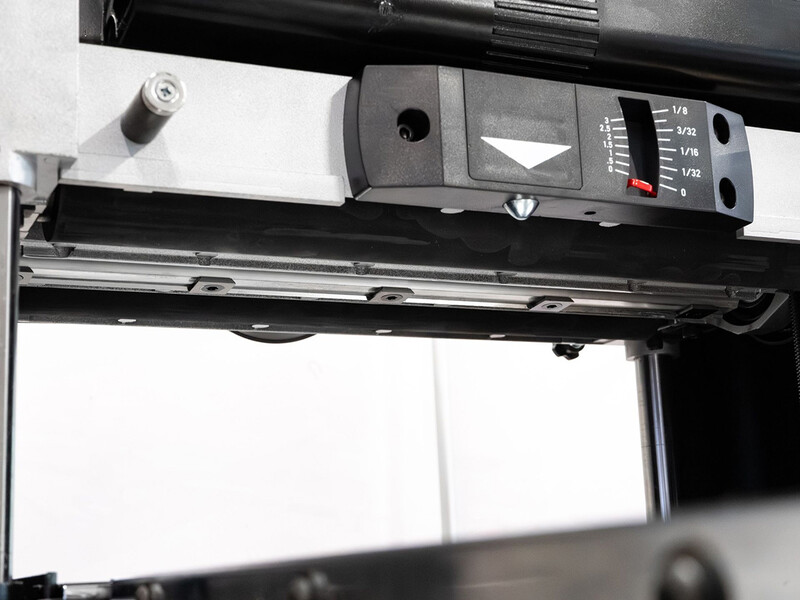

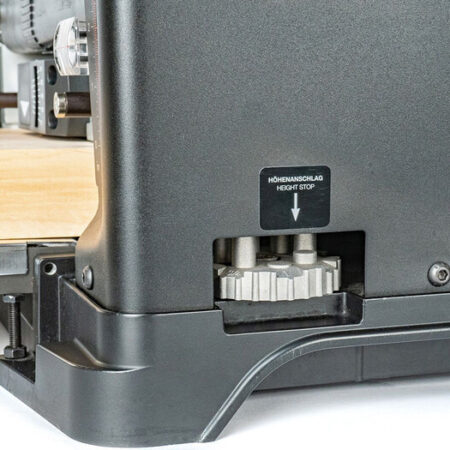

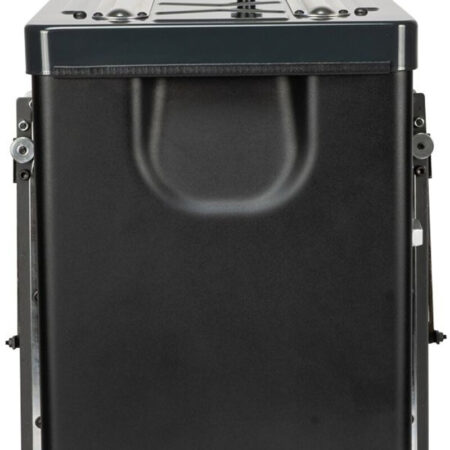

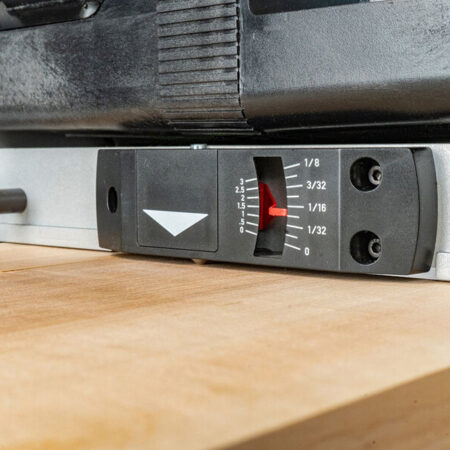

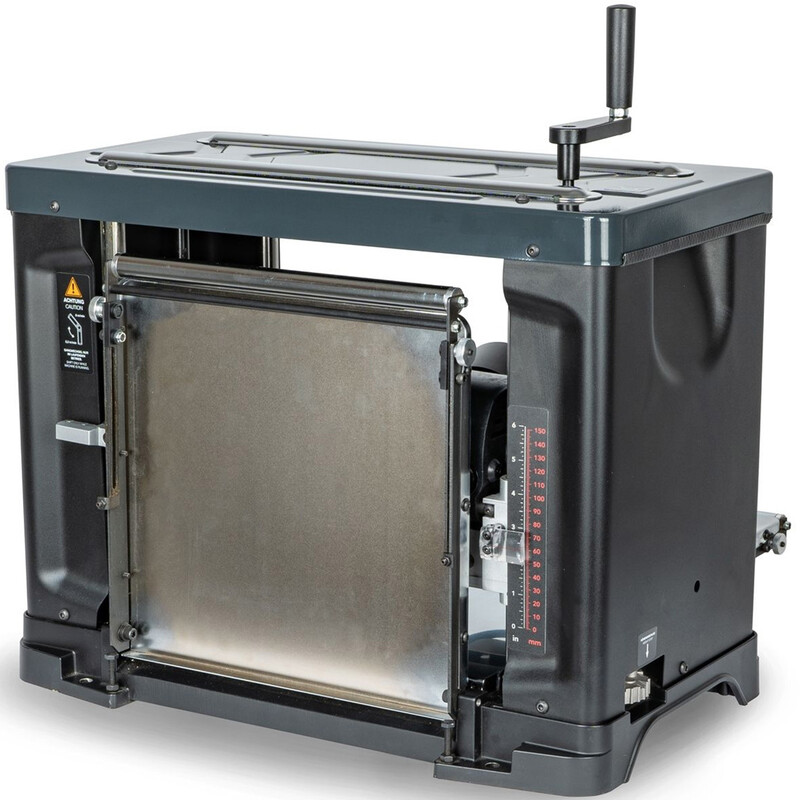

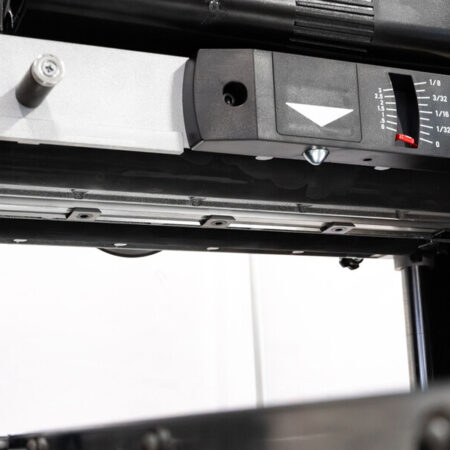

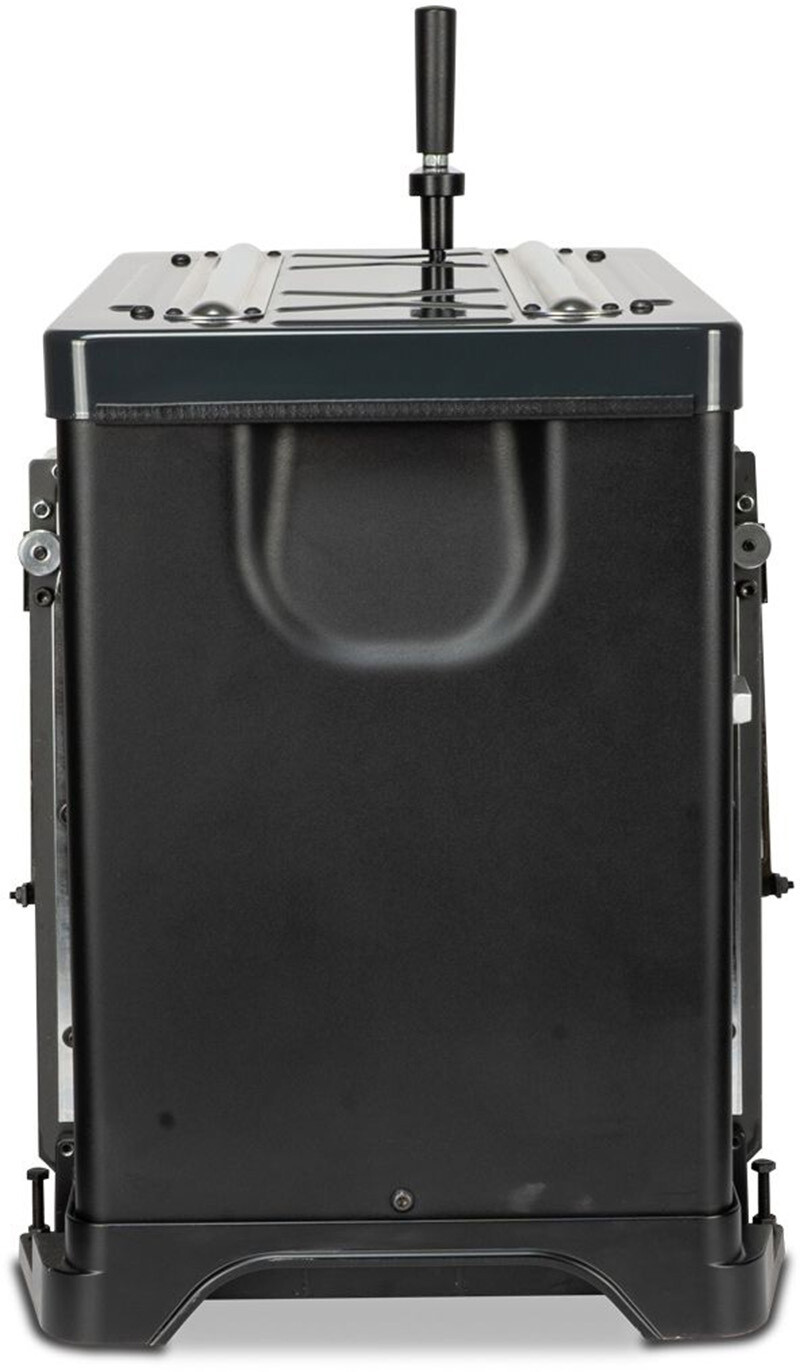

This compact thickness planer has adjustable tables with built-in extensions that can be folded away when not in use. The two carrying handles allow it to be stored in a space-saving manner. The solid metal housing ensures dimensional stability in both stationary and mobile use. The quick chip removal adjustment and the depth stop with 8 positions are practical aids and ensure rapid work progress.
Planing shaft with carbide (HW) indexable inserts (can be used on 4 sides!):
The advantage of this carbide indexable insert planing shaft over conventional strip planing shafts is not only its long cutting life, but also the fact that no fine adjustment is necessary when changing planing knives. This naturally saves time and eliminates the need for tedious adjustment work.
Repeat accuracy and thus precision are important advantages of carbide indexable inserts. If an indexable insert is damaged, it is sufficient to replace only that one insert and not all of the blades, as would be the case with a strip planing blade shaft.
For woodworkers who value precise and efficient machining of their workpieces, planer shafts with HW indexable inserts are therefore an excellent choice. The 4-sided, replaceable HW (carbide) indexable inserts reduce downtime and protect the machine components.
The low noise level ensures a pleasant working environment and the excellent surface quality of the planing result eliminates the need for subsequent sanding work. In addition, their lower power consumption is easy on both the environment and your wallet.
Advantages of the EXMAC D330 thickness planer at a glance:
• High-quality and precisely manufactured components
• Machine structure and cladding made of high-quality and robust metal (no plastic)
• Top planing results thanks to the modern indexable insert planing shaft, equipped with carbide indexable inserts
• Time-saving and precise replacement of indexable inserts without time-consuming adjustment work
• The carbide indexable inserts are ground on 4 sides and can therefore be used 4 times, which saves costs and increases the service life enormously
• Significantly quieter in operation than many other machines with conventional planing shafts
• 2-feed speeds for optimum work progress

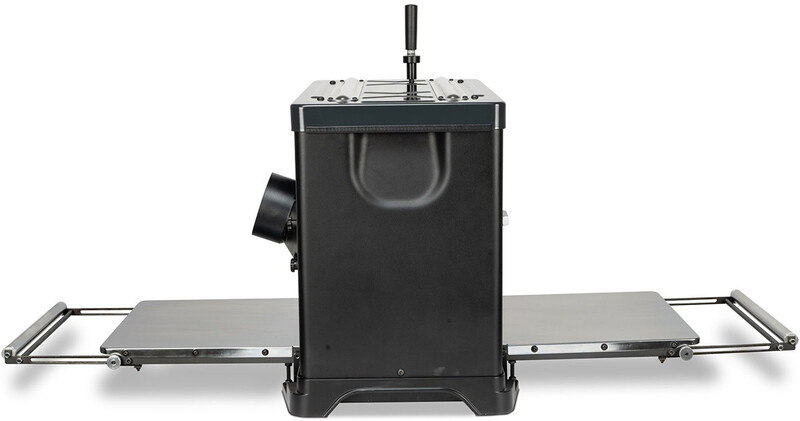

• Foldable table extension with additional pull-outs
• Powerful drive motor with 230V connection
• Common thickness planer dimensions can be quickly preset

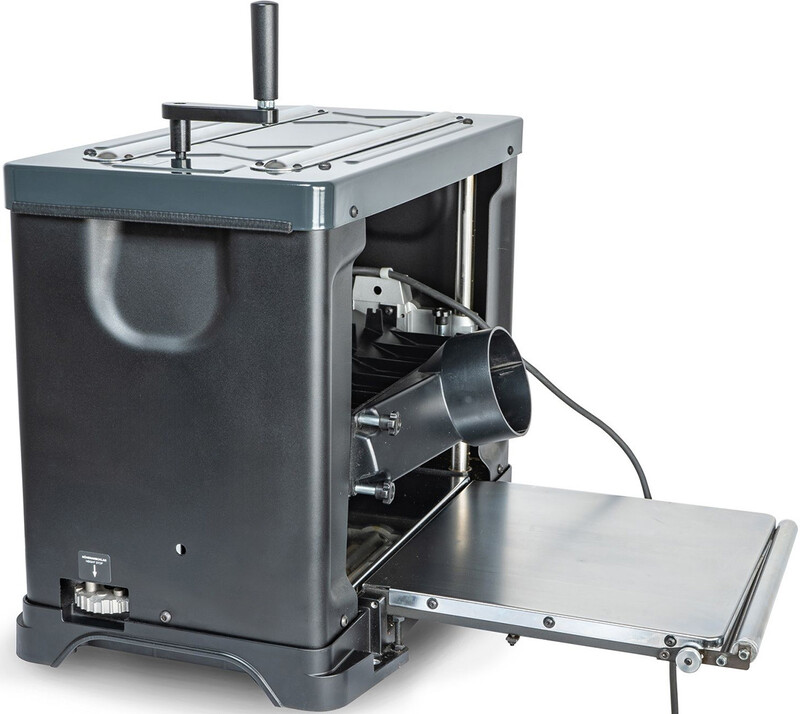

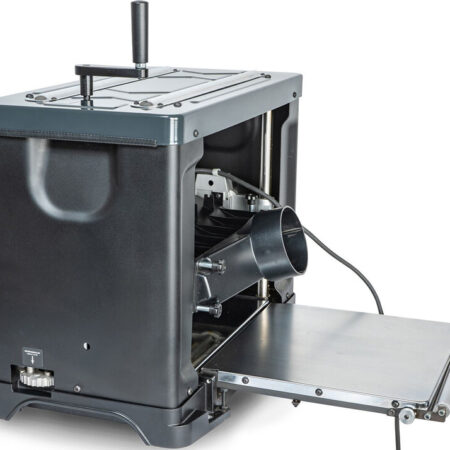

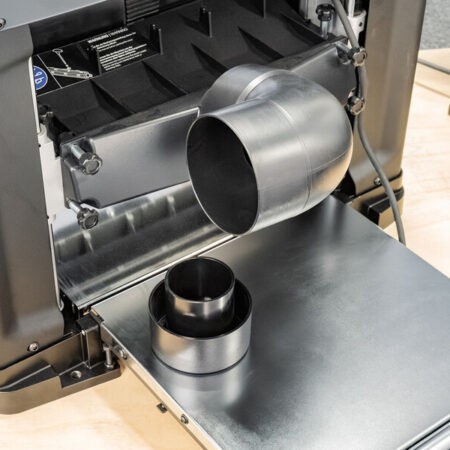

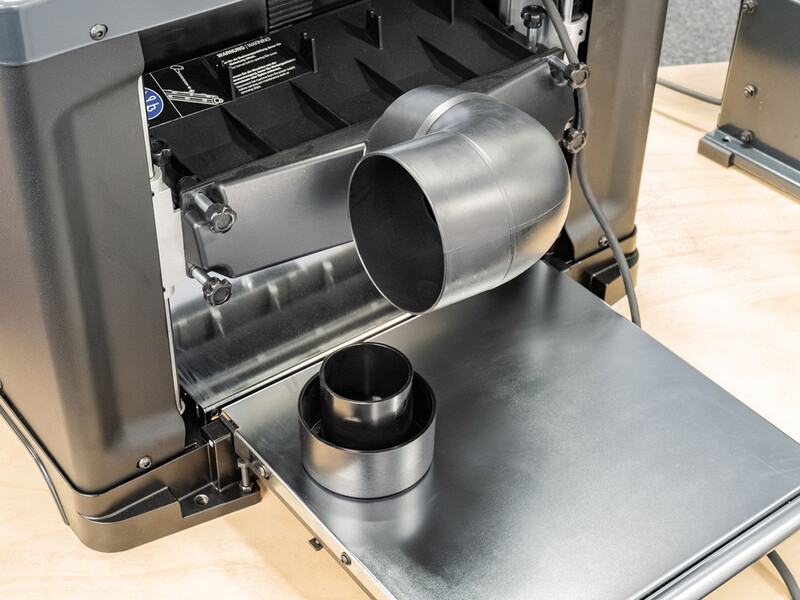

• Suction nozzle can be swivelled and thus positioned as desired and conveniently
• Compact dimensions, easy to store, also ideal for construction sites or weekend homes, etc.
• 5-year EXMAC warranty
Technical data:
• Power 1,500 W (2 HP, 230 V)
• Planing shaft speed 10,000 rpm
• Max. planing width 330 mm
• Max. workpiece capacity 330 mm x 152 mm
• Max. chip removal at 330 mm – 1.6 mm
• Max. chip removal at 152 mm – 3.2 mm
• Planing shaft with 26 carbide indexable inserts, can be used on 4 sides
• 2-feed speeds 5.5 & 8 m/min.
• Storage dimensions with tables folded down, excluding crank (L x W x H) 355 mm x 560 mm x 440 mm

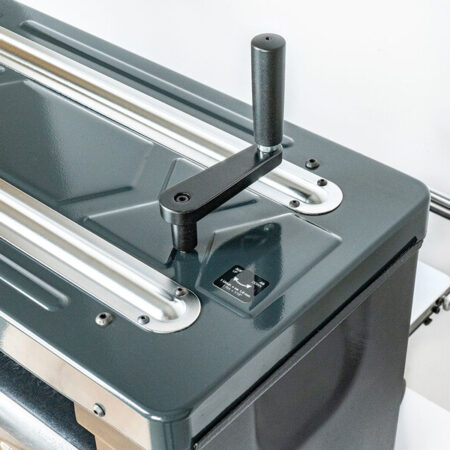

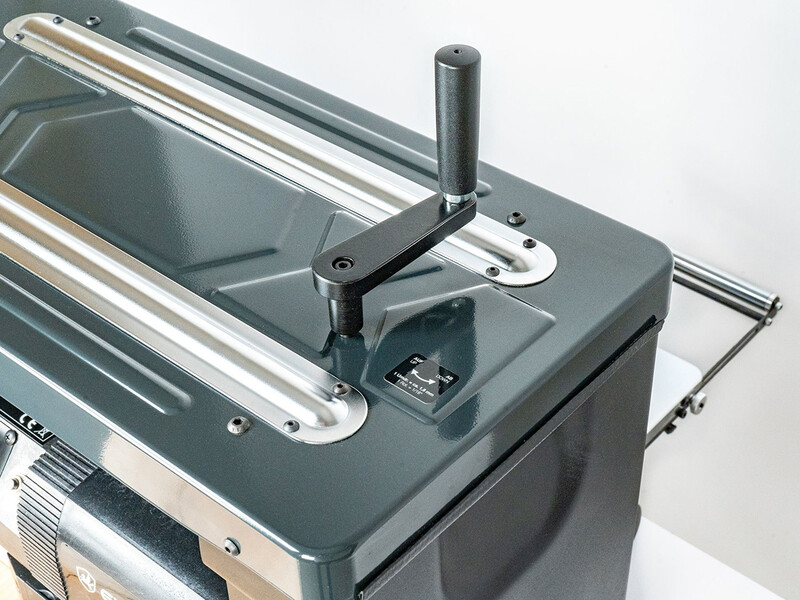

• Set-up dimensions including crank (L x W x H) approx. 1150 mm x 560 mm x approx. 550 mm
• Extraction connection 100 mm / 63.5 mm
• Weight approx. 35 kg
