Record Power Helical Planer Thicknesser With Spiral Blade Block + Digital Readout!
The Record Power PT310-HB is a compact yet extremely accurate, powerful and easy to use heavy-duty planer thicknesser. It has been designed to offer serious home users a high-performance solution for accurate dimensioning of timber.

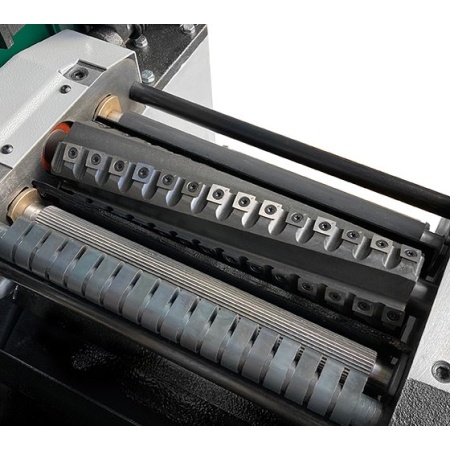

At the heart of this machine is the helical cutter block. It features 56 TCT cutter heads arranged in a helical format over four rows. The blades themselves are machined to a convex profile to achieve a shear cut, resulting in an extremely high-quality finish to the timber. This method of cutting is extremely efficient and reduces the power consumed and strain on the machine when compared to the traditional 3-knife cutter block planer thicknesser. The arrangement of the cutter blocks also allows for increased airflow between the blades, ensuring the air is exhausted from the machine efficiently which greatly reduces the operating noise by up to 50% over traditional machines.
The helical block creates small, evenly sized chippings, meaning more effective extraction is achieved, further adding to the operating efficiency of this machine. The TCT blades last 10-20 times longer than traditional HSS planer blades and each cutter block has four sides, so when the blades become blunt, simply rotate them to expose a fresh cutting edge. In comparison to a traditional 3-knife machine, blade change and setup is simple and easy as each cutter block is secured to the block in a fixed position – meaning no intricate setup operations are necessary.
Another key feature of the PT310-HB is its parallel table lift design. Changeover from planing to thicknessing mode is fast and easy – simply loosen the cam action table locks and lift the entire table assembly, including the fence, in one movement.
To further ensure a smooth, superior finish, the outfeed roller is rubber-coated to reduce marking of the timber as it is fed from the machine. Easy to use, powerful and accurate, the PT310-HB gives professional performance and results in a compact and cost-effective package.
- Thicknesser feed rate: 7 M/min
- Helical block inserts: 56
- Insert size: 15 x 15 x 2.5 x R150 mm
- Maximum thicknessing width: 310 mm
- Maximum thicknesser depth of cut: 3 mm
- Maximum planing width: 310 mm
- Maximum planer depth of cut: 3 mm
- Motor input: 2.75 kW (single phase)
- Motor output: 2.2 kW (single phase)
- Dust port diameter: 100 mm
- Weight: 202 kg
- Size: W1407 x D745 x H1005 mm
- Sound power level: no load: 98 dB(a), load: 107 dB(a)
- Sound pressure level: no load: 89 dB(a), load: 98 dB(a)
The Record Power PT310-HB is the largest in the range of Planer Thicknessers from Record Power, with a maximum planing/thicknessing width of 310mm (12″) the PT310-HB offers the ability to work with wide boards in a single pass. With 56 TCT cutter heads arranged in a helical format, you can be confident that you will get a fantastic finish on timber run through this machine. With an optional take off table with roller, you can ensure that snipe is at a minimum.
Need something for a smaller workshop but still want helical block? The Record Power PT107-HB is available in 2 options. The 2 spiral block or the 4 spiral block.
Both machines offer a max working width of 265mm (10″) and a rate of 5 metres / minute. A take off table with roller is also available for both machines to reduce the possibility of snipe after working.
Explore the full range of planer thicknessers and other woodworking machinery.
Call us on 01935 822 207 or email [email protected]
Thicknesser feed rate: 7 Metres / Minute Max. thicknessing width: 310 mm Planing table length: 1407 mm Size: W1407 mm x D745 mm x H1005 mm
Cutter block knives: 3 Max. thicknesser depth of cut: 3 mm Motor input P1: 2750 W
Cutter block diameter: 70 mm Max. planing width: 310 mm Motor output P2: 2200 W
Max. thicknessing height: 230 mm Max. planer depth of cut: 3 mm Weight: 175 kg
2x helix = 26 cutters
4x helix = 44 cutters
As the leading distributor of Record Power in the UK, Yandles ensures you can purchase with complete confidence, offering unparalleled prices and service. We stand behind our commitment to provide the best prices, so much so that if you discover a 'like for like' Record Power Machine offered at a lower price elsewhere, we guarantee to match it! Just reach out to us at (01935 822 207), inform us of the cheaper alternative, and we'll ensure you receive the same unbeatable deal.
Liam Barclay (verified owner) –
Just taken delivery so not used much but seems like an excellent machine. Solid, good quality construction, great finish on milled timber. Was worried about noise as its a home workshop but this is super quiet, quieter than router, can use it without ear defenders so very happy. Great communication and swift delivery from Yandles.
