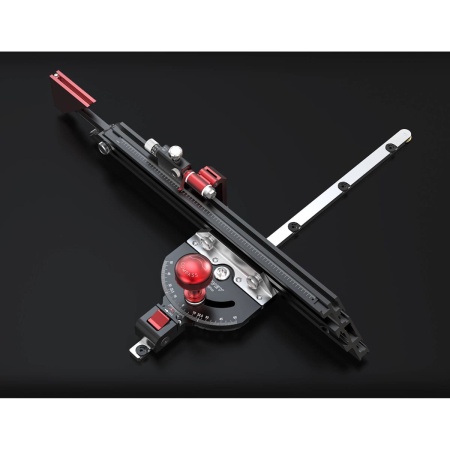

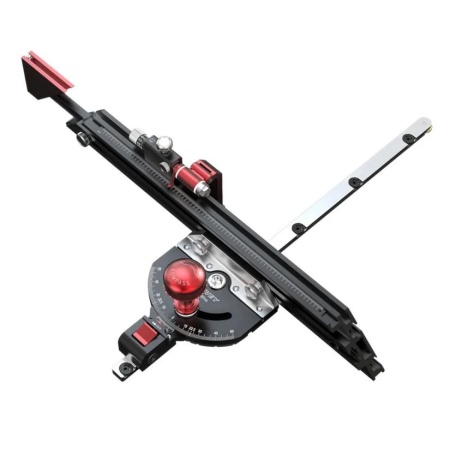

Essential to every table saw or bandsaw owner is an accurate sliding mitre gauge. Harvey engineers designed the COMPASS MG-36Pro Miter Gauge as a perfect companion for their own range of saws. It is rich in features to achieve maximum precision.
- Extended Mitre Bar Length 560mm
- 5 Point Miter Bar Fit Adjustment
- Precision Vernier Scale -60 to +60
- Trigger Lock Press To Change The Angle
- 11 Preset Positive Index Stops
- Manual Angle Setting To With 0.1 Degree Accuracy
- Crosscut Fence 550mm – Extendable To 915mm
- Flip Over Length Stop With Elbow Joint
- Micro-Adjustable In 0.02mm Increments
- Constructed From Premium Grade Materials
- Anodised Aluminium, Stainless Steel & Brass (No Plastic)
Compatible with any saw which has a T-slot 19mm x 25mm (3/4″ x 1″)
- Unbeatable Miter Angular Accuracy:
Unlike any other mitre gauge on the market today, the Compass MG-36Pro Miter Gauge achieves precise angular settings by eliminating slops.

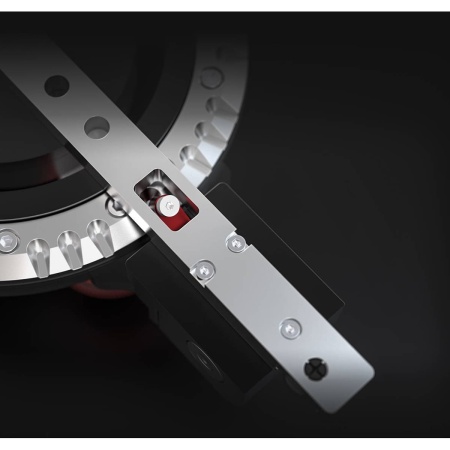

- Eliminating the slop during angle position:

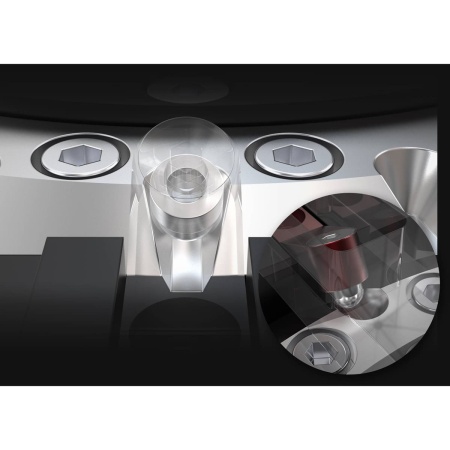

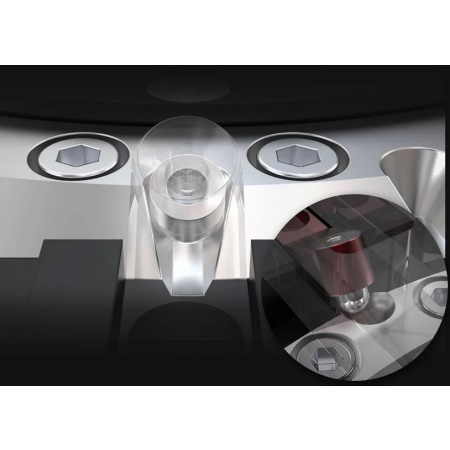

This is achieved with a positive index system consisting of tapered grooves and a spherical locking pin.
The heart of the Compass MG-36Pro Mitre Gauge is our unique, positive lock index system. With the use of only two fingers, the tension that keeps the spherical locking pin in place is released allowing the mitre gauge to pivot, and index, to all of the most common mitre angles. The Compass MG-36Pro allows for quick and positive adjustments with 0.1 degrees! Of course, the MG-36Pro can be manually set to any other angle you desire.
- Extended Mitre Bar:

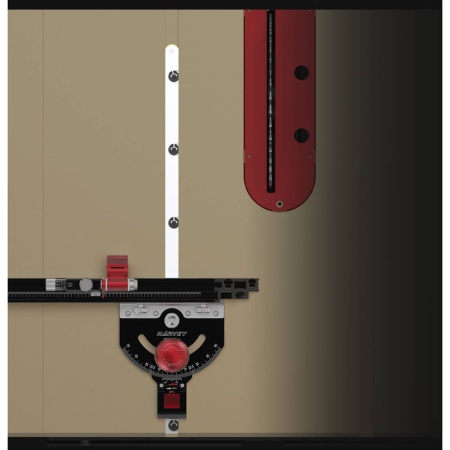

The length of the mitre bar has been extended to 22” (560mm), providing better support for crosscut guides.

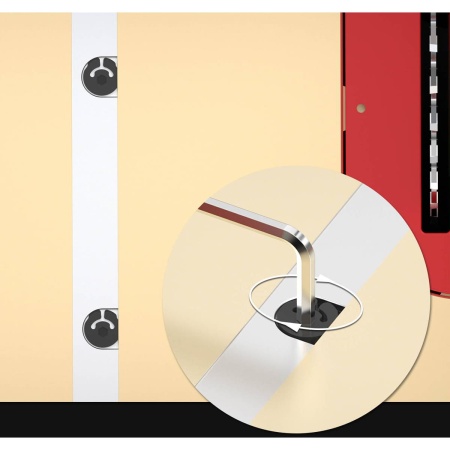

- The Newly Designed Mitre Bar Fitness Adjustment Mechanism

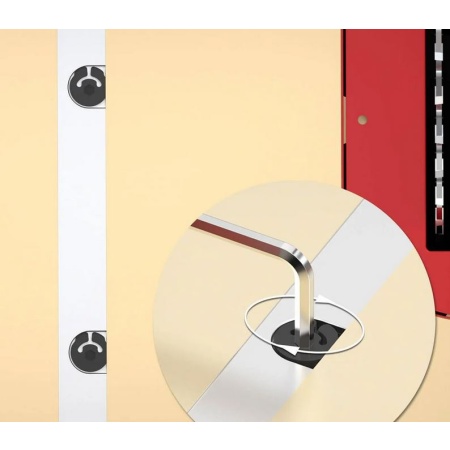

This Newly Designed Miter Bar Fitness Adjustment Mechanism is equipped with five eccentric blocks, effectively eliminating the gap between the miter bar and the T-slot, making adjustments more convenient and sliding smoother.

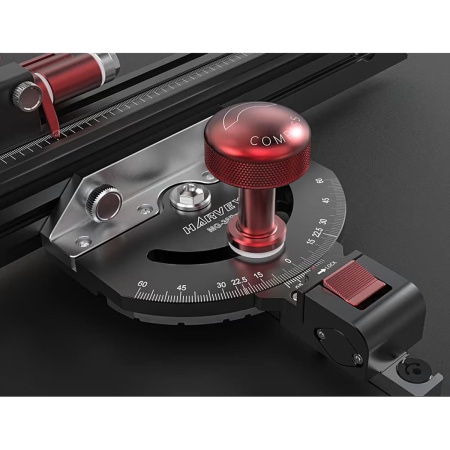

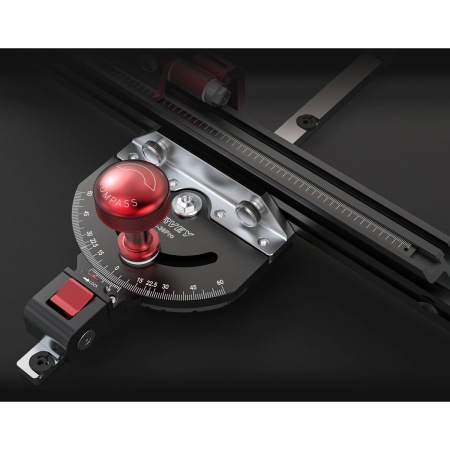

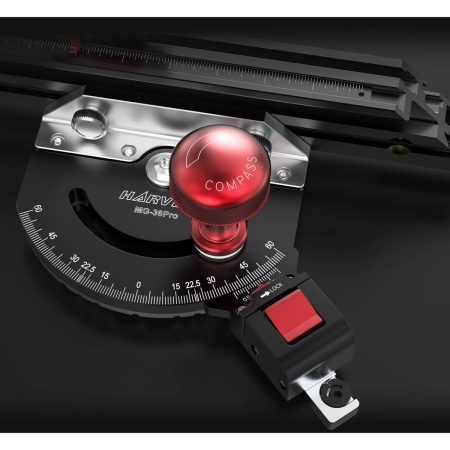

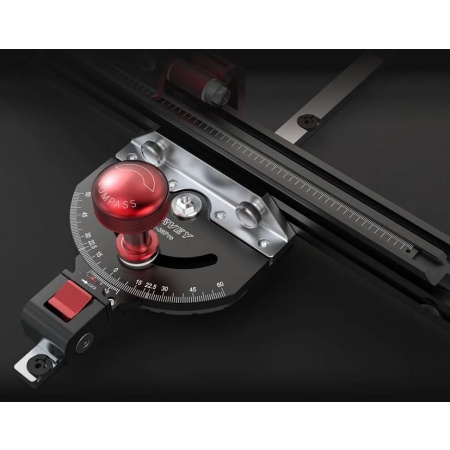

- Positive Stops and Smart Trigger Lock, adding A New Precision Vernier Scale:
COMPASS MG-36Pro has 11 Positive Stops: ±60°, ±45°, ±30°, ±22.5°, ±15° and 0°.

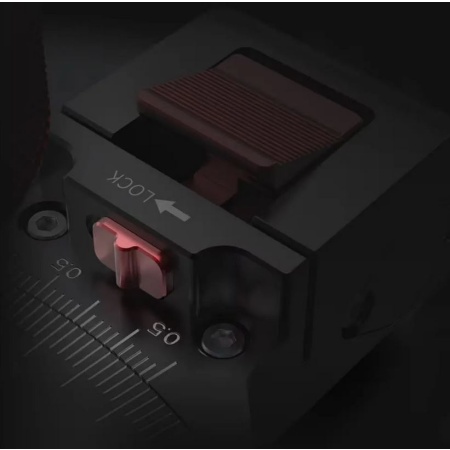

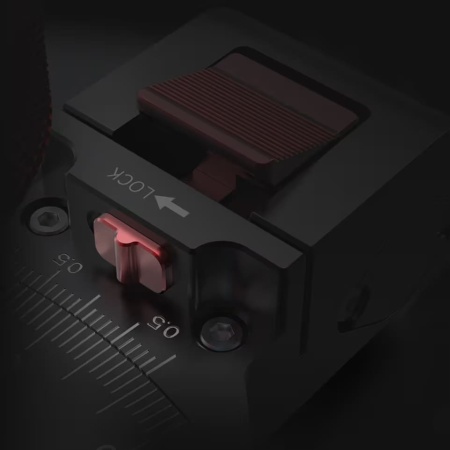

The Indexing Pin with the Smart Trigger Lock is released by pressing the button with two fingers. It is fast, accurate and easy!

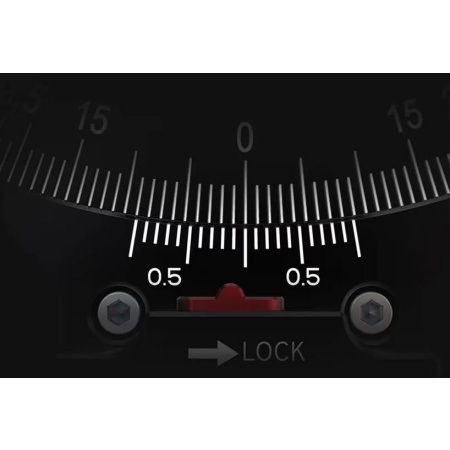

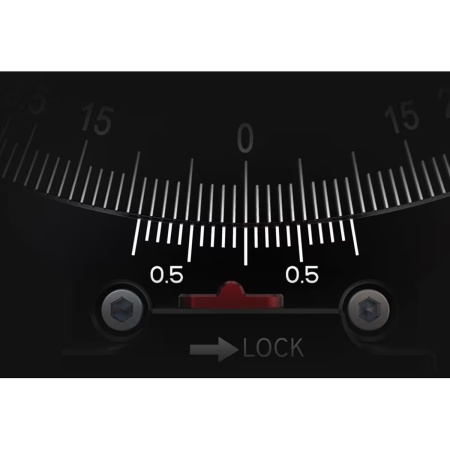

A new precision vernier scale has been added to improve the accuracy of readings, achieving a precision of 0.1 degrees.

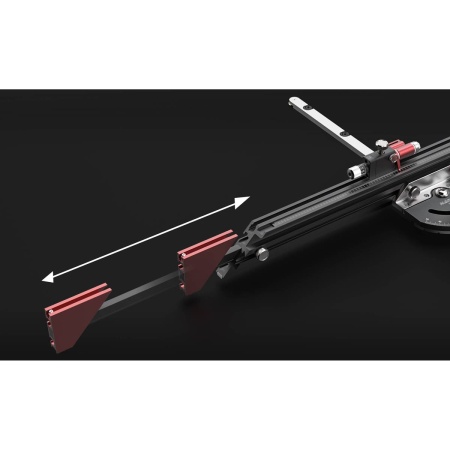

- 915mm Crosscutting Fence

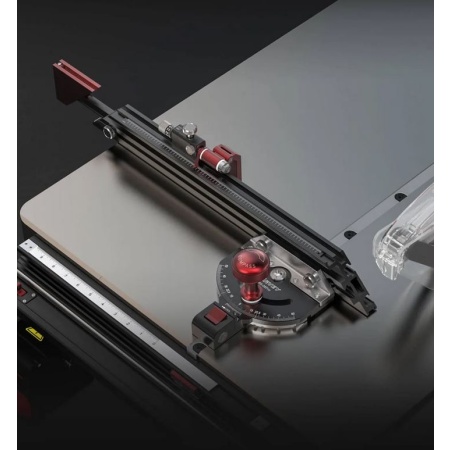

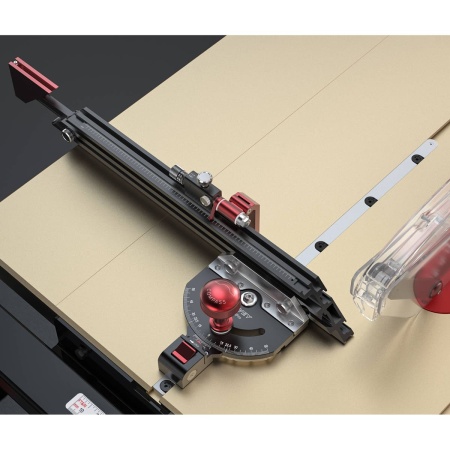

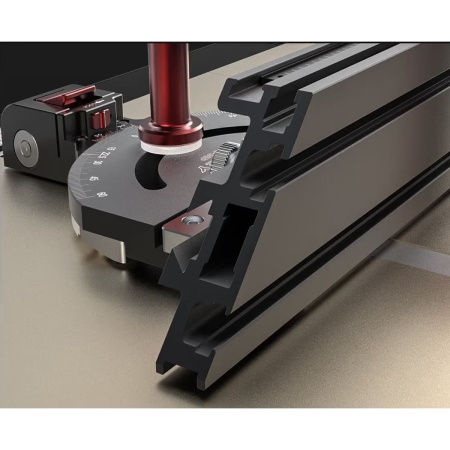

The standard heavy-duty, black anodized crosscutting fence of the MG-36Pro is a CNC-milled extrusion of 6061-T6 aluminium. It is the base for the micro-adjustable flip stop.
-

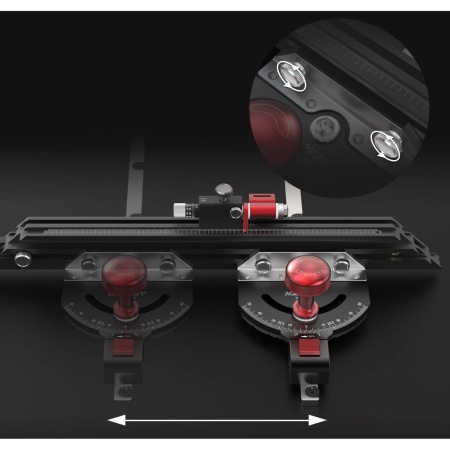

- The whole fence can be moved smoothly and easily by loosening the two knobs.
- It can be extended to 915mm in length, which is the longest length capacity on the market.
- The live center is now made of carbon alloy tool steel.
- A precision scale is equipped on the top of the fence.

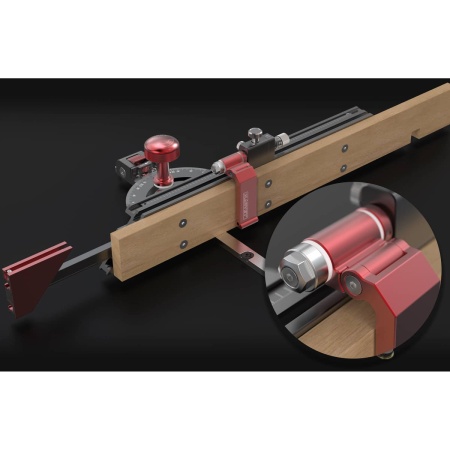

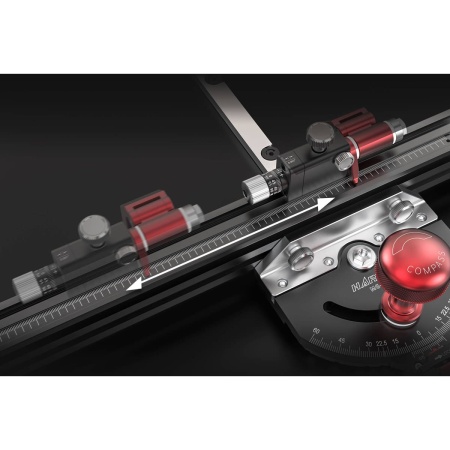

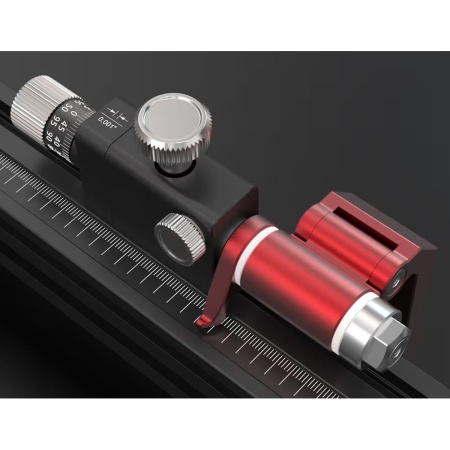

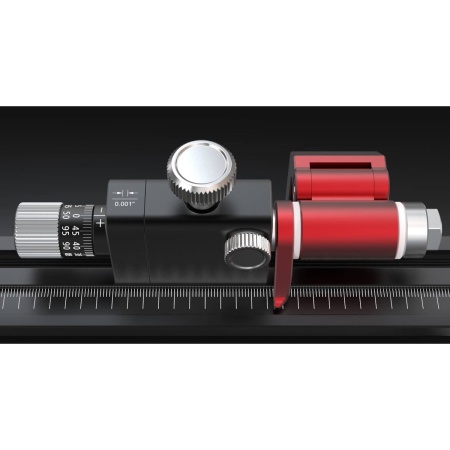

- Micro-Adjustable Flip Stop with Unique Elbow Joint:

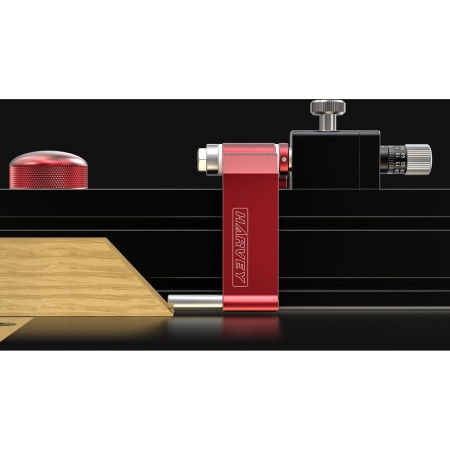

The MG-36Pro Flip Stop Assembly slides in a groove on top of the fence and can be locked anywhere you choose. An elbow joint has been added to the flip stop, allowing for adjustment of the flip stop’s position when installing a subfence, ensuring a gap-free fit between the flip stop and the subfence. For stock without square faces to the table, you can index on the bevel utilizing the Brass Locating Pin. Once locked in place, you can make micro-adjustments in 0.001″ (0.02mm) increments. All graduations are laser etched. Through a redesign, the locking knob on the Flip Stop Assembly has been strategically placed at the centre of the entire assembly, greatly boosting the overall stability of the assembly while making adjustments.
- Premium Materials and Craftmanship:
The Compass MG-36Pro is designed with longevity in mind. All parts are CNC machined, all aluminium parts are anodized and the remaining components are either made from stainless steel or brass.
The combination of accurately milled components, proper materials and finish ensures that the MG-36Pro will remain rust-free.
The added rigidity and extraordinary locking strength will provide years of accurate results.
