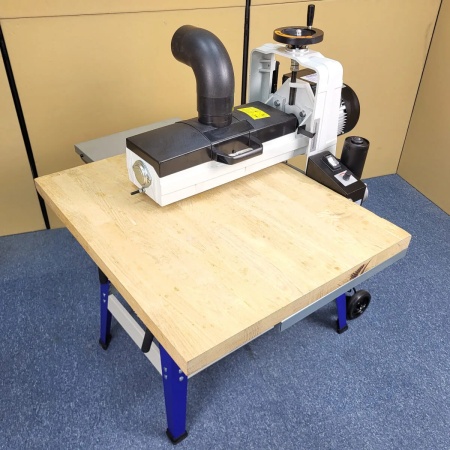

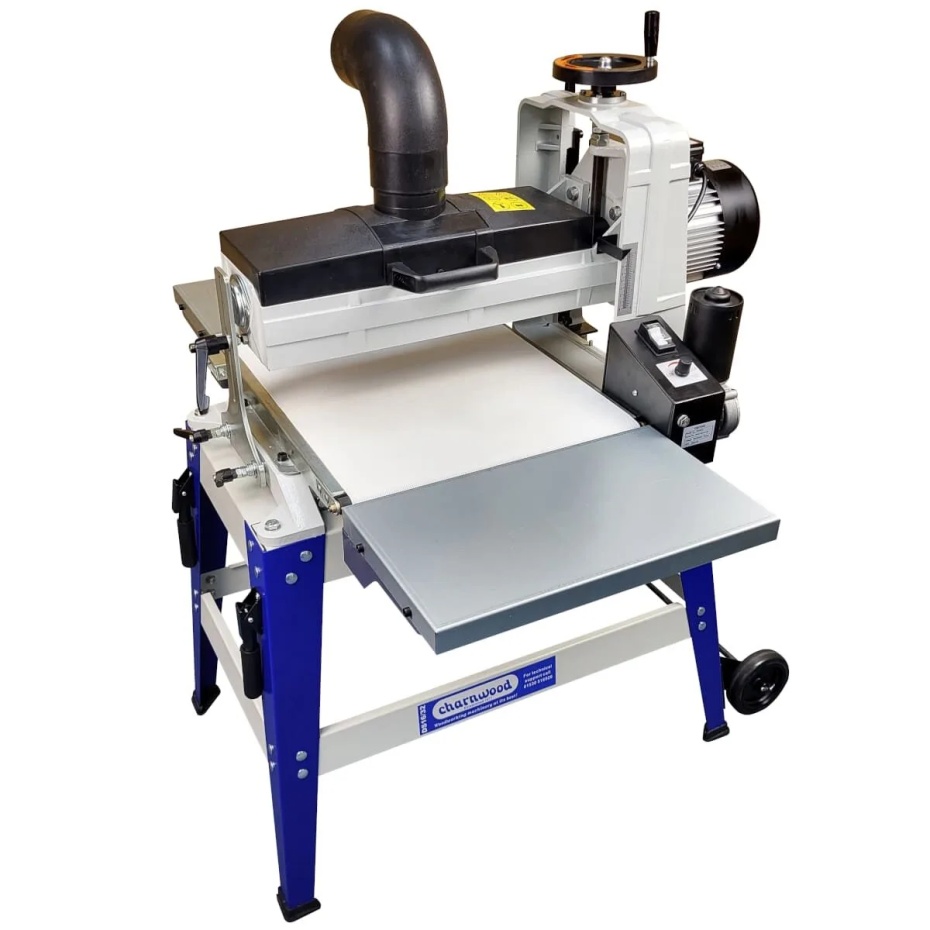

DS16/32 Drum Sander 16″ Width Capacity
After planing timber, the drum sander can be used to complete the finishing process. The work piece is fed through the sander on a powered conveyor belt with a variable speed control to achieve an optimum finish on all timber types.
Capacity

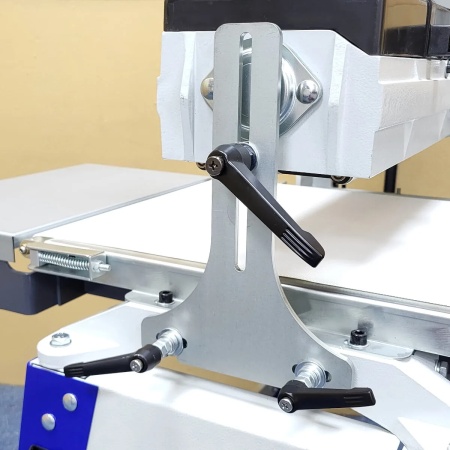

The single pass capacity of the machine is 405mm (16″). However, by removing the side plate (which is fitted with a quick removal mechanism) the work piece can be fed through the now open end of the sander giving a capacity of up to 810mm (32″) by making 2 passes.

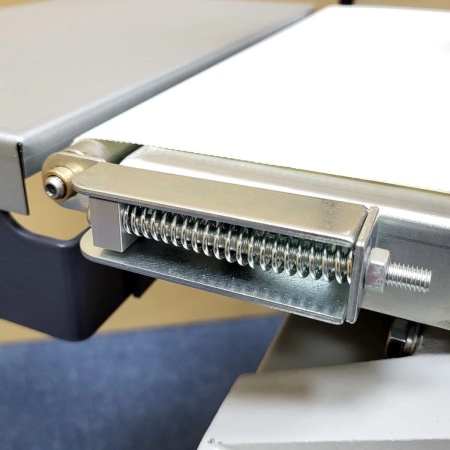

Infeed/Outfeed
Extension beds on each end of the conveyor belt increase support to the work piece and allow longer lengths of board to be sanded by one person. Perfect for upcycling old floor boards and scaffold planks.
Drum Adjustment
The height of the sanding drum is adjusted using a large hand wheel and the position read off the scale, which is graduated in both millimetres and inches.

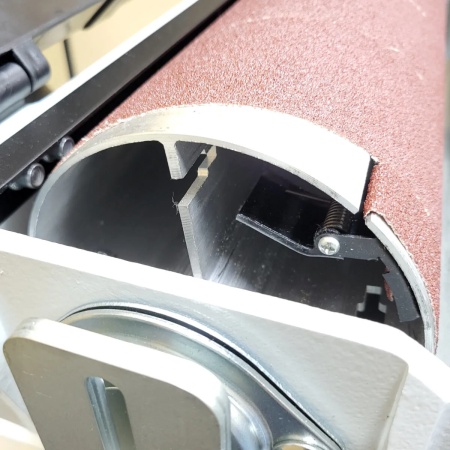

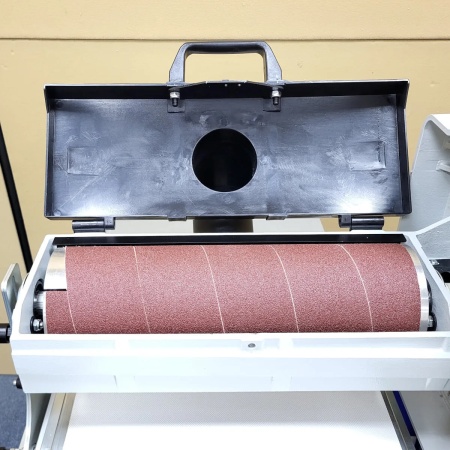

Replacing the sandpaper wrap
Changing the sandpaper wrap is a simple task which requires no tools. Our sanding wraps are pre-cut, with a taper at each end, which is clamped into opposite ends of the drum. If you are using a sandpaper roll, you will need to make a template and cut the tapers before fitting.
Moving the machine

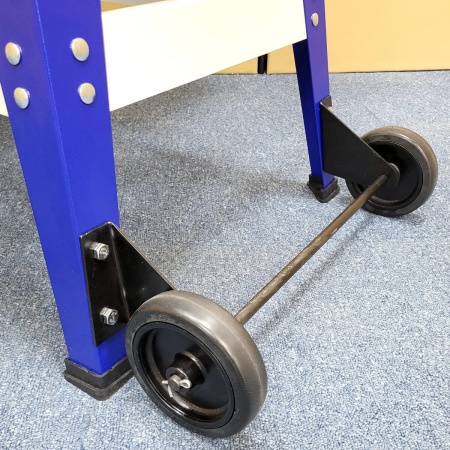

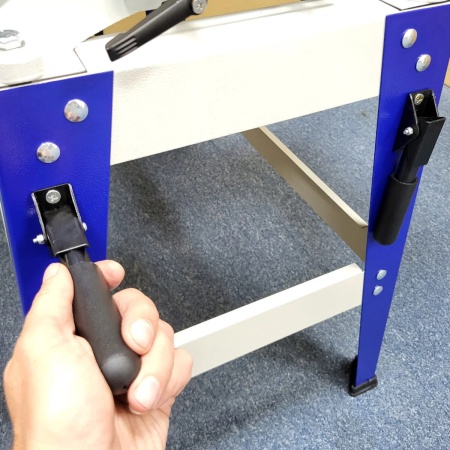

Mobility is no problem thanks to the wheels and lifting handles provided.

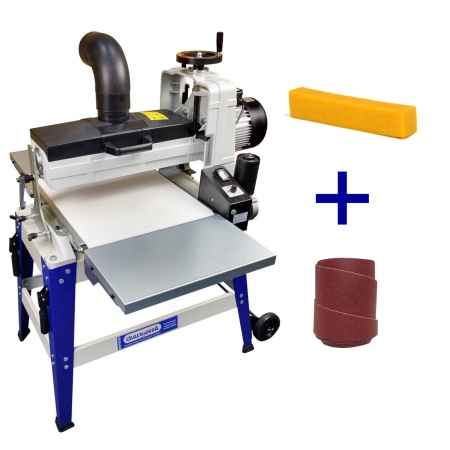

Supplied with a fitted 80 grit sanding wrap, floor stand, wheels & lifting handles, dust port elbow, 2.0m cable and UK 3 pin plug.
We recommend wearing a face mask or respirator during all sanding operations, even if a dust extraction system is in place. Don’t take chances with your health.
- 16″ Sanding Width in a Single Pass
- 32″ Sanding Width using 2 Passes
- Variable Speed Feed Conveyor
- Extension Beds Included
- Floor Stand Included
- Wheel Kit Included
