Laguna 14/12 14″ Bandsaw With Ceramic Guides 240v 1.75HP

SKU: Lag14-12 Category:
(2 customer reviews)
Laguna 14|12 240v 1.75HP 14" Bandsaw With Ceramic Guides
Manual

This product is currently out of stock and unavailable.

We are pleased to be introducing this multi award winning large 12″ depth of cut bandsaw into Europe. Laguna’s experienced designers have produced a bandsaw that we are sure will be a ‘go to’ machine in most joinery shops and high end DIY home workshops.
These ‘high end’ features include a pyramid shaped spine that minimises any frame distortion when the blade is fully tensioned, ensuring cutting accuracy.

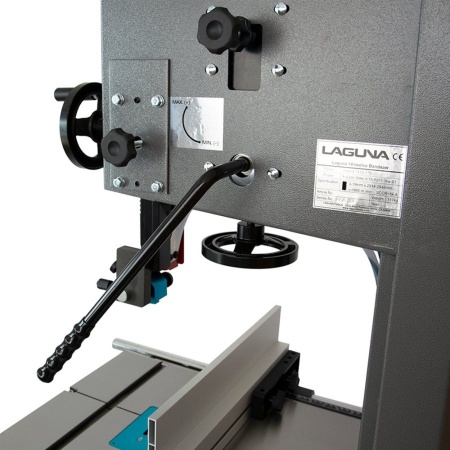

The 1 ¾ HP TEFC braked motor provides adequate power for even the deepest cuts. There is a quick blade release tension lever that makes blade changing faster and this is complimented with an easy to view blade tension scale indicator to easily ensure correct tension set up.

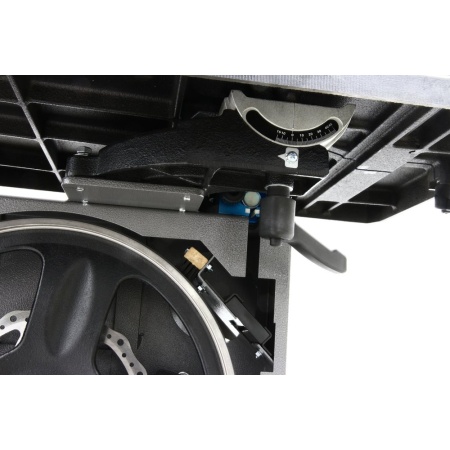

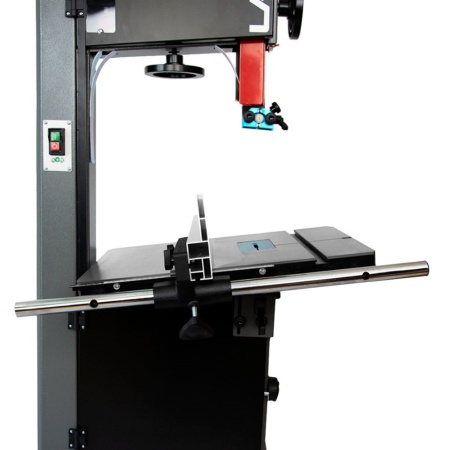

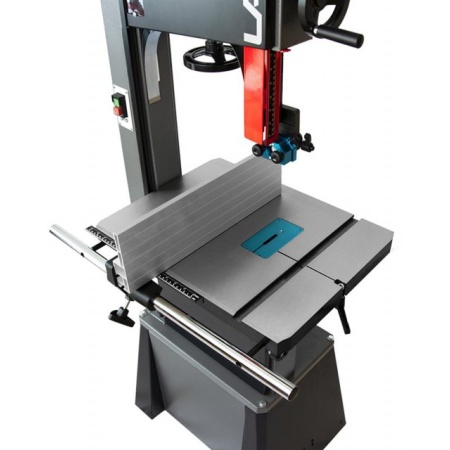

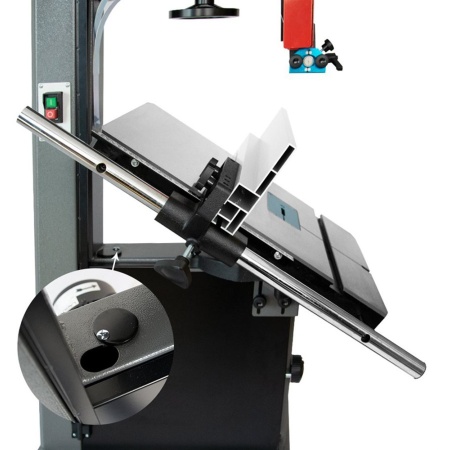

The micro polished 21″ X 16″ cast iron table is mounted onto an oversized Trunion with two locking points that ensure there is a solid surface to work from. The rigid aluminium high/low fence ensures full and precise timber support.
Solid cast iron wheels are electronically / dynamically balanced & fitted with polyurethane one-piece tyres designed to run cooler & last longer than conventional tyres. The worm gear & pinion on the blade guard is ultra-smooth and engineered to have minimum flex even when fully extended – this is a trade mark of Laguna.
Double windows allow you to check both tension & tracking while the machine is running. There is a premium anodized aluminium throatplate with fine adjustment for ultimate accuracy.
And last but certainly not least, the famous ceramic Laguna guides create 10 points of contact on the blade allowing easy set up and highly accurate cuts even when re-sawing deep timber.
This really is a machine that needs to be viewed in the flesh to appreciate the premium build quality and features that have established this saw as a best seller in America and Canada.
*Please note images used are of the current USA model – we will be uploading CE model images soon.

Choose Package:

, ,

Specifications
Motor voltage/HP 230V, 50Hz, 1 3/4HP (P2 = 1.3Kw S1)
Resaw Capacity 305mm (12")
Throat 346mm (13 5/8")
Table cast iron 406.4mm x 546mm (16" x 21 1/2")
Table tilt -7 degrees +45 degrees
Mitre slot 3/8" x 3/4" (9.525mm x 19.05mm)
Table height 965mm (38")
Fly wheel 14" Cast iron
Recommended breaker size 15 Amp
Blade length 2,921mm (115")
Minimum blade width 3mm (1/8")
Maximum blade width 19mm (3/4")
Guides Laguna ceramic above and below table
Machine Dimensions (W x D X H) 800mm x 683mm x 1784mm (31 1/2" x 26 7/8" x 70 1/4")
Stand Footprint (W x D) 642mm x 460mm (25 1/4" x 18 1/8")
Machine Dimensions with mobility kit (W x D) 882mm x 692mm (34 3/4" x 27 1/4")
Stand Footprint with mobility kit (W x D) 843mm x 521mm (33 3/16" x 20 1/2")
Weight gross 125 kg (275 lbs)
Weight net 117 kg (258 lbs)
Package size 581mm x 581mm x 1397mm (22 7/8" x 22 7/8" x 55")
Mobility kit Optional
Industrial work-light Optional

2 reviews for Laguna 14/12 14″ Bandsaw With Ceramic Guides 240v 1.75HP

  1. DavidFyffe (verified owner)

    Great saw very well engineered certainly on the robust side but just what is required. Runs very quietly with plenty power. Setting up the lower guides a little tricky but tilting the table helps. The instructions need the fasteners to be identified as it require a process of ellimination to figure out what goes where. I dont think you would be disapointed great saw great quality. Great service from Yandles, bought the 4 blade and wheel kit package thought this was great value for money.

  2. NigelThompson (verified owner)

    Excellent machine with great build quality and all the power you could need. Easy to set up, good access for maintenance and blade changes.
    The optional mobility kit is a godsend for those of us for whom space is at a premium.All in all I would have no hesitation in recommending this machine,
