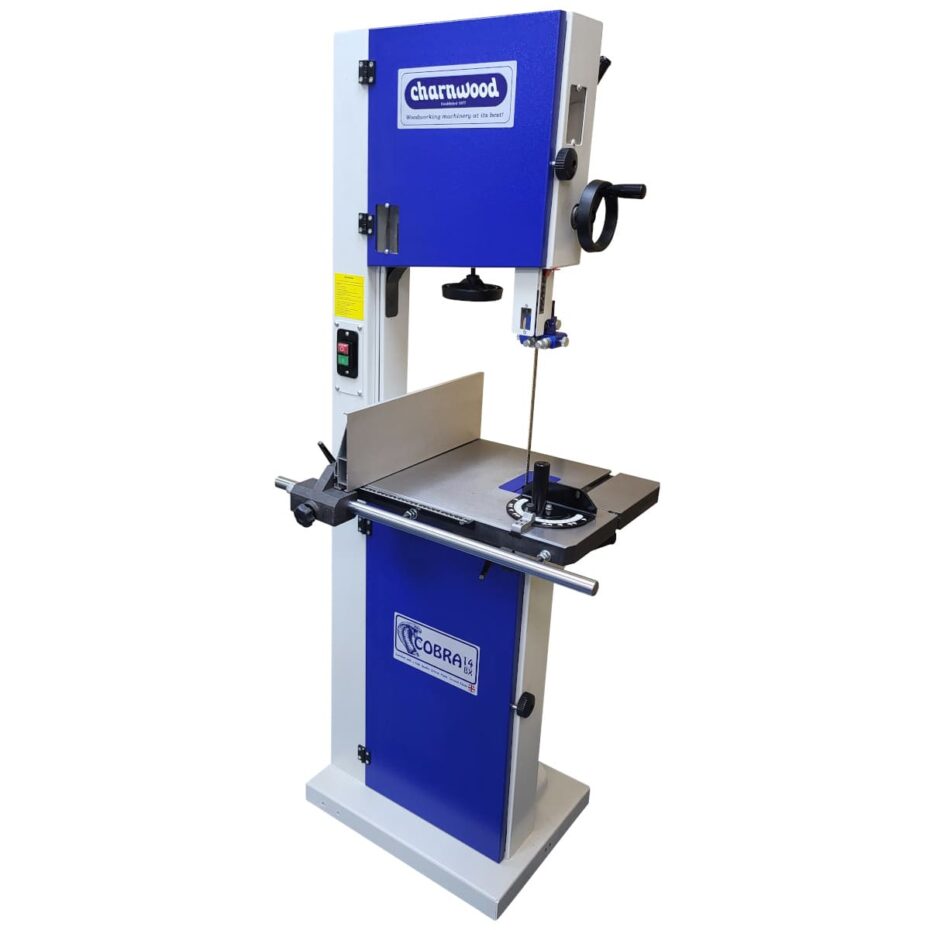

Charnwood 14″ Bandsaw 330mm / 13″ Cutting Depth With Tool Free Blade Guide Adjustment C14BX – 1800w

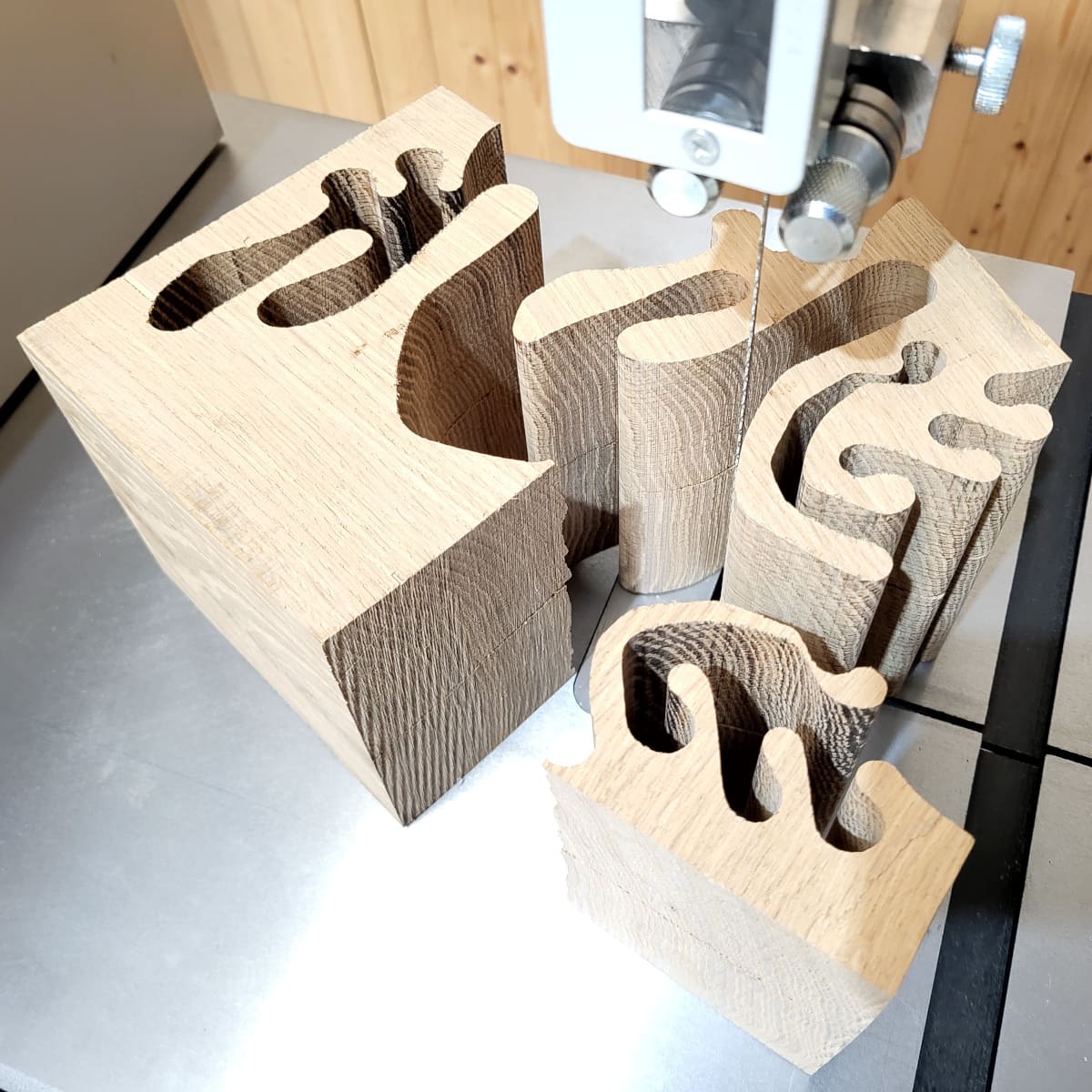

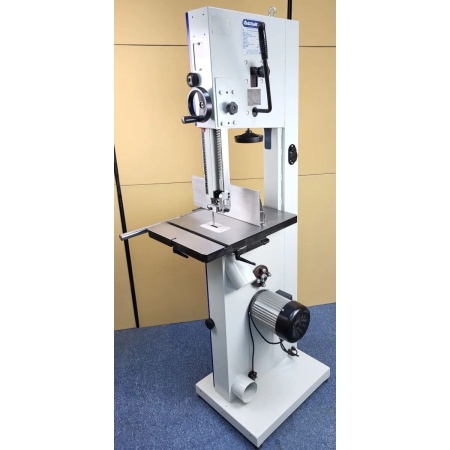

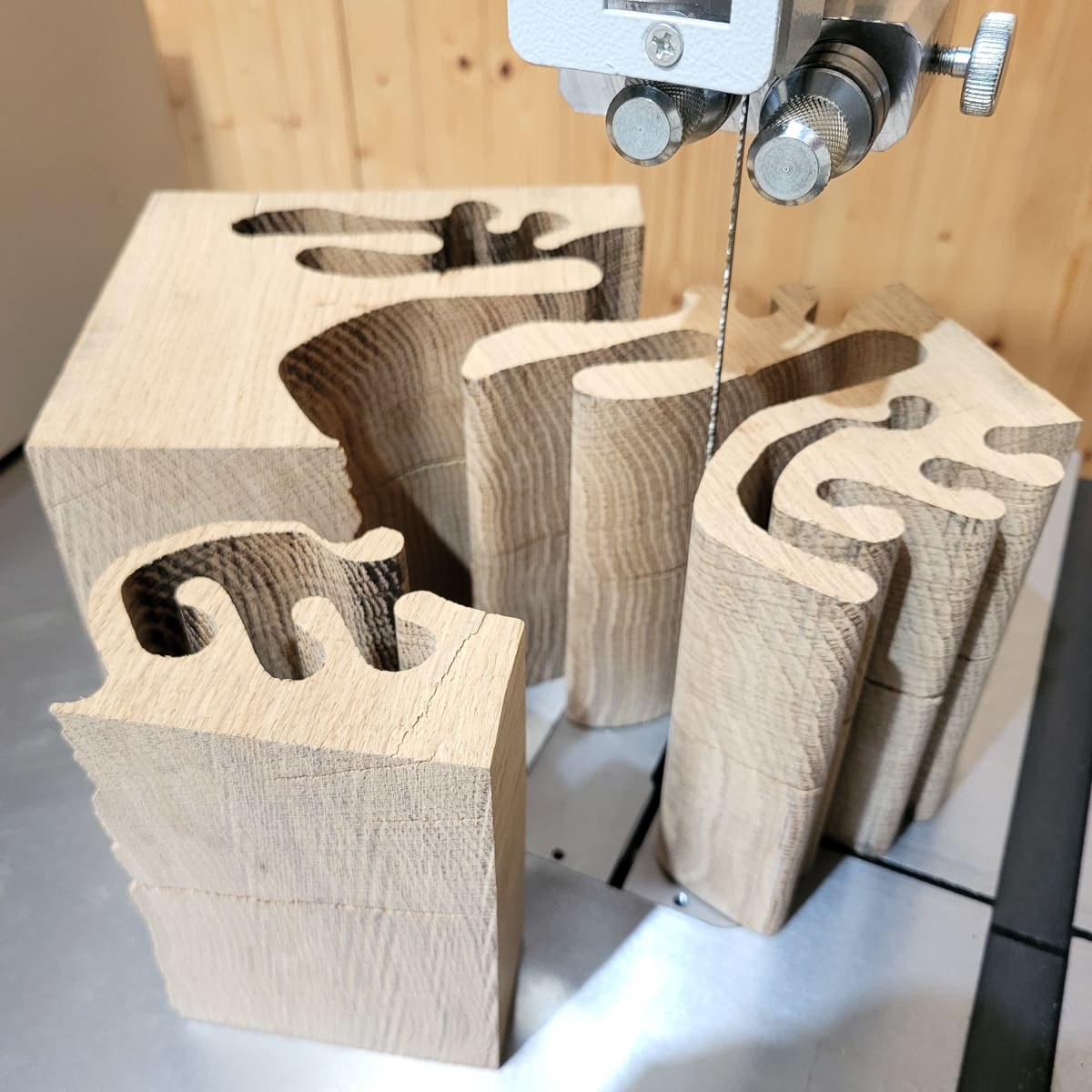

Charnwood C14BX bandsaw with a solid one-piece frame constructed using heavy-gauge steel. Powered by an 1800w induction motor and able to make re-saw cuts of up to 330mm deep! With twin extraction ports as standard, to keep the inside of the cabinet free of dust.

• 330mm (13″) Cutting Depth Capacity
• 310mm (12″) Cutting Width (Throat)

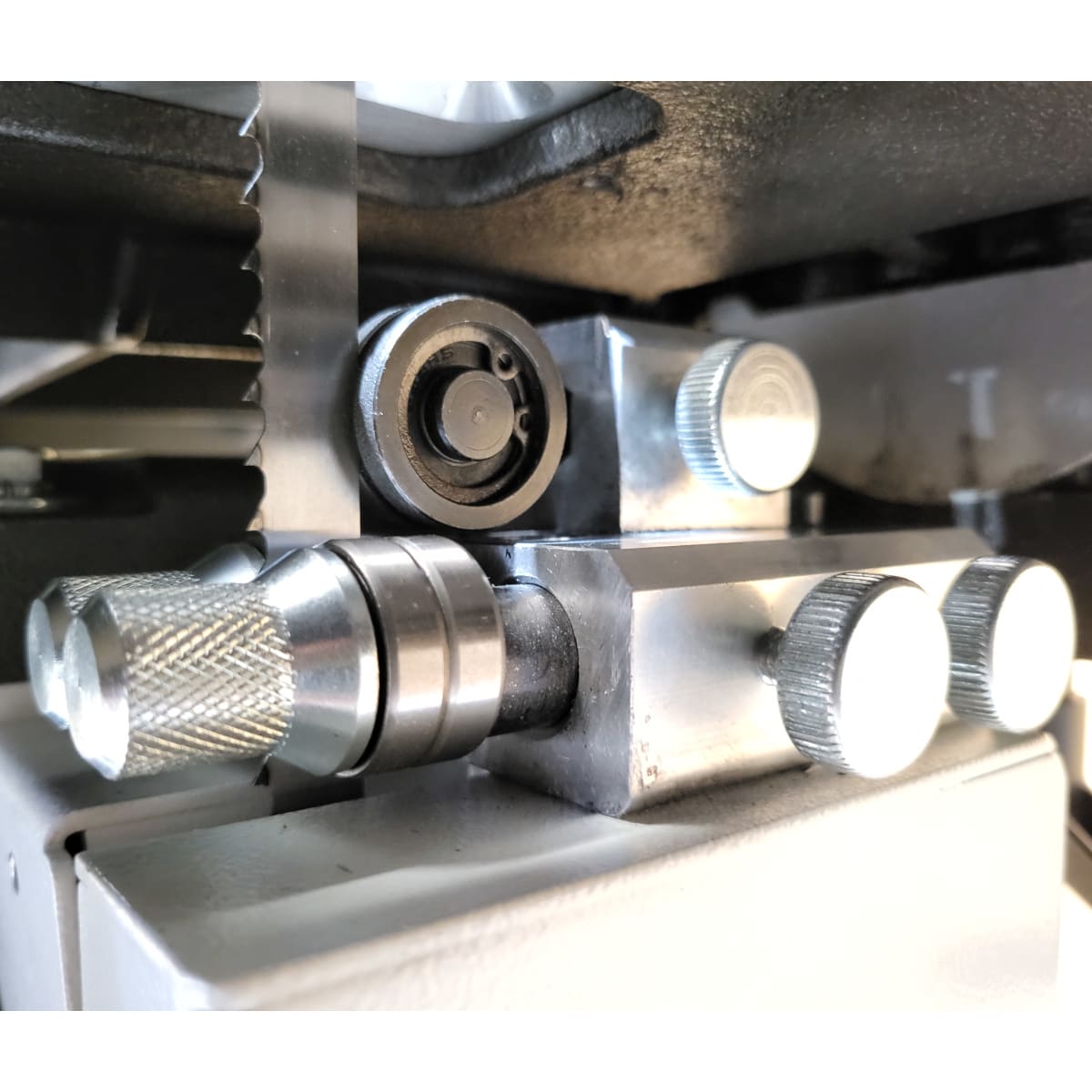

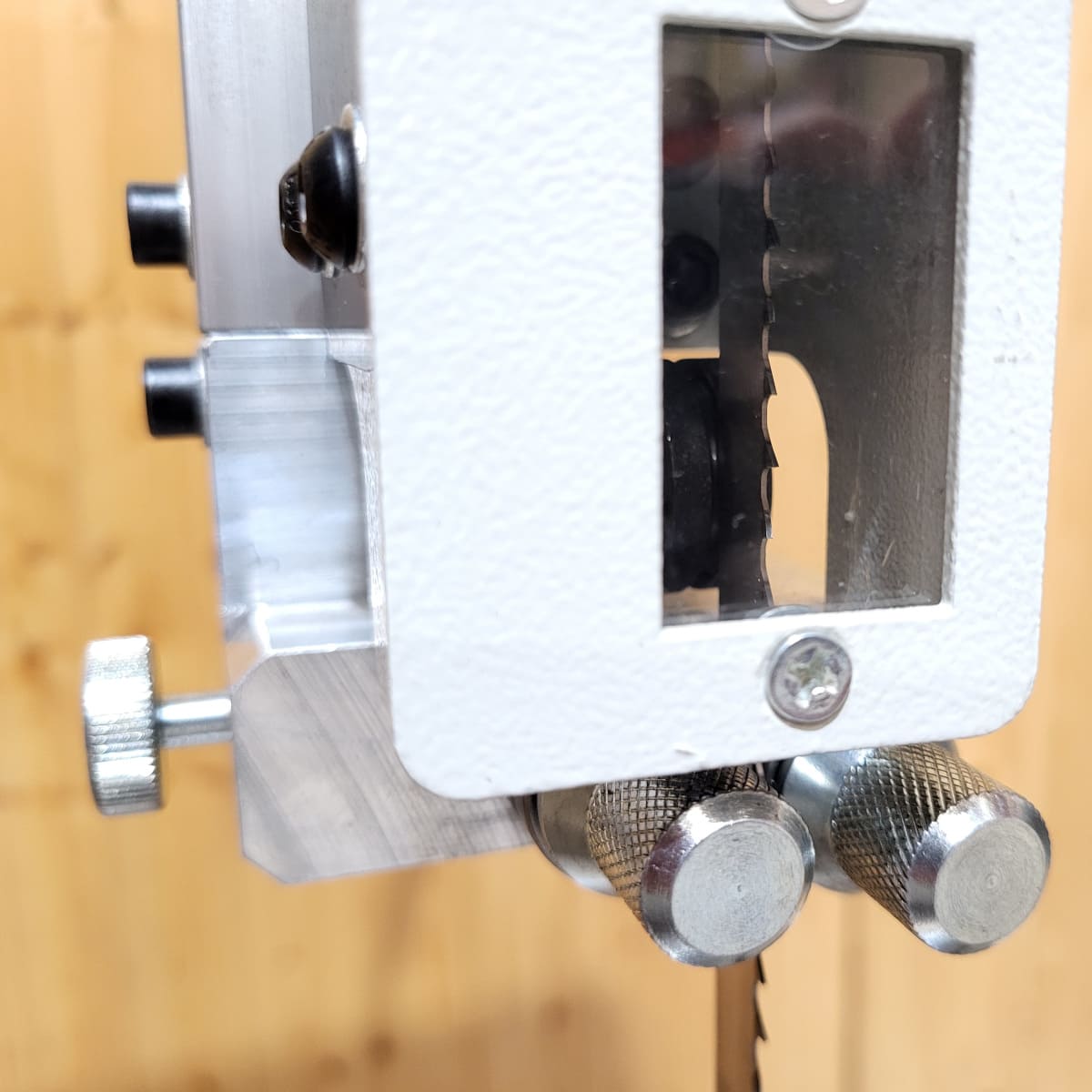

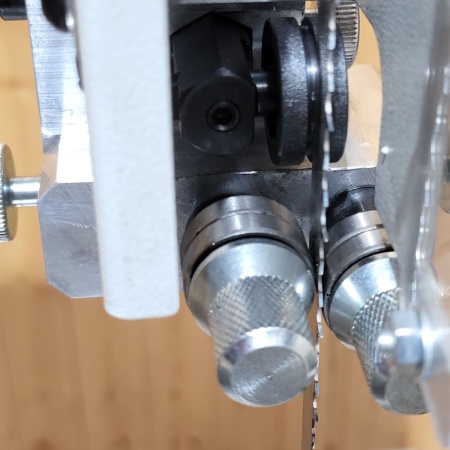

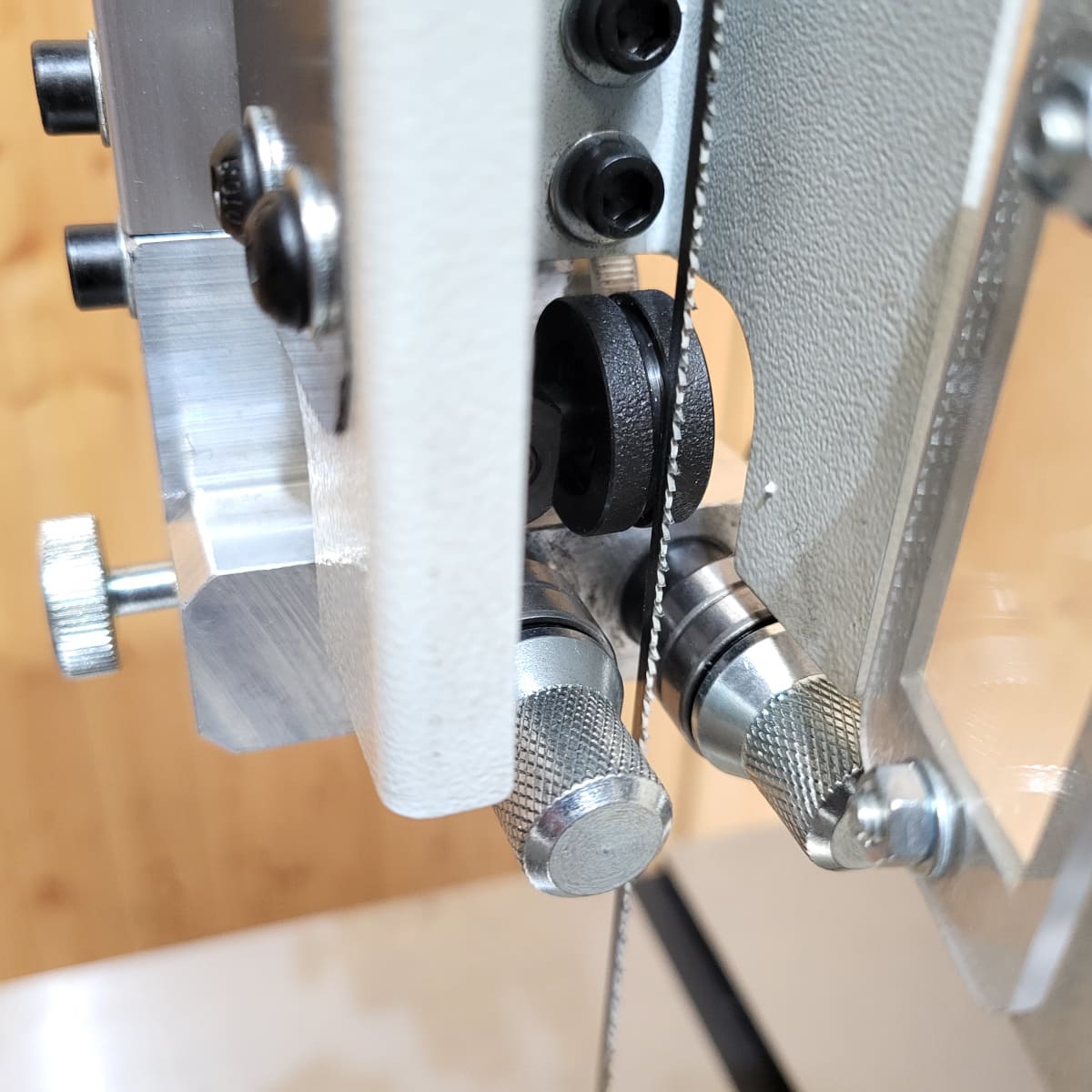

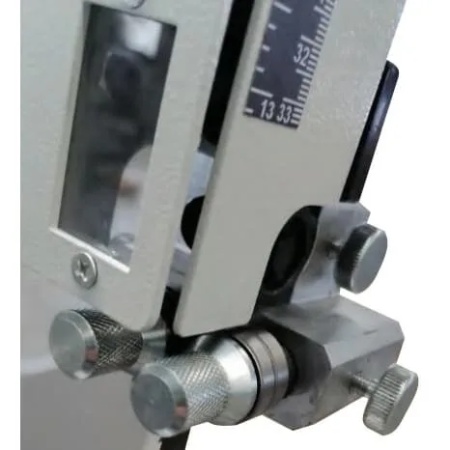

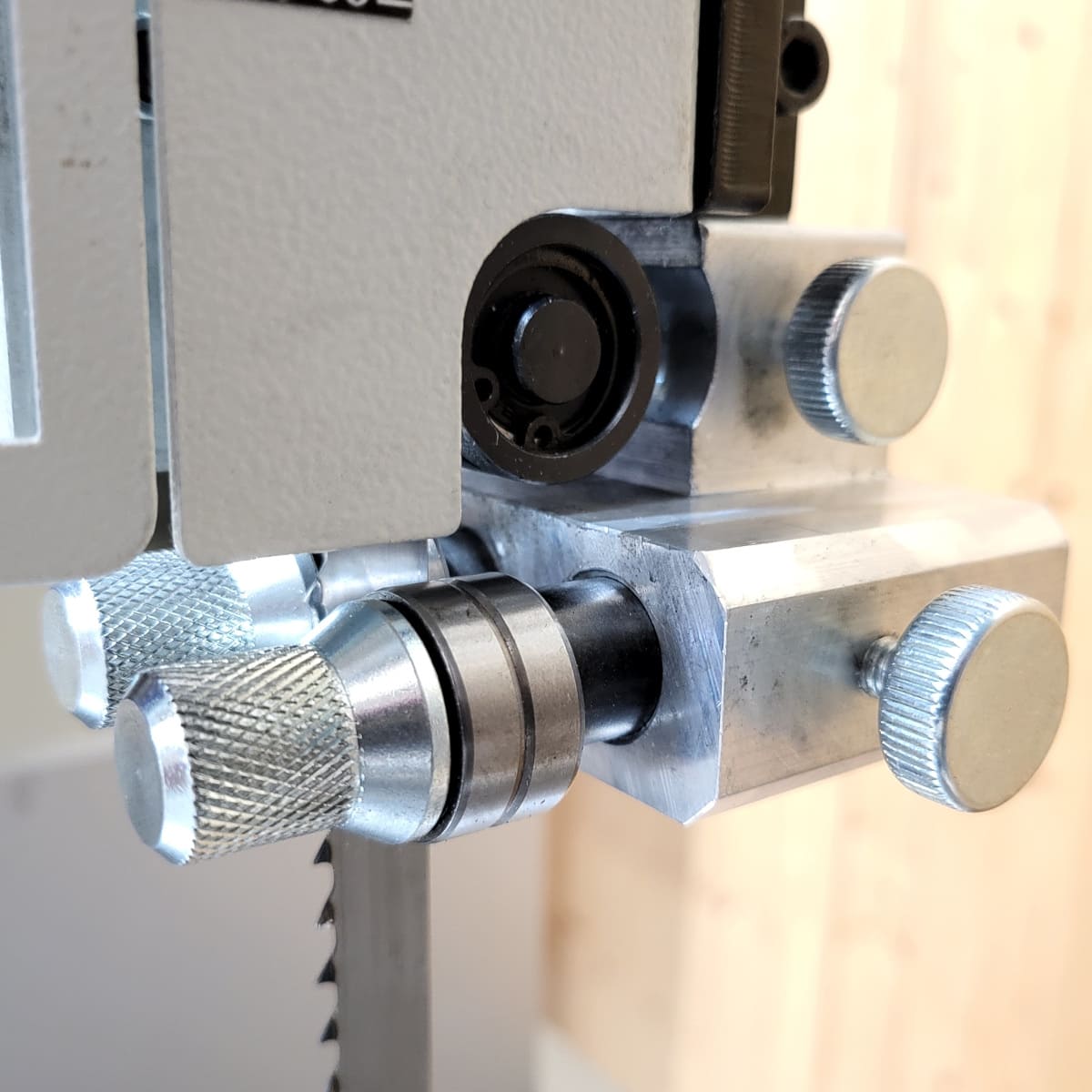

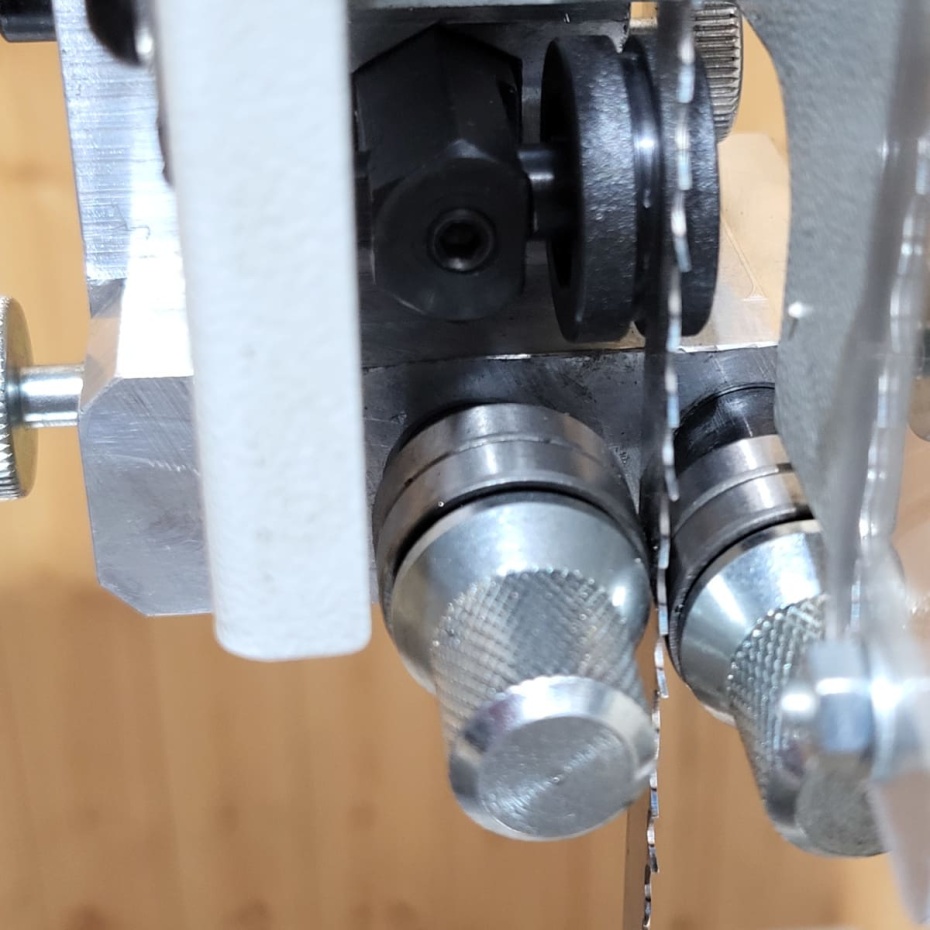

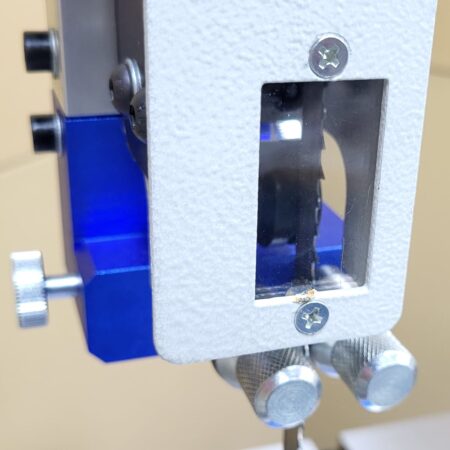

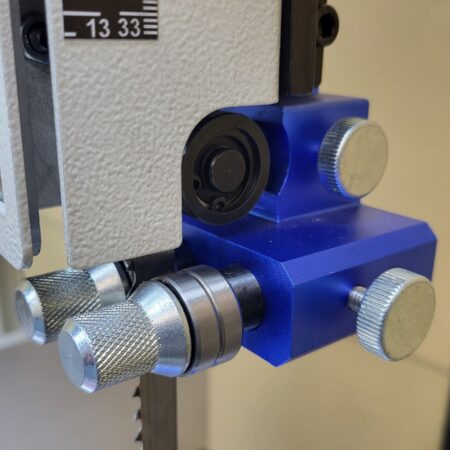

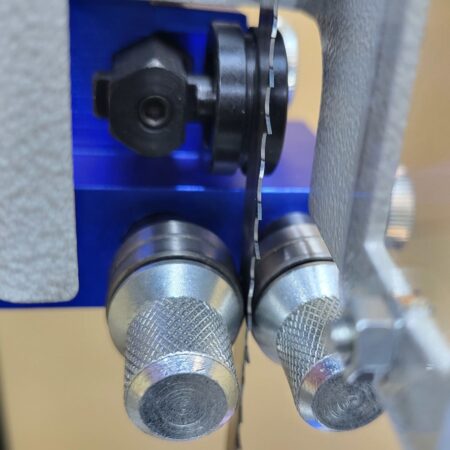

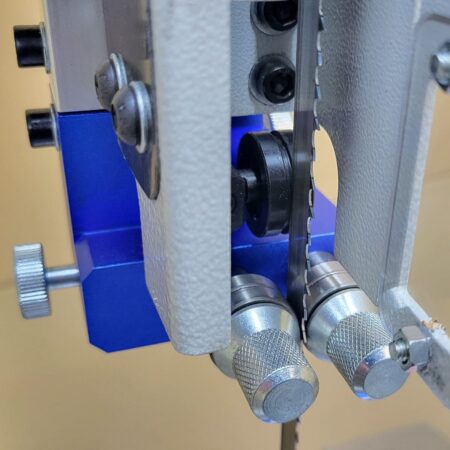

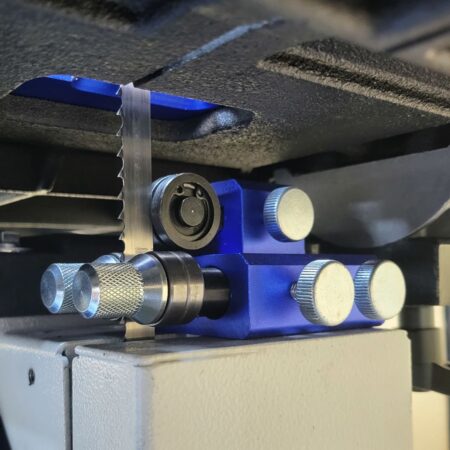

• Blade Guide System With Tool Free Adjustment
• 5 Sealed Bearings Above and Below
• Supplied with High-Quality British-made blade included as standard
• Precision Ground Cast Iron Work Table
• Mitre Guide Included as standard
• Quiet Induction Motor With Internal Brake
• 2 x 100mm (4″) Dust Collection Ports to improve extraction
• Runs On a Standard 13-amp UK Plug
• 5-Year Manufacture Warranty

This NEW bandsaw from Charnwood is modelled on the Laguna 14BX, one of the most popular selling models in North America. We can now offer the same outstanding build quality, with a large cutting capacity & innovative features at a fraction of the cost. Making this an excellent choice for professional joinery shops and serious home workshops.

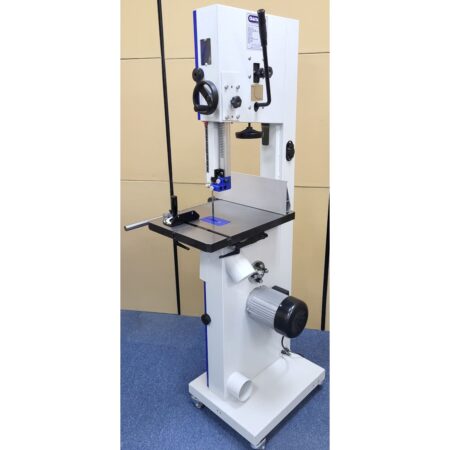

With a one-piece frame construction, it minimises distortion when the blade is fully tensioned. The quiet 1800w induction motor provides enough power to operate at the full 13” cutting depth. An internal brake quickly brings the blade to rest when the stop button is pressed.

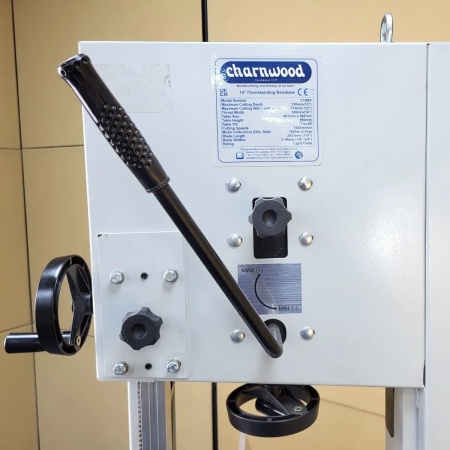

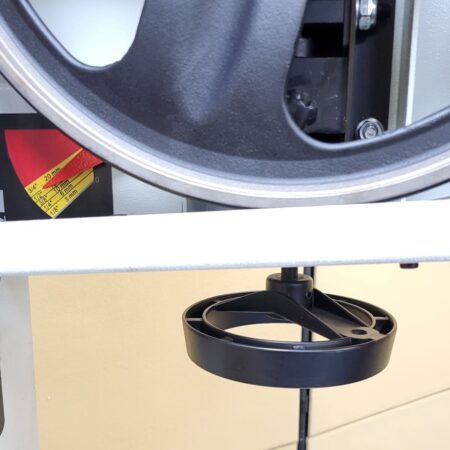

There is a quick-release blade tension lever that makes blade changing fast and this is complemented with an easy-to-view blade tension scale indicator to ensure correct tension setup.

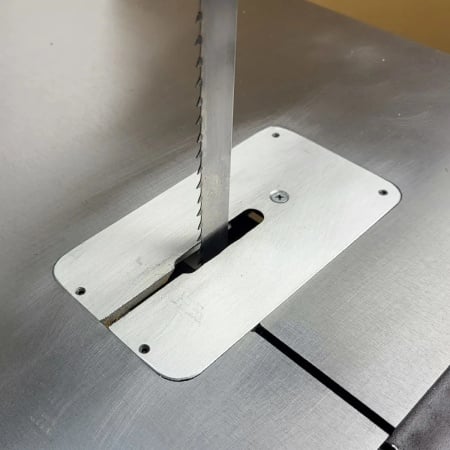

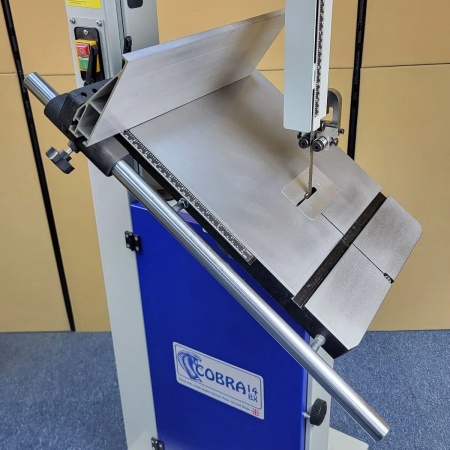

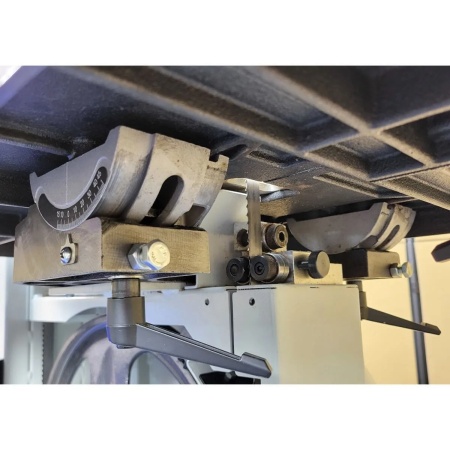

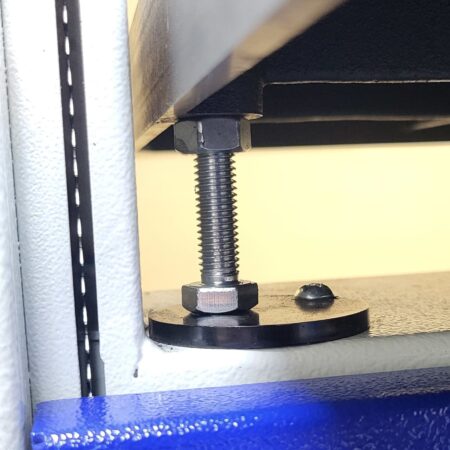

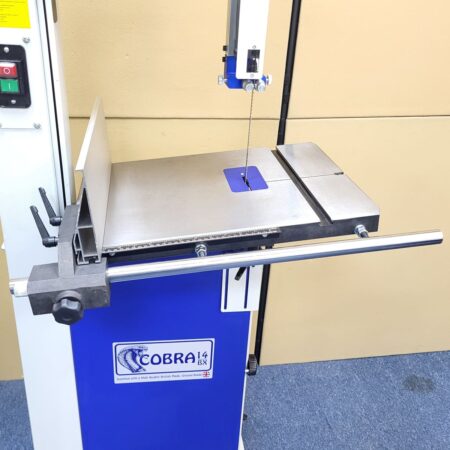

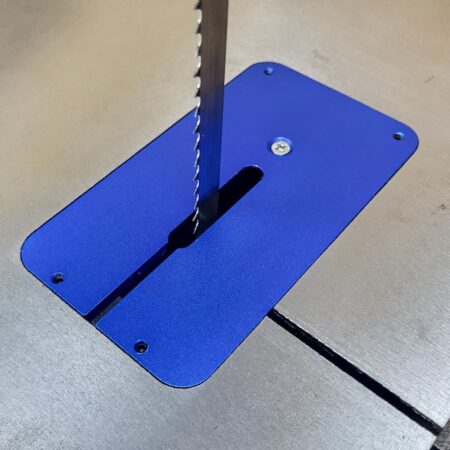

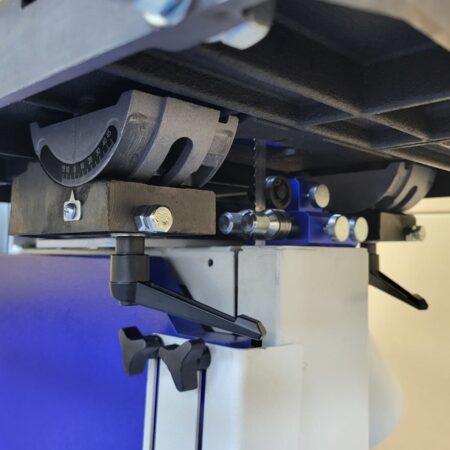

The micro-polished cast iron table is mounted onto an oversized double cast iron trunnion with two locking points that ensure there is a solid surface to work from. The table tilts to 45° with a positive stop at 90°. A flip plate allows reverse tilt up to 7° when required. In the centre of the table is an aluminium throat plate with 4 adjusting screws to ensure a perfect flush fit.

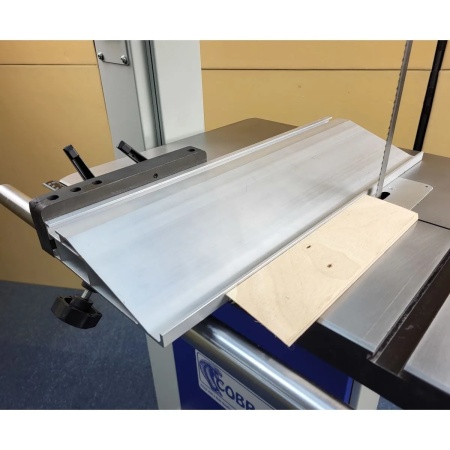

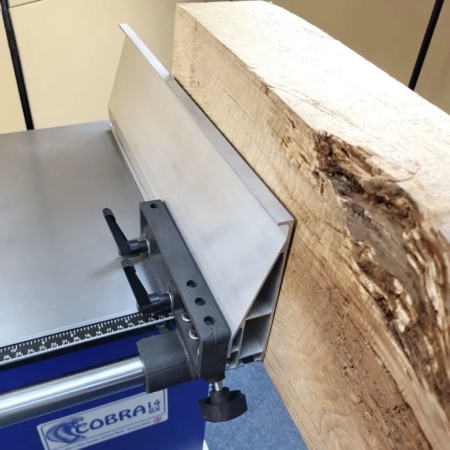

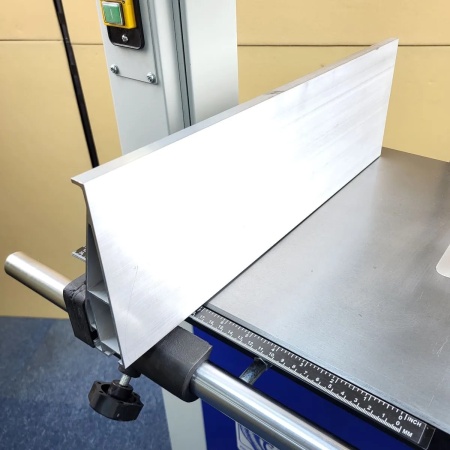

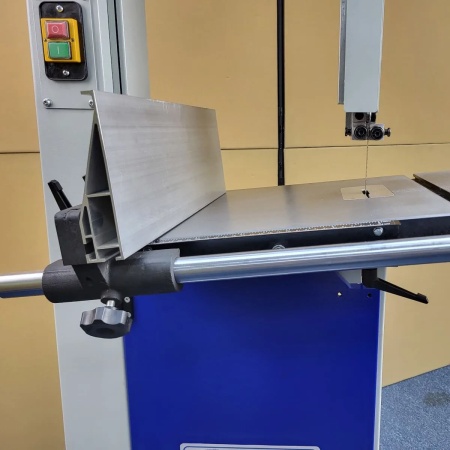

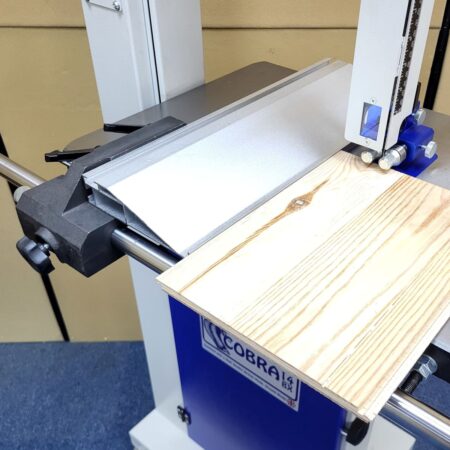

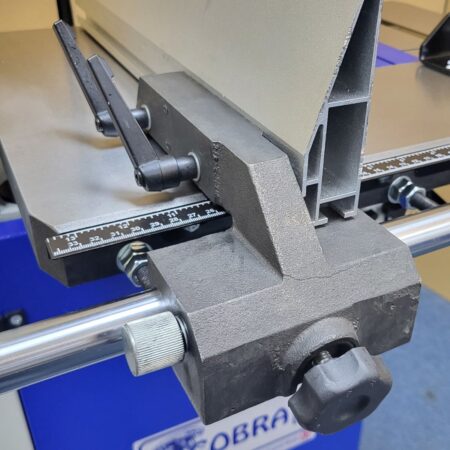

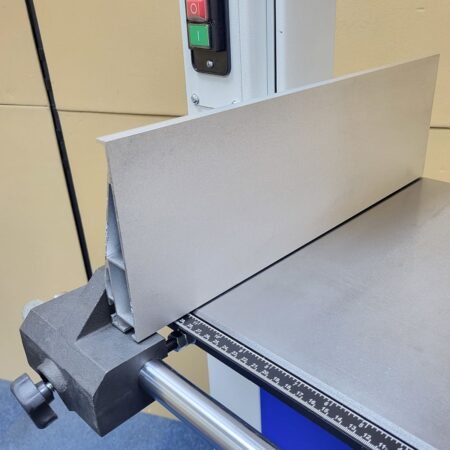

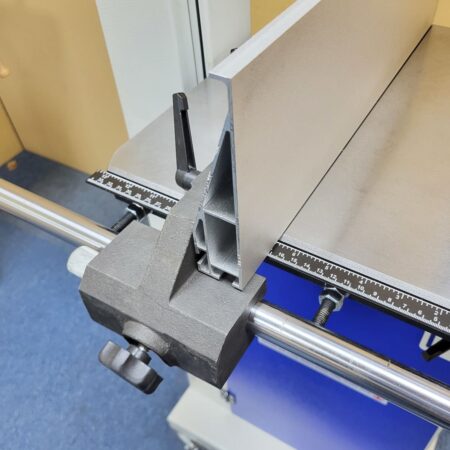

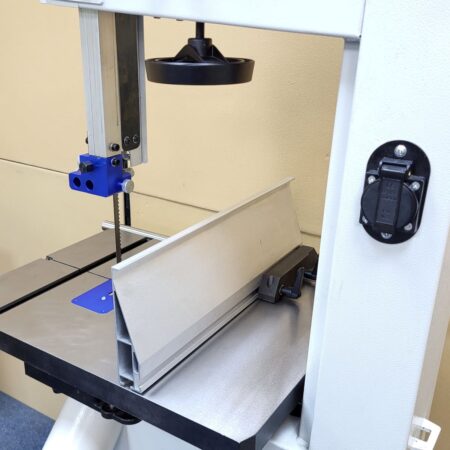

The parallel fence runs smoothly along a polished solid steel bar. The locking screw gives a positive lock which will not let you down and creep during repeat work. The measuring scale is marked in both Imperial & Metric measurements. The rigid aluminium high/low fence can be installed in 2 ways to ensure full and precise timber support for both large and small work pieces.

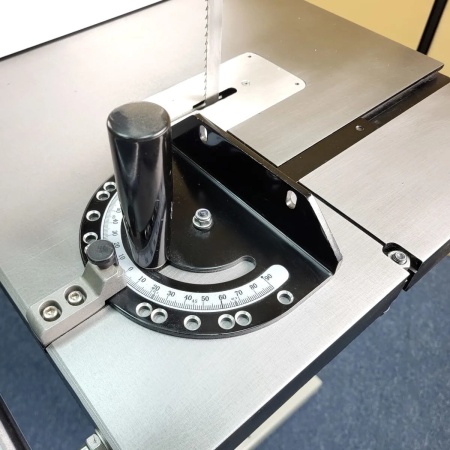

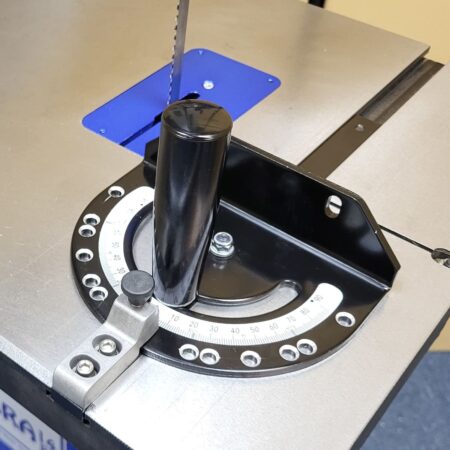

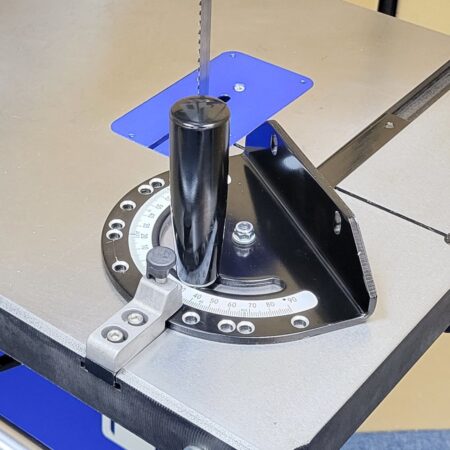

For crosscutting operations, a sliding mitre guide is included as standard. It has an incredible 180-degree rotation with preset stops at: 0, 22.5, 30, 45, 60, 67.5 & 90 degrees each way. The preset plunger can be locked out for dialing in any other angle.

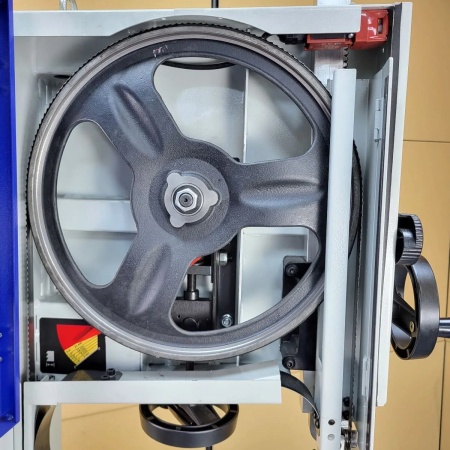

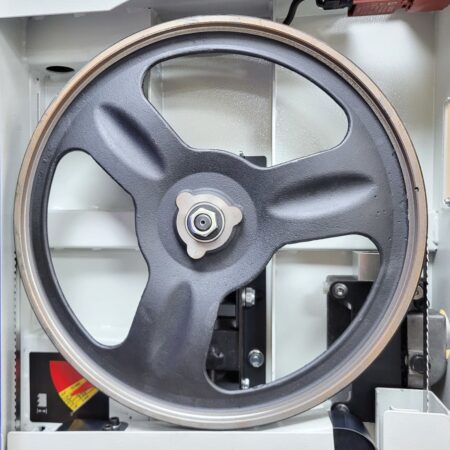

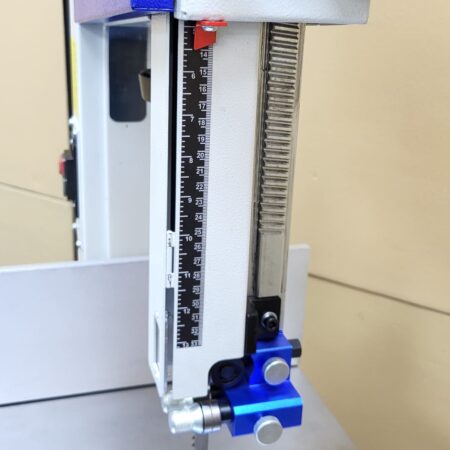

Solid Cast Iron band wheels are electronically / dynamically balanced & fitted with polyurethane one-piece tyres, designed to run cooler & last longer than conventional rubber tyres. The worm gear & pinion on the blade guard is ultra-smooth and engineered to have minimum flex even when fully extended.

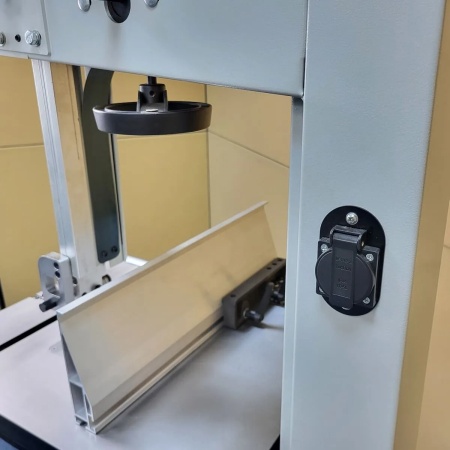

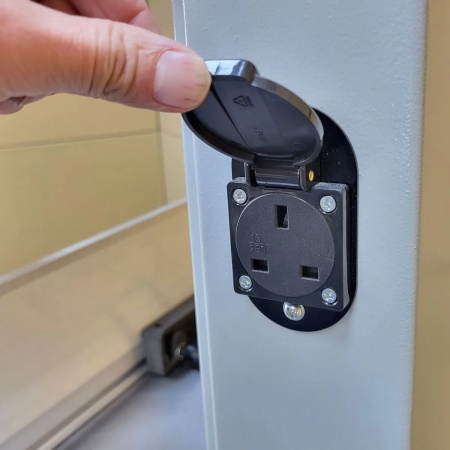

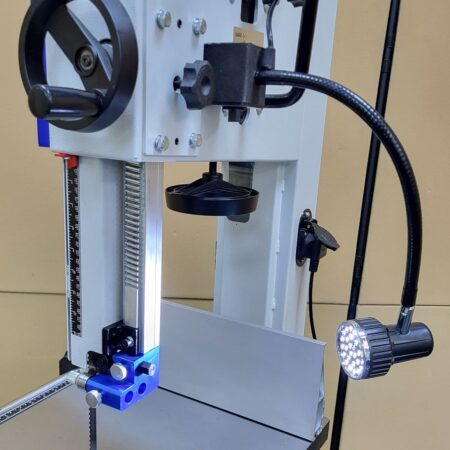

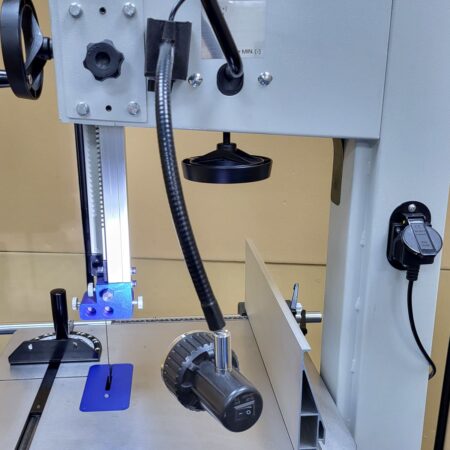

When additional light is required on the job, the C14BX has a built-in power socket which can be used to power an external magnetic light.

Efficient dust extraction is achieved through 2 x 100mm (4″) diameter outlets, one located just underneath the table and one at the base. A deflector sends the dust into the collection port before it comes into contact with the lower wheel and other moving parts – extending their lifespan.

Supplied with:

• British-made 13mm blade
• Push stick
• Mitre guide
• 1.9m cable
• UK 3-pin plug
