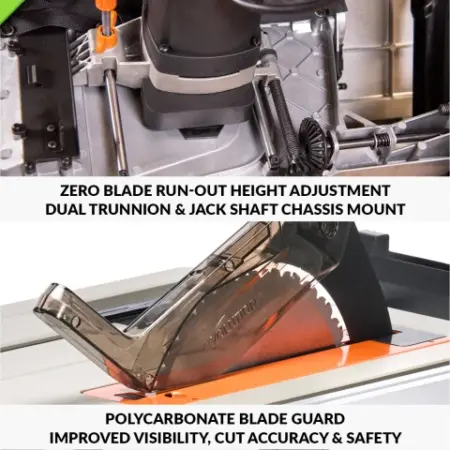

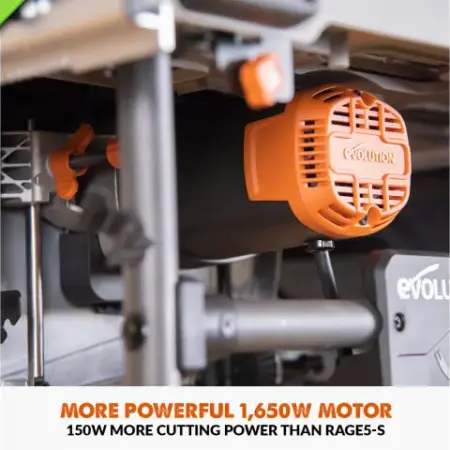

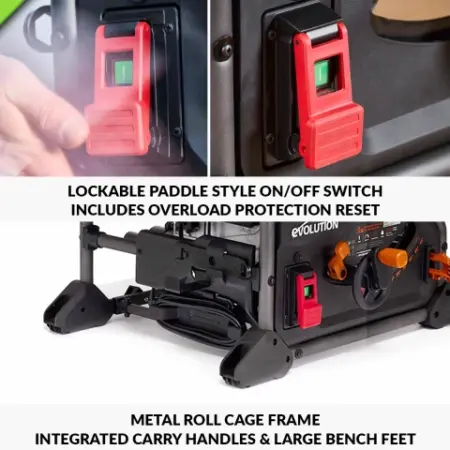

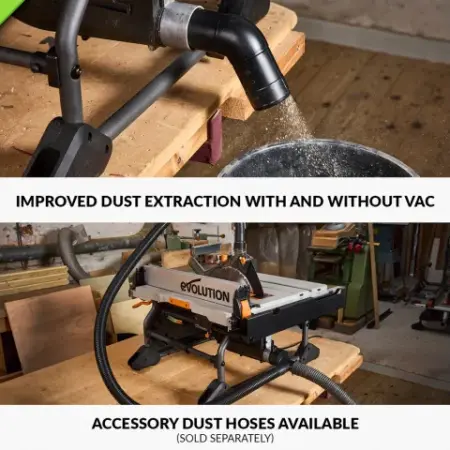

The Evolution R255TBL Portable Table Saw has a powerful 1,650W motor that features thermal overload protection and a paddle style emergency stop. The transparent blade guard offers improved cut visibility, and the Quick Release Riving Knife features offset-angle and lateral adjustment for safer cutting. The new motor housing offers improved dust extraction, better access for cleaning, and blade swaps are easier than ever before, just pop out the metal throat plate.

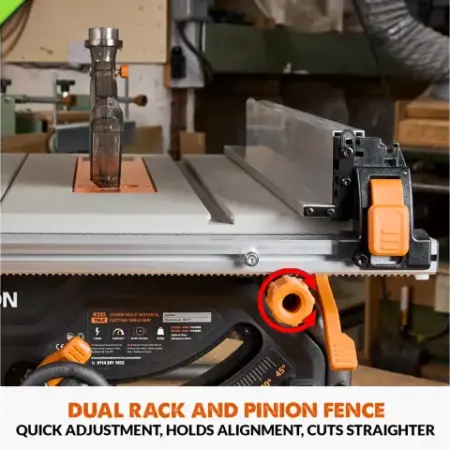

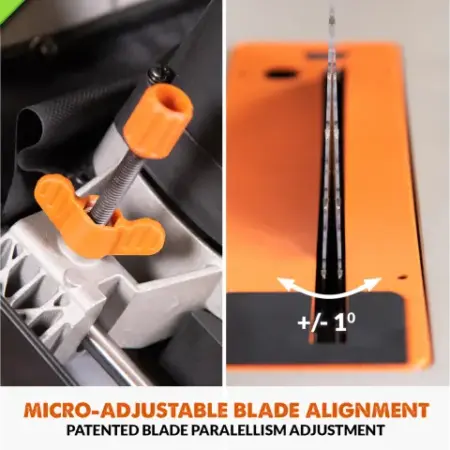

It features a dual rack & pinion rip-fence for accurate, repeatable cuts. A gear-driven blade height and angle adjustment mechanism makes repeat cuts easy and accurate. Our patented Blade-to-Rip-Fence Parallelism Adjustment allows for perfectly aligned cuts in full-size sheets with no binding or kickback. The R255TBL also features a metal throat plate with corner height adjustment as standard, there’s no plastic here.

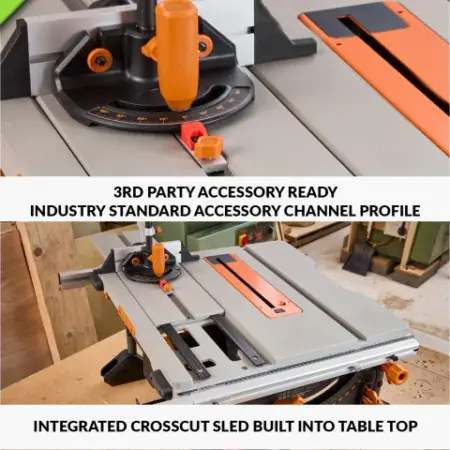

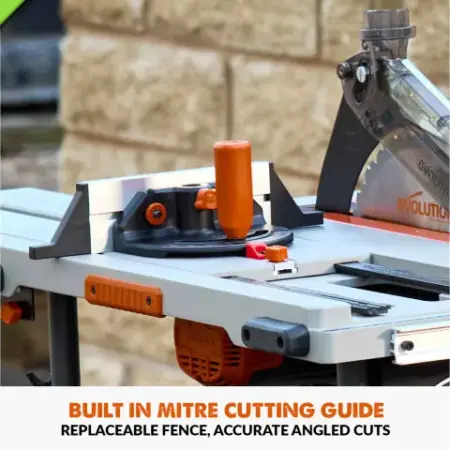

The R255TBL is more versatile. The integrated mitre sled uses an industry-standard channel profile for compatibility with 3rd party accessories, and our own mitre guide. It features a wider, thick, cast aluminium table top designed to excel at handling 8×4 sheets but still weighs less than the RAGE5-S. Add in improved dust extraction, Multi-material cutting ability, tool free set-up and adjustment and you have the most versatile table saw we’ve ever made.

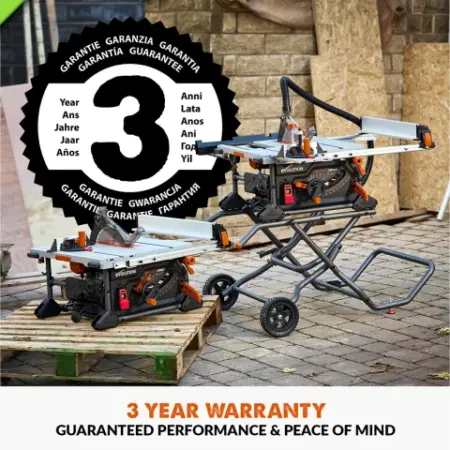

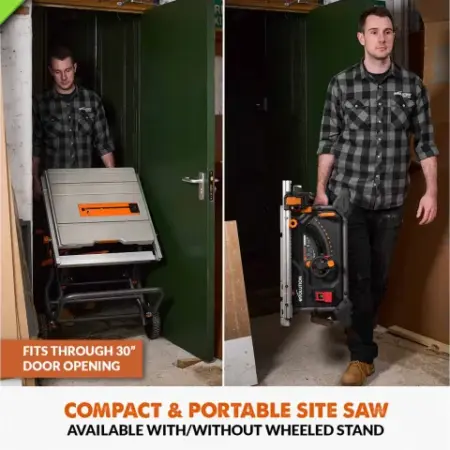

This R255TBL Table Saw is more portable. Mounted within a light, roll-cage chassis, with integral carry handles. It’s an easy one man carry without the wheeled stand, and superbly mobile on its large all-terrain wheels when you buy the matching stand, it easily passes straight through a standard width internal door (32in) making it the perfect jobsite saw.

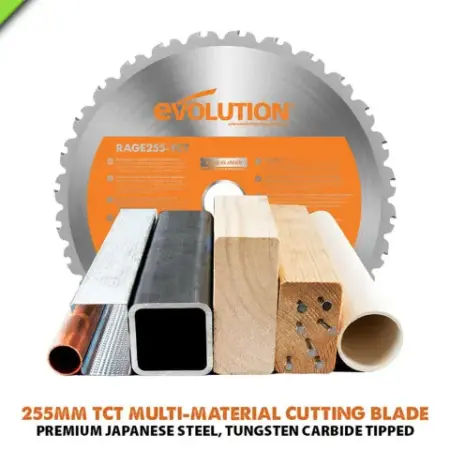

Supplied with: 1 x Multi-Material TCT Blade 255 x 25.4mm x 24T, 1 x Blade Guard with Dust Extraction Port, 1 x Built In Crosscut Sled, 1 x Dust Extraction 90° Elbow, 1 x Mitre Gauge, 1 x Adjustable Rip Fence, 1 x Push Stick, 1 x Riving Knife, 1 x Blade Changing Spanners and Assorted Fixings.
Specifications:
- Input Power: 1,650W
- No Load Speed: 2,500/min.
- Max. Bevel (Left): 45° (-2 to 47° with stop washers removed)
- Blade Dia. x Bore: 255 x 25.4mm

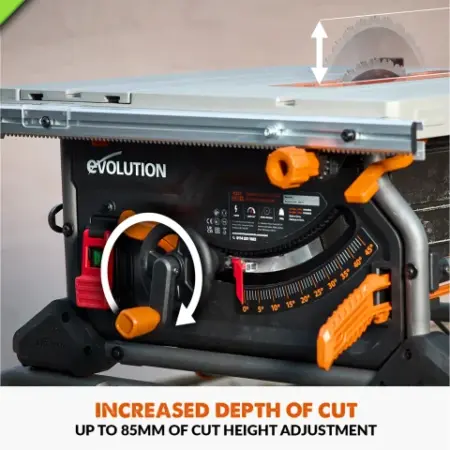

- Max. Depth of Cut: @0°: 85mm, @45°: 58mm
- Mild Steel Plate (Max. Thickness): 6mm
- Rip Capacity: Right of the blade 650mm, Left of the blade 371mm
- Riving Knife Thickness 1.8mm
- Dimensions: (with Leg Assembly) 1050mm x 750mm x 940mm, (without Leg Assembly) 880 x 730 x 330mm
- Max./Min. Table Dimensions 1200 x 640mm/745 x 640mm
- Storage Dimensions: folded with stand (HxDxW) 1110 x 760 x 850mm
- Weight: 21.2kg
