The OmniBase by Milescraft is the next generation in universal router bases. The 7″ (178mm) router base is compatible with nearly every router, from small trim routers to full-size plunge routers. This is possible due to its patented adjustable swivel mounting wings. Secure one or both fixed mounting locations to your router, then swivel the others to align. The OmniBase also is compatible with all of the other TurnLock jigs from Milescraft, making it a must have accessory to connect your existing router to all of the other jigs from Milescraft.
Features
- Router base plate is compatible with nearly every trim, palm, mid or full-size router.
- Compatible with 1-3/16″ Threaded/Porter Cable style metal bushings.

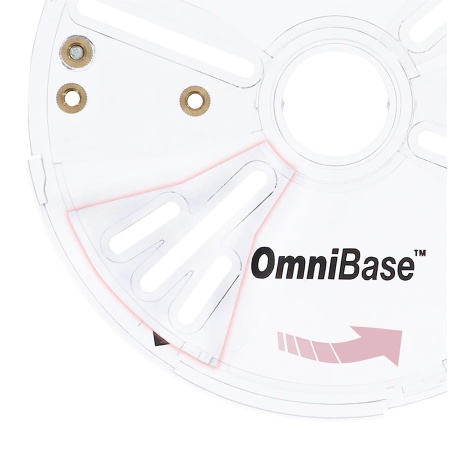

- Two fixed wings and two adjustable, swivel mounting wings align to any router hole pattern.
- OmniBase is compatible with past, present, and future Milescraft TurnLock jigs.

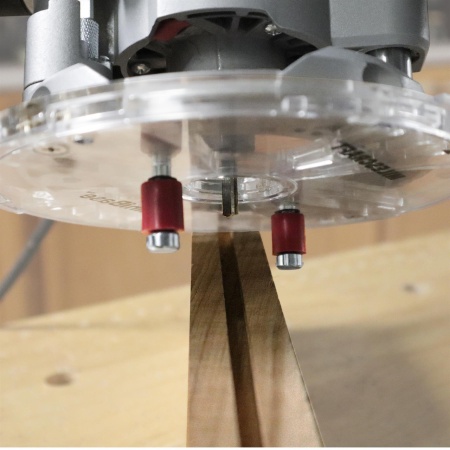

- Includes two non-marring mortising pins for cutting mortises into varying board thicknesses for tenon joinery.
- Centring pin fits in 6mm, 8mm and 12mm router collets or 1/4″ and 1/2″ for Imperial version (MC6202).
- 7″ (178mm) Diameter base plate increases stability during routing projects.
Includes
- 1x Clear Base Plate with
- 2x Adjustable Mounting Wings,
- 1x Centring Pin (6mm, 8mm and 12mm)
- 2x Mortise Pins
- 4x Mounting Washers
- Instruction Manual
ucantteachsomefolk (verified owner) –
This is a cracking bit of kit to allow the use of metricated Porter-Cable style of bushes on routers which only take their proprietary types such as Trend, Festool etc. The centring pin is concentric (sounds bonkers but all the centring pins I’ve had previously elsewhere were NOT ??) and fits 1/4″ & 1/2″ shank collets and the self-centring guides also great. Compared to lesser, more expensive alternatives, this is a bargain at full price – even better when on offer as recently. As for Yandles, they do not hang around with their deliveries so 5 * all round
