Milescraft EuroHingeJig

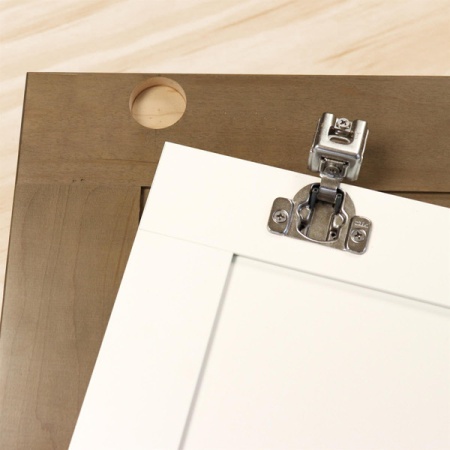

The Milescraft EuroHingeJig™ takes the guesswork out of installing kitchen cabinet concealed hinges. The self-aligning jig works with frameless and face frame cabinets and has settings for all the most popular hinge styles and cup locations. It even has a feature to help position and mount your door to the cabinet.

Features

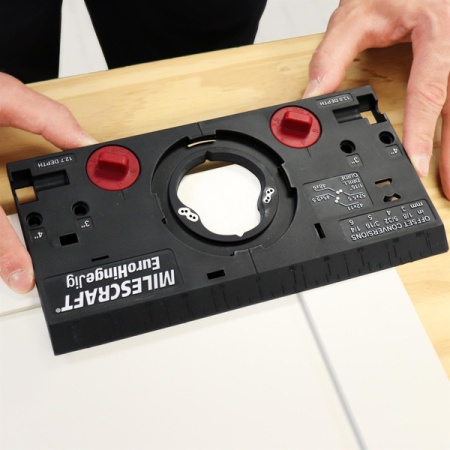

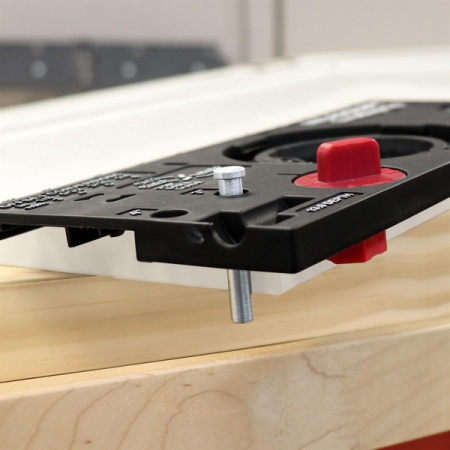

• Two edge alignment knobs position the cup hole from the edge of the door, while the edge locator pin sets the distance from the top/bottom

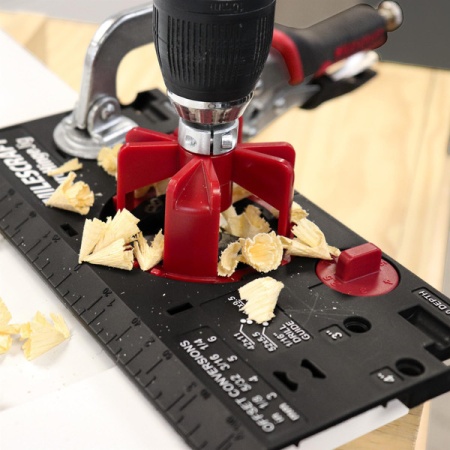

• The drill guide with metal bushing locks into the jig and creates a perfectly straight hinge cup hole
• Guide bushings built into the body of the jig let you pre-drill pilot holes in four common locations, making sure hinges are straight and the door closes true
• Easily set your cup hole depth on the included 35mm high-speed steel bit using the built-in depth setting fixtures

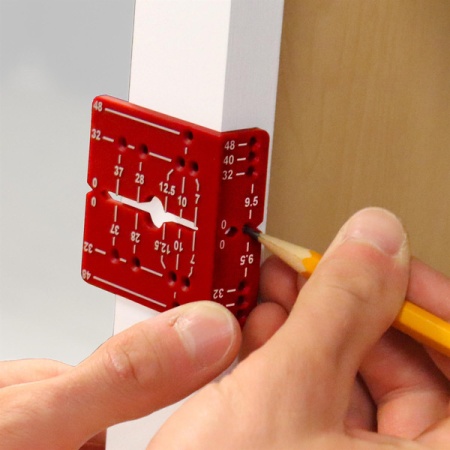

• The hinge marking guide detaches from the bottom of the jig and allows you to transfer and mark centrelines and hinge location to cabinet wall or frame

Includes

• 1 x EuroHingeJig
• 1 x DrillGuide
• 1 x 35mm EuroHingeBit
• 1 x 3/8” Split-Design Depth Stop Hinge Marking Guide
• 1 x Edge Locator Pin
• 1 x 1/16” Pilot Bit
• 1 x 3mm Allen Key
