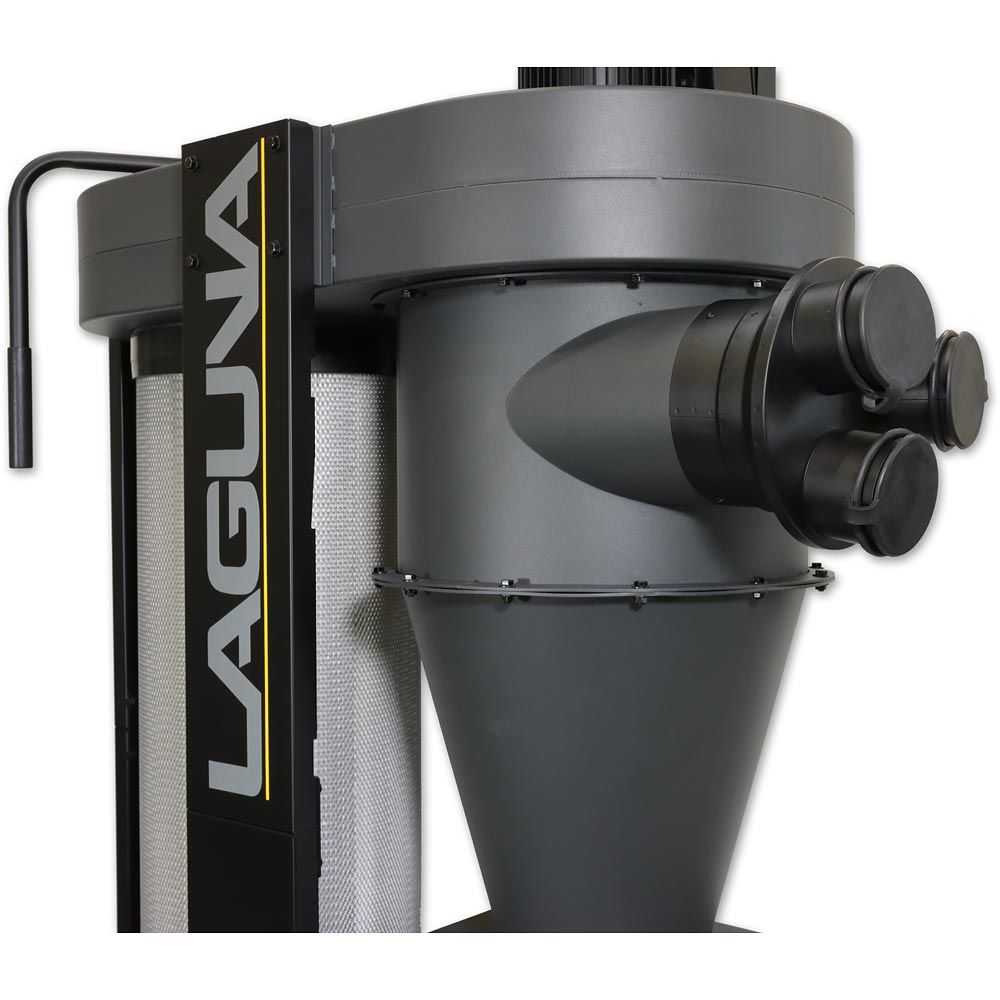

The C|Flux series sets a new standard for cyclones. The horizontal chute is designed to maximize airflow while improving CFM. All shapes and dimensions have been reevaluated to optimize performance.
The C|Flux:3 comes standard with a 1 micron canister providing filtration of 99.97% of particles between the sizes of 0.2 to 2 micron and features 109 sq/ft. of polyester spun bond pleated filter to ensure maximum airflow. 270° manual clean comes standard. High frequency remote control is also a very useful feature enabling switch on/switch off from anywhere within the workshop.
The C|Flux 3 can be equipped with an optional auto clean kit either at time of purchase or as an add-on later. The auto clean kit includes a smart sensor that detects a rise in static pressure indicating the filter is getting clogged and automatically activates the cleaning procedure.
The ingenious lift system quickly moves the drum off the floor and seals against the drum lid, avoiding the need for a flex hose. This design allows for much better portability as you are not forcing 4 wheels into the floor while pushing the unit.

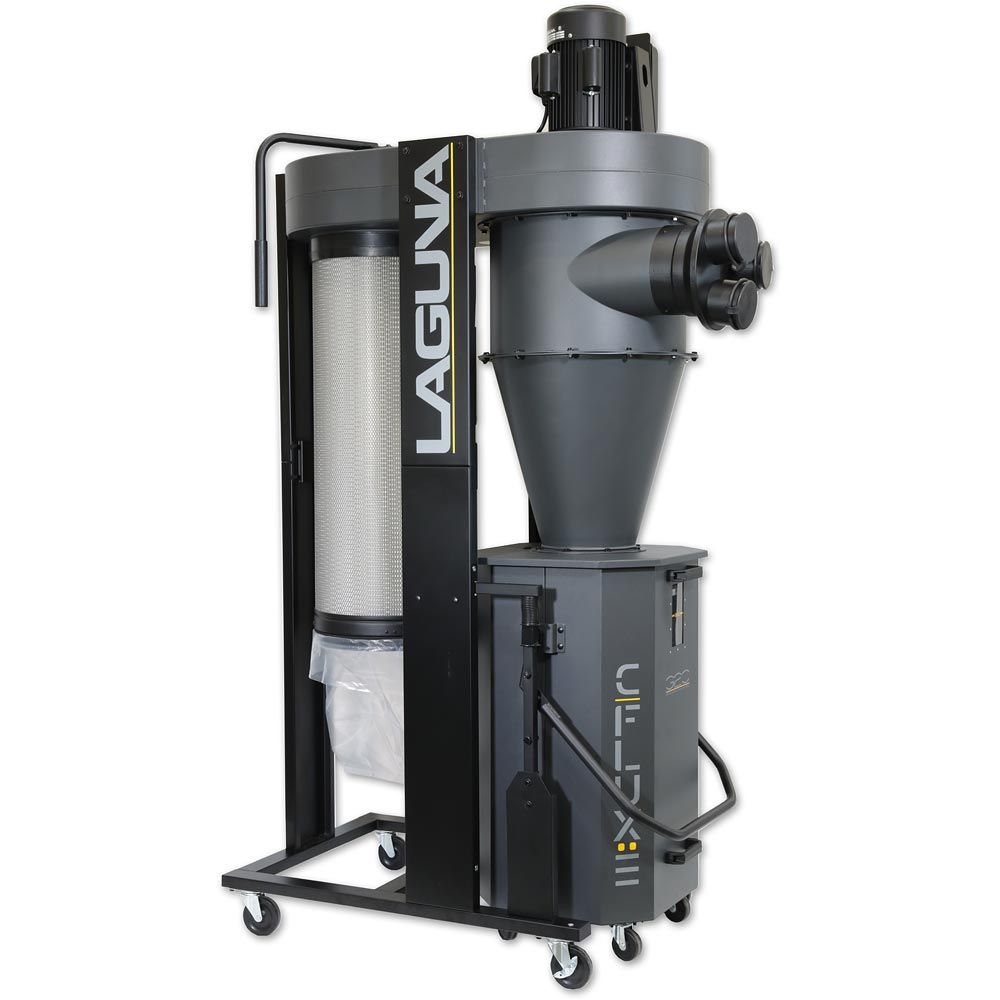

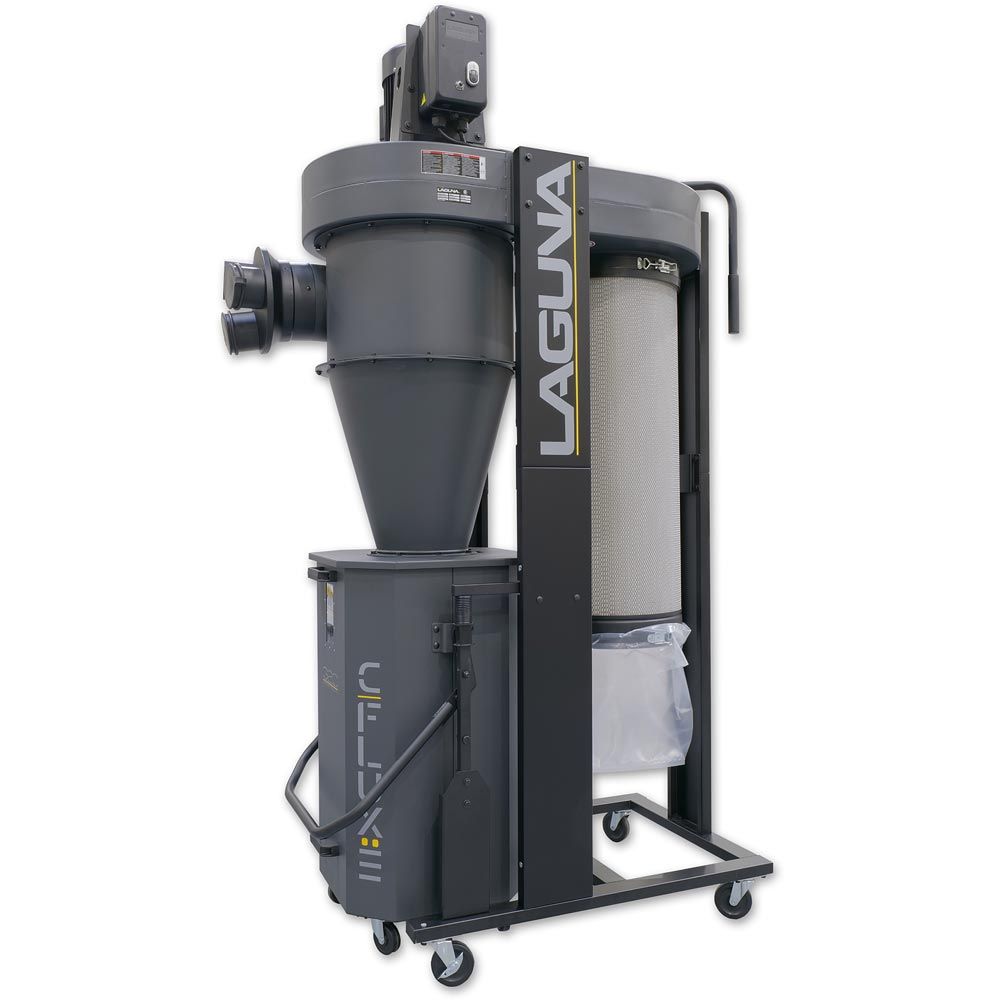

Laguna C Flux 3 Cyclone Dust Extractor with Fine Filter Single Phase
A quantum leap for Cyclones, this exceptional high quality and powerful Cyclone is ideal for larger workshops where airflow and consistency of performance are paramount.
£2,799.00 inc. VAT
Sorry this product has been discontinued
Dust ExtractorsShare this product
Weight | 170 kg |
---|---|
Choose Voltage: |
Motor 2200w (3hp)
Power supply 220-240v / 50 Hz / 1PH
Recommended breaker size (MCB) 30 Amps (type D)
6ft 3 wire cord with no plug Yes
RPM 2800
Hand held remote control Yes
Airflow (Traditional method) 3831 m3/hour (2253 cfm)
Airflow (Realistic method) 2209 m3/hour (1299 cfm)
Max. static pressure 285mm in water (11.2")
Inlet diameter 1 x 200mm or 3 x 100mm (1 x 8" or 3 x 4")
Impeller 390mm (15.5") Steel radial fin (ISO 1940 balanced)
Drum collection capacity 209 Litre octagonal drum
Bag hold down method Metal insert
Canister filter type 1 micron
Filtration efficiency 99.7% @ 1 micron
Canister cleaning Manual crank 270 degrees
Decibel reading 82 Db @ 3m
Drum collection bag layflat size 960mm x 960mm (38" x 38")
Filter collection bag layflat size 660mm x 620mm (26" x 24.5")
Dimensions 1168mm x 686mm x 2007mm
Weight (Net/Ship) 140Kg / 170Kg
