The Gyro Air® Dust Processor technology is revolutionizing dust collection. It was designed with Harvey’s invention of Axial Centrifuge Technology (aka Gyro Air® Technology) which is completely different to any existing dust collector on the market. The Gyro Air® Technology spins the flowing dust stream at high speeds (over 4000 rpm), which generates a significant centrifugal force on dust particles (a G-force of over 100) causing them to be pushed away from the air flow centre and depositing them into dust tanks. The clean air remains in the chambers and any remaining fine particles are collected in the air filters.
Features Include:
- Axial Cyclone Dust Separation System
- 99.97% Of Dust Separated Pre-Filter
- Very Quiet Operation 61-72dbA
- Compact Size With Built-in Wheel Kit
- Filters 99.99% > 1 micron
- Filters 99.35% > 0.3 micron
- Industrial Variable Speed Motor
- Collection Container Full Alarm
- Remote Control Start
- Powder Coated Steel Frame
- Internal Paddle Cleaning For Filters
- 2 x 100mm (4”) Diameter Inlets
- Dust Problems That Have Never Been Solved
In a woodworking shop, wood dust is always a big problem for woodworkers. Flying dust particles can severely harm not only the health of operators but also the environment. In past decades, woodworkers mostly used traditional dust collectors, such as bag collectors, or cyclone collectors. However, all of these existing collectors have never really solved the problems, instead, they created more issues:
- Very High Noise Levels (95-100dbA) – constantly damages operators’ ears.
- Difficult Maintenance – filters are easily clogged by dust and need be cleaned frequently.
- Bulky Structure – it occupies a very large space in a woodworking shop.
- Large Power Consumption – normally requires 3-5HP with expensive operating costs
- Traditional Cyclone Dust Collectors:
Cyclone dust collectors separate dusts by gravity (see diagram above). As gravity is not strong enough to push down small particles, only heavy dusts drop to dust tank. Up to 40% small dust particles are pushed up to filters which will be easily blocked, causing that the sucking static pressure drops rapidly. In addition, the dusty air flows in the cyclone and creates very large noise/vibration and energy consumption. All these problems have never been solved until now.
- A Revolutionary Dust Processor:
Because of the principal contradiction between dusty air flow and filtration,traditional dust collectors are struggling with filter clogging or bad air quality. Most of the dust collectors are very loud, bulky and difficult to maintain. This has been a long-standing pain for woodworkers.

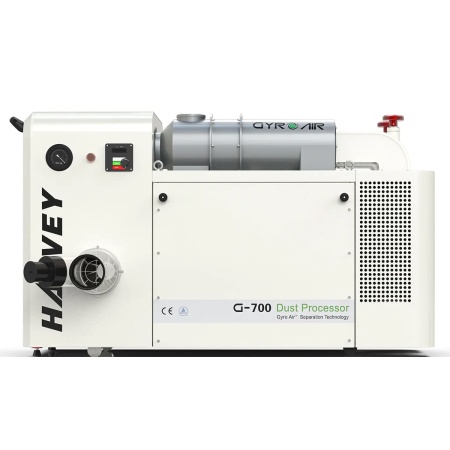

To solve this problem, Harvey team of engineers spent over 7 years of research and study, to develop an unprecedented Dust Collector, the Gyro Air® G-700 Wood Dust Processor. The G-700 Gyro Air® Wood Dust Processor incorporates a unique, patented technology to separate dust particles from the air and capture them before they enter the filters.
The G-700 uses the new Axial Centrifugation Technology (called Gyro Air® Technology), to spin the air/dust stream up to 4,000 RPM and generate a super strongcentrifugal force (over 100 times gravity) toseparate the dust from the air and collectit in two dust bins hidden internallyin the unit.
-
- High Efficiency: 99.7% dust separation before filtration
- Energy Saving: Up to 50% energy saving (only 1.5KW)
- Quiet: Super low noise 61-72 dbA
- Extremely Clean Emission: Filter emission rating 0.05mg/m³
- Never Blocked: Strong and stable static pressure
- Compact size with built-in mobility kit
- Strong and constant static pressure: 0.3-0.5μm@99.35%
- Industrial motor and VFD speed control
- Intelligent dust-full monitor
- Remote control
- Power coated steel frame
- Steel dust separation system
- Convenient tool-less dust tank cleaning
- 1-2 Dust port adapter
- Red Dot Design Award
- Gyro Air® Technology:
- High Efficiency:

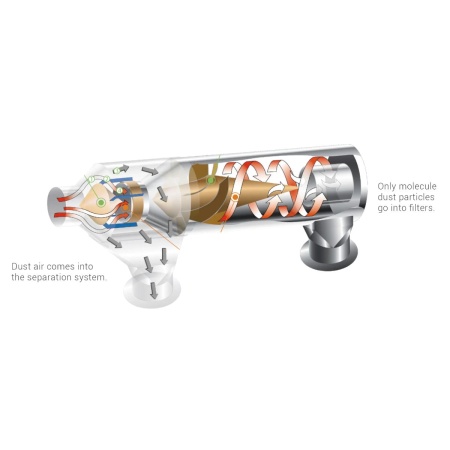

The Gyro Air® Dust Processor technology has revolutionized dust collecting. It was designed with Harvey’s invention of Axial Centrifugation Technology (or called Gyro Air® Technology) which is completely different than any existing dust collector on the market. The Gyro Air® Technology spins the flowing dust stream at high speeds (over 4000 rpm), which generates a significant centrifugal force on dust particles (over 100g) causing them to be pushed away from the air flow centre and depositing them into dust tanks. The clean air remains in the chambers and any remaining fine particles are collected in the air filters.
-

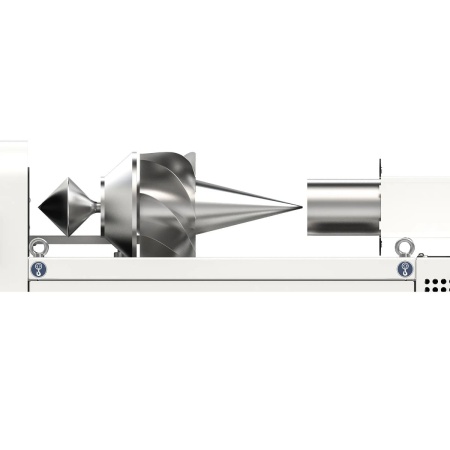

- Double Cone Separation Chamber:
Slowing down large particles for gravitational Drop.
-

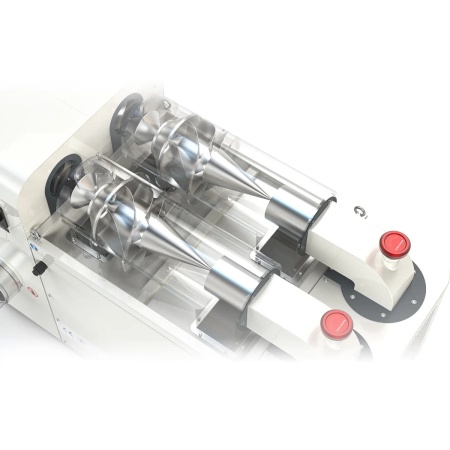

- Axial Centrifugation Separation Chamber (Gyro Air®):
Dust particle stream is pushed into special aerodynamic channels, generating high speed spinning.
-
- Preliminary Separation:
Heavier dust particles drop into the tank by gravity.
-
- Secondary Gyro Air Separation
99.7% of small dust particles are separated by strong centrifugal force and pushed into the dust tank.
With the new Axial Centrifugation Technology (called GYRO AIR® Technology), the G-700 can collect 99.7% of the dust particles before the air reaches its filters, which means much less cleaning of the filters without any clogging.
- Energy Savings:
Benefiting from the GYRO AIR® Technology and the VFD speed control system, the entire extraction system is aerodynamically optimized with extraordinary running efficiency, so it can save up to 50% in energy costs.
- Quiet:
The GYRO AIR® technology and its unique aerodynamic design allow the G-700 GRYO AIR® to run at an incredibly low noise level of 61 to 72 dB(A).

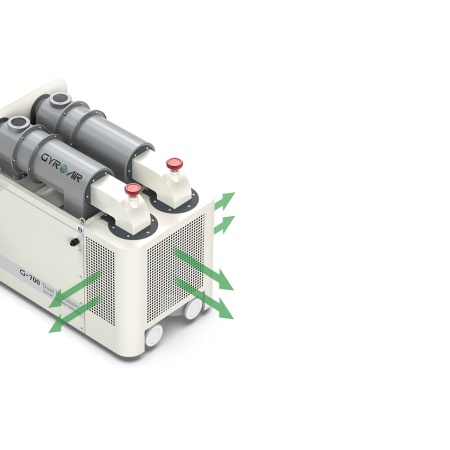

- Extremely Clean Emission:
The air emission cleanliness level from the filters can reach an unbeatable 0.05 mg/m³ (50% better than the European Standard of 0.1 mg/m³).

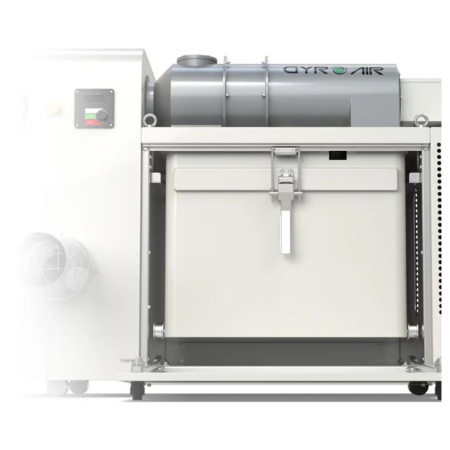

- Convenient tool-less dust tank cleaning:

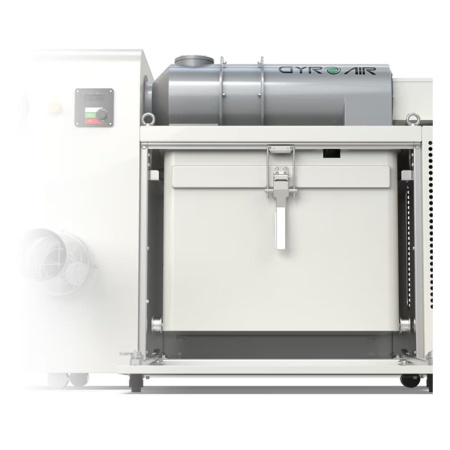

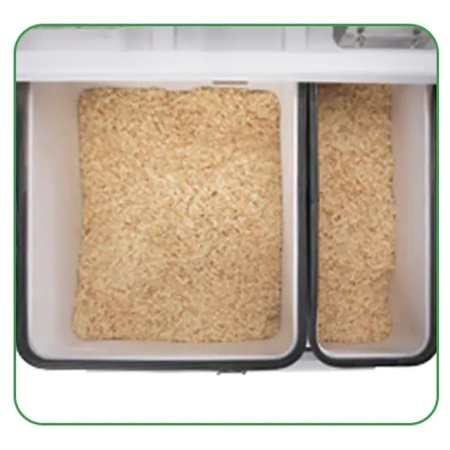

The two dust bins are sealed when in use but are then easily accessed through a panel on the side of the unit, and they roll out for easy emptying (and you can use disposal bags to take out wood chips).

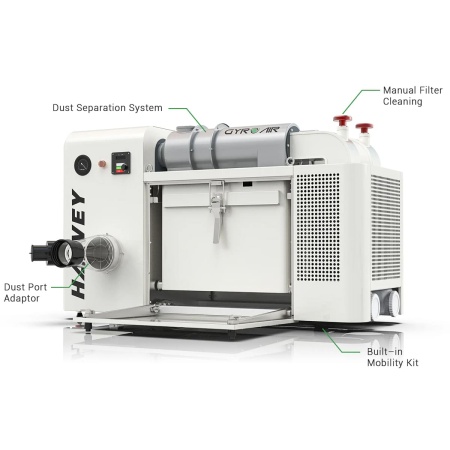

- Standard Equipment:

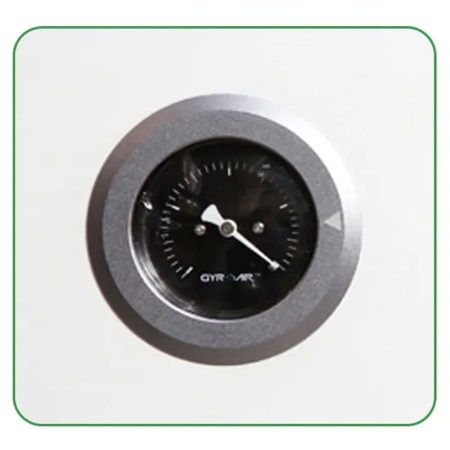

- Pressure gauge

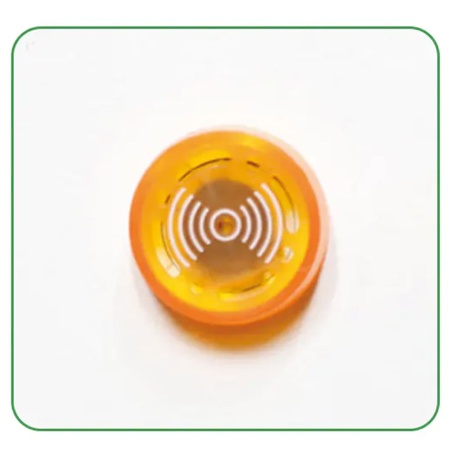

- Buzzer alert for bin full

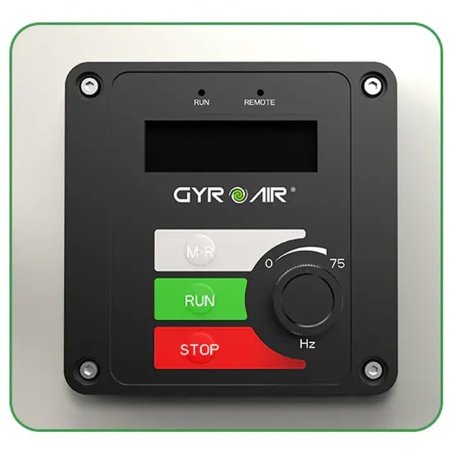

- Control Panel with variable speed control
- Dust seperation system
- Dust port adaptor
- Build in mobility kit

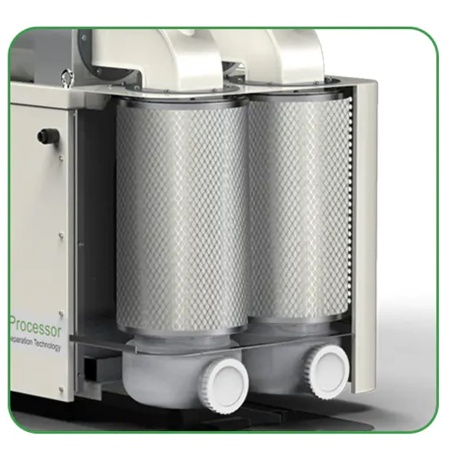

- 2-Filters
- Dust bin

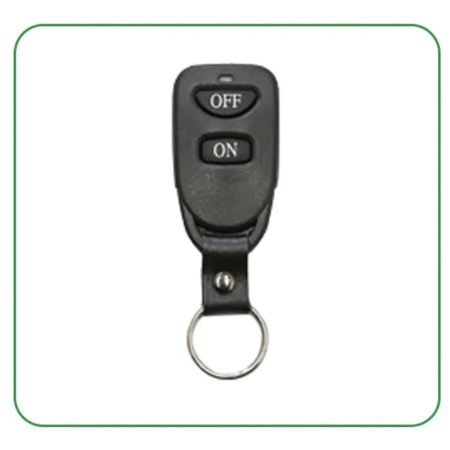

- Remote Control
State of Art Engineering for Life Time Reliability!
