A compact and well made combination disc & belt sander. Ideally suited to any small workshop and an excellent choice for model makers, toy makers, or anybody working with small components.
1″ Wide Belt Sander Tilting Work Table with Back Plate 2″ Diameter Drum for Curved Sanding 5″ Diameter Sanding Disc Tilting Work Table With Mitre Fence 2 Dust Collection Outlets
A cast iron base gives this mini sander a solid look and feel.
There are 3 different sanding stations on the machine:

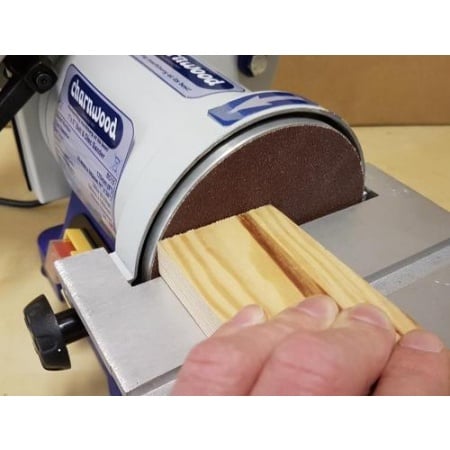

For sanding larger flat faces or end grain use the 5″ diameter sanding disc. It is complimented by a solid one piece cast aluminium work table, hinged at both ends to allow a tilting function of up to 45 degrees. The work table also has a slot to mount a mitre fence which can be adjusted up to 60 degrees each way. Allowing mitred and compound angles to be sanded. A dust extraction outlet is provided to connect to a suitable vacuum or extractor.

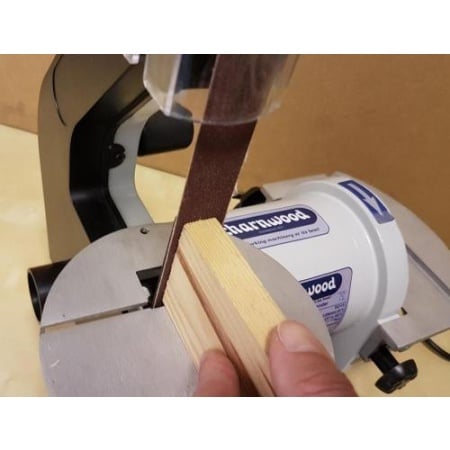

For edge sanding, profiling or sharpening tools, the belt sander is 25mm wide with a back plate to keep its shape. It has a solid one piece cast aluminium work table, hinged to allow tilting to 45 degrees. There is an adjustable stop provided to ensure it always goes back to 90 degrees.
Removing the top roller safety guard gives access to the sanding belt drum which can be used for sanding curved shapes.
The sander sits on 4 rubber feet to provide a stable platform. It can also be secured to a work bench using the 2 mounting points provided.
Supplied with mitre fence, 1 x 80 grit sanding belt, 1 x 80 grit self adhesive sanding disc, 2.0m power cable & UK 3 pin plug.
Products > Tools & Machines > Machinery > Bench-Top & Drum Sanders > Charnwood 1” x 5” Belt & Disc Sander BD15
Charnwood 1” x 5” Belt & Disc Sander BD15
SKU: CHRBD15MACHINE ONLY
Category: Bench-Top & Drum Sanders
Rated 4.75 out of 5 based on 8 customer ratings
(8 customer reviews)
£89.99 inc. VAT
Bench-Top & Drum SandersShare this product
Weight | 7.5 kg |
---|---|
Choose Package: |
Disc Diameter 125mm (5”)
Belt Size 25mm x 762mm (1” x 30”)
Motor (Induction) 240v, 50hz 250w (0.33hp)
Motor No-Load Speed 2850rpm
Disc Sanding Table 185mm x 95mm
Table Tilt 90 – 45 degrees
Belt Sanding Table 150mm Diameter
Table Tilt 90 – 45 degrees
Acoustic power level 91.1db (A)
Acoustic pressure level 79.9db (A)
Dust Extraction Outlet x 2 45mm OD / 38mm ID
Overall Dimensions (WxDxH) 380mm x 300mm x 400mm
Shipping Dimensions 460mm x 330mm x 330mm
Weight 7.5kg
Rating Hobby
Warranty 1 Year
