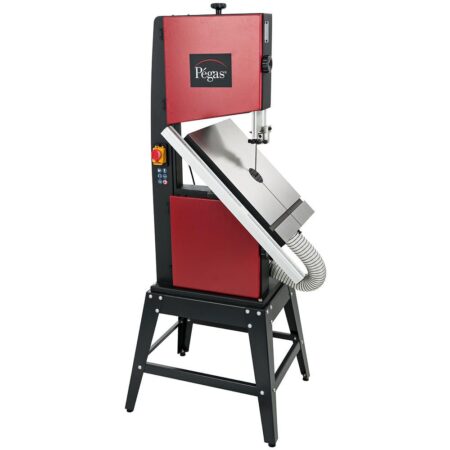

The SRP13 DUAL bandsaw by Pégas combines two machines in one – a scroll bandsaw and a standard bandsaw.
Switching between the classic blade guide, the Pégas precision guiding system, or the sanding belt setup takes just a few minutes.

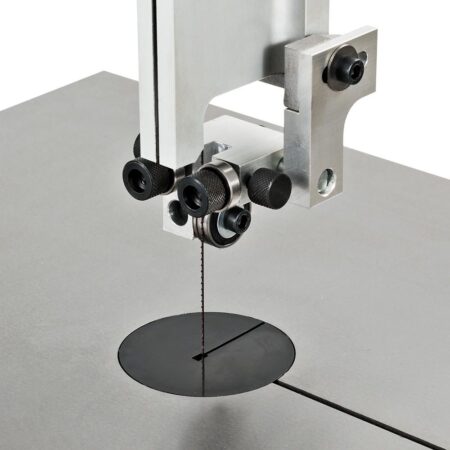

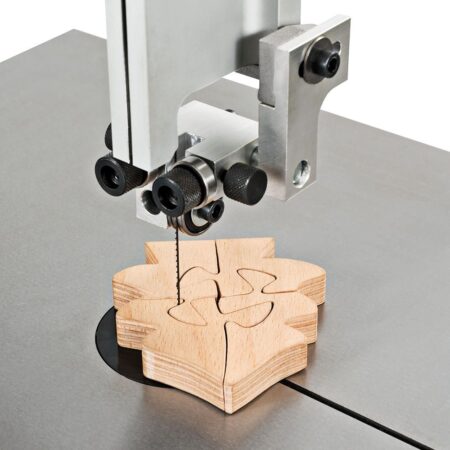

Scroll bandsaw: Equipped with the world’s finest and most precise saw blades, this bandsaw enables intricate woodworking, comparable only to what is typically achieved with scroll saws. The specially developed precision guiding system features roller bearings with guide grooves tailored to the respective scroll bandsaw blade. This ensures that the ultra-thin scroll bandsaw blades, ranging from 1.02 to 3 mm in width, are perfectly guided, prevented from twisting, and capable of performing the most delicate cuts, even for complex shapes and tight radii of less than 2 mm.

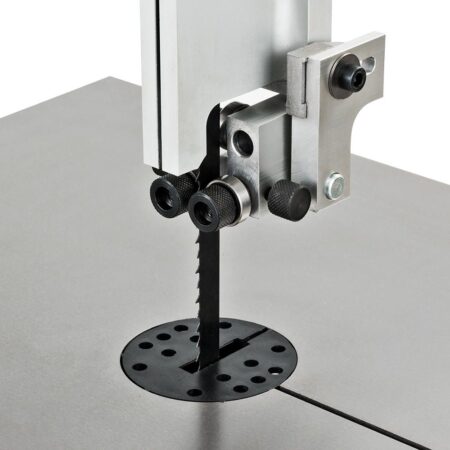

Standard bandsaw: When converted and equipped with the included standard blade guide, blades ranging from 6 to 16 mm in width can be used. The wider and sturdier saw blades facilitate rougher cutting tasks, rip cuts, and straight kerfs. The machine offers all the features typically expected from a bandsaw. The solid cast iron table can be tilted from -5° to +45° and contains a 19 mm T-slot for guiding the supplied mitre gauge (-60° to +60°). The rip fence made of aluminium profile includes an integrated magnifying glass for easier reading of the mm/inch scale.
Further benefits:

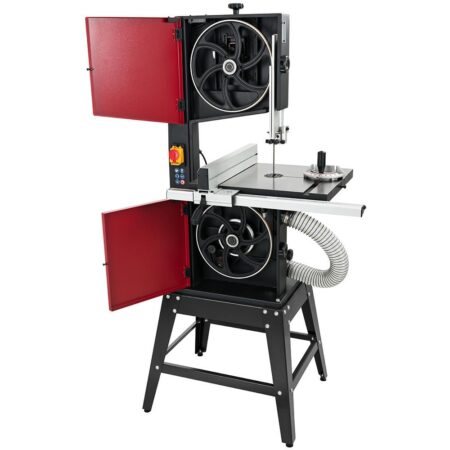

- The machine, including the two doors, is made entirely of sheet steel.
- Safety switches on the doors prevent the machine from operating when a door is open.
- The on/off switch with no-volt release prevents unintentional start-up.
- Two blade speeds ensure optimal work results.
- Balanced bandwheels with rubber coating.
- High weight, approx. 70 kg, for excellent stability and smooth running.
Spec
- Scroll bandsaw blade No. 9 (2305 x 1.34 x 0.44 x 2.43 mm)
- Scroll bandsaw blade No. 12 (2305 x 2 x 0.5 x 2.85 mm)
- Two bearing guides (each with a groove guide for bandsaw blades No. 9 & No. 12)
- 12.5 mm standard bandsaw blade
- Table inserts for fretwork, 2 pieces
- Rip fence
- Mitre gauge
- Sheet steel base frame
- Push stick
- Operating tool
- Blade length: 2300 mm
- Blade speed: 360 and 720 m/min
- Blade width min./max.: 1 to 16 mm
- Dimensions (L x W x H): 1625 x 890 x 700 mm (incl. base frame)

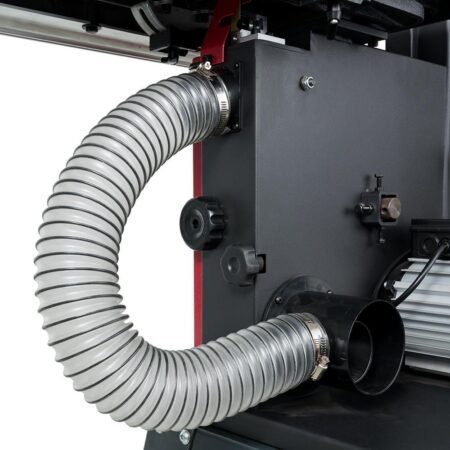

- Hose Connection Ø: 100 mm
- Max. depth of cut: 175 mm
- Max. width of cut with fence: 245 mm
- Max. width of cut without fence: 310 mm
- Motor voltage: 230 V / 50 Hz
- Power input: 750 W
- Power source: Corded
- Table height: 1035 mm
- Table size: 500 x 400 mm
- Table tilt: -5 to +45°
- Weight: 70 kg
- Wheel ø: 320 mm
The Pegas Scroll Bandsaw is an innovative machine, designed for scroll work, although it can also handle traditional straight / resaw cutting too, its predominantly designed around tight scroll work. Unlike a scroll saw, theses machines have bigger depth of cuts, bigger throat capacities & a larger worktable. Fitted with a specially designed scroll guide kit, making large scroll work easy!
This floor-standing woodworking machine features a 175mm depth of cut and 310mm throat capacity — ideal for bigger workshops
Looking for something smaller? The Pegas DUAL 10 offers a smaller cutting depth with a similar spec, while still maintaining the same reliable build quality. The smaller model also has a reduced footprint.
For smaller workshops or lighter use, the compact Pegas DUAL 8 is a benchtop version of this machine with a reduced cutting depth and footprint.
