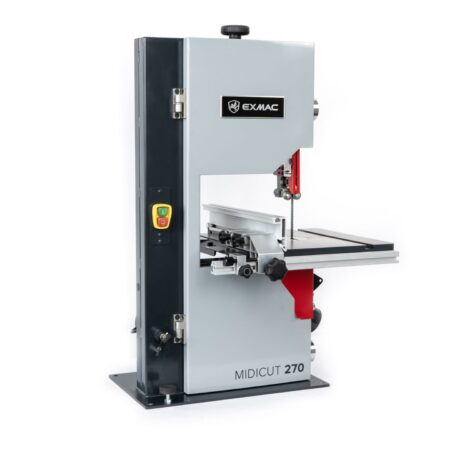

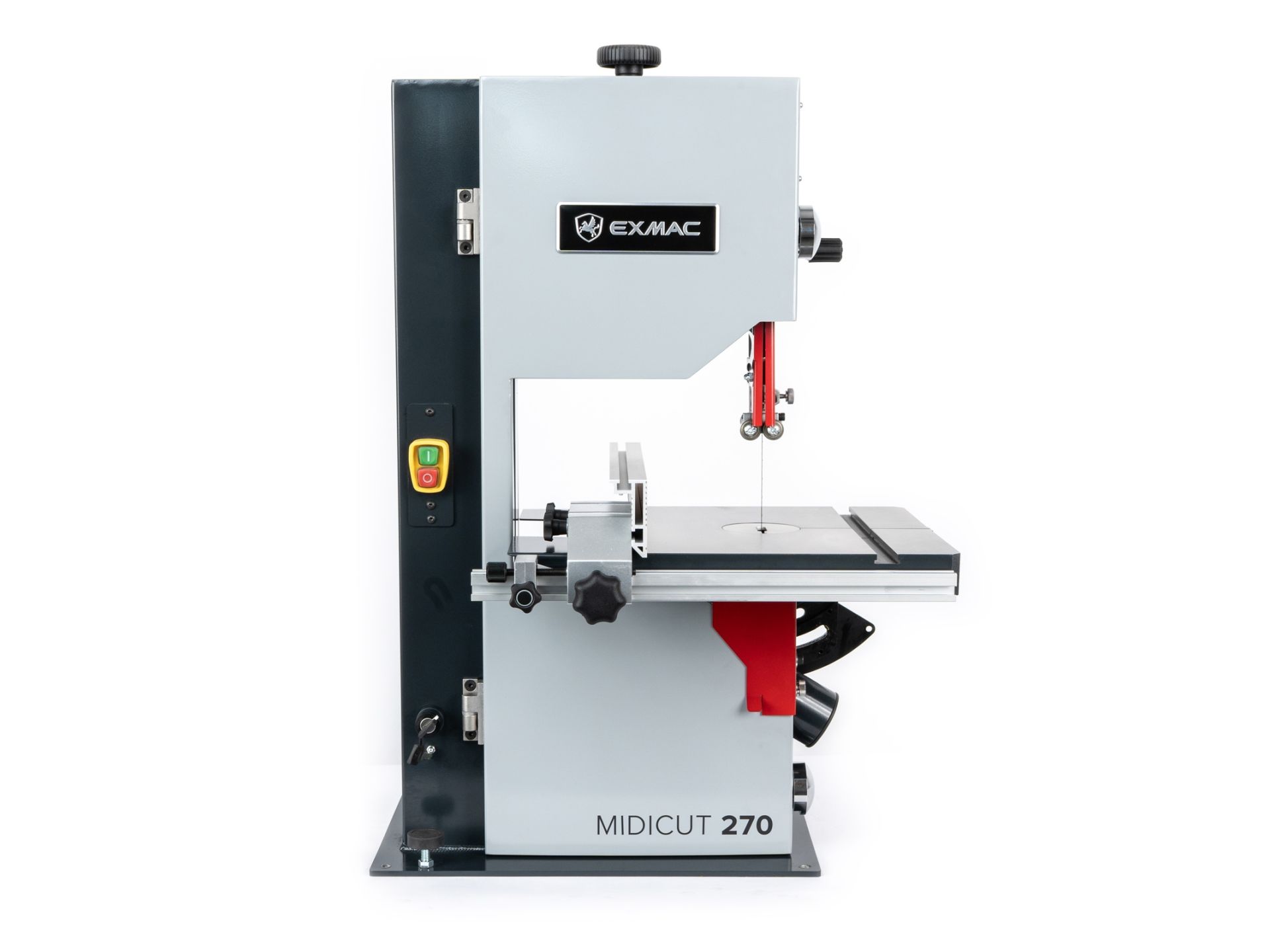

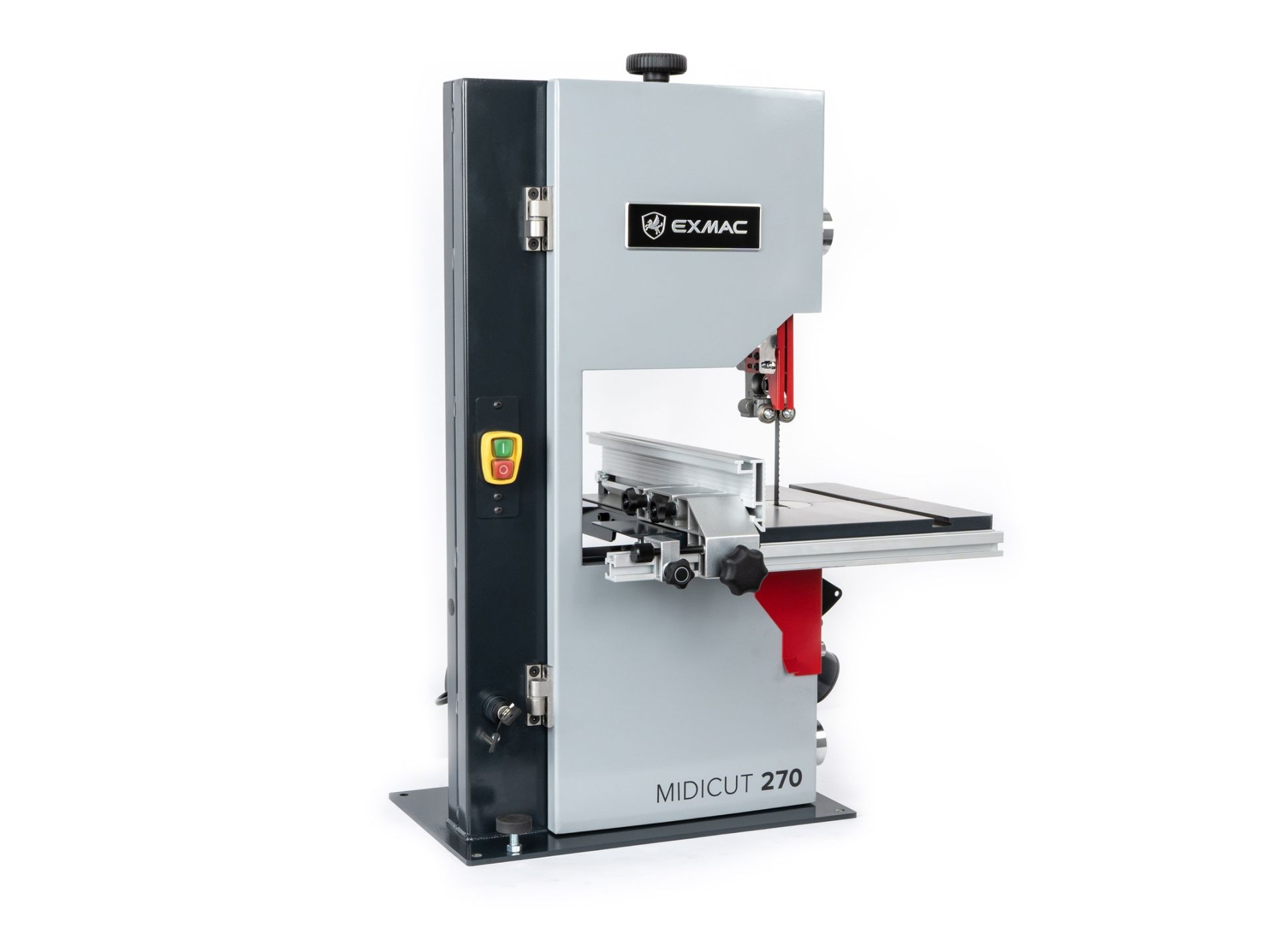

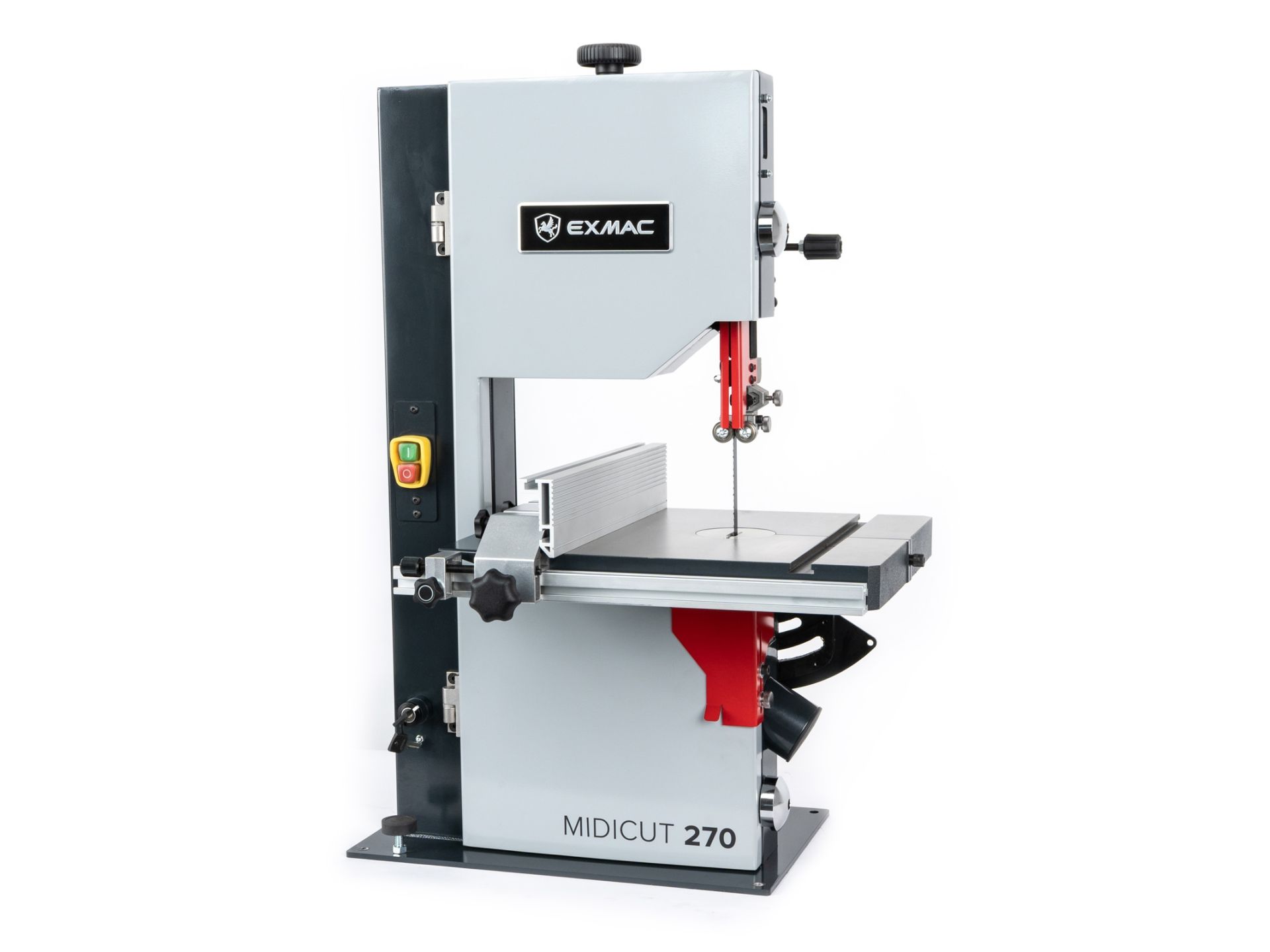

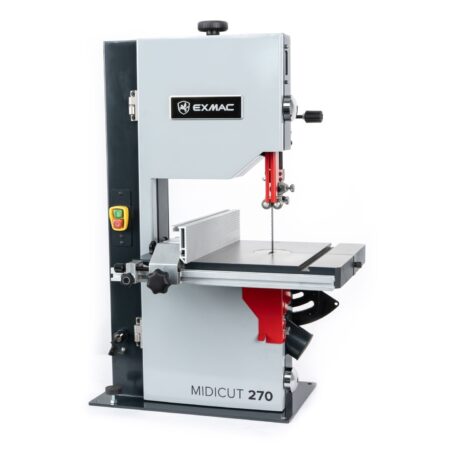

Compact universal bandsaw for a wide range of applications and material processing options!
The special feature of this bandsaw is the universal blade guide and the high-quality design.
Standard and fine-cutting guide units included

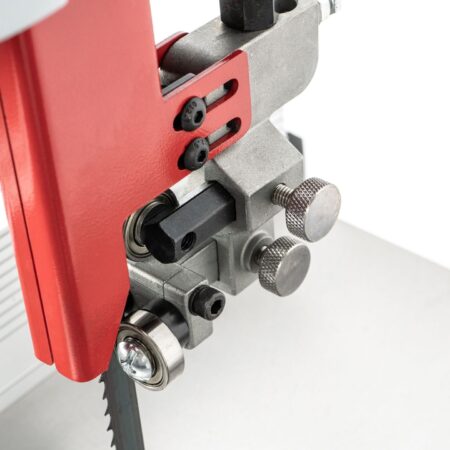

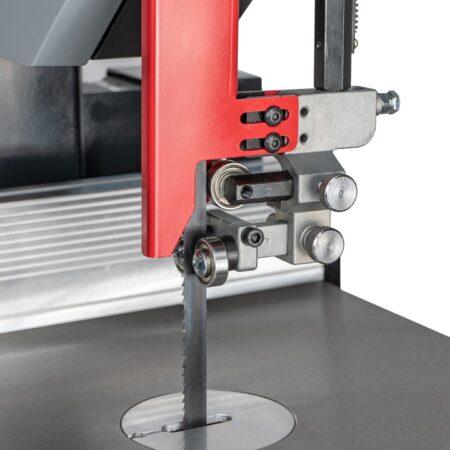

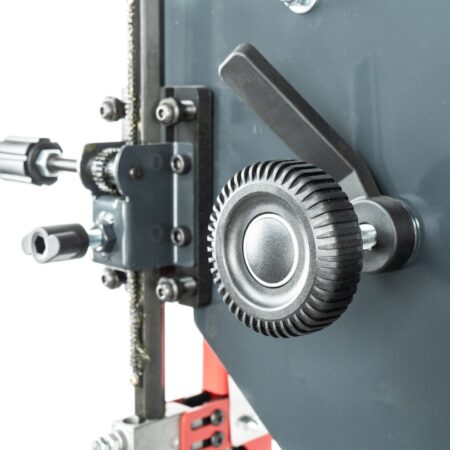

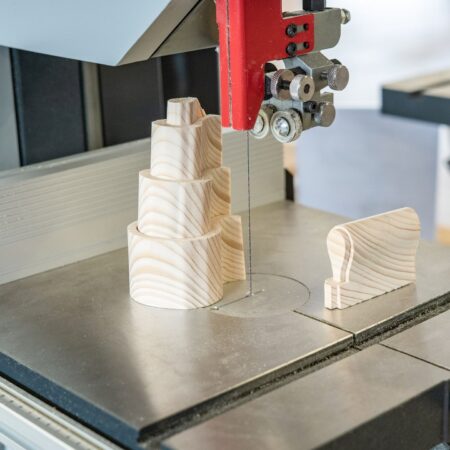

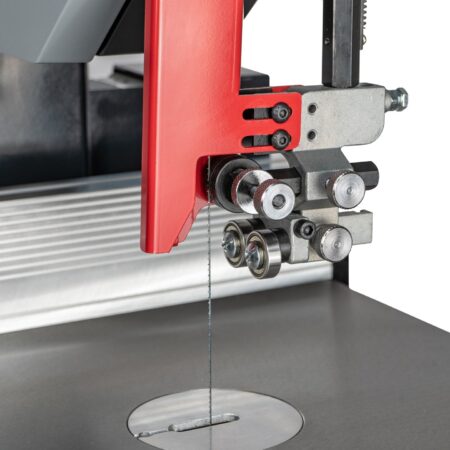

In addition to the standard guide unit, which is suitable for common bandsaw blades up to 13 mm, a fine-cutting guide unit is included as standard. The guide unit can be changed in just a few steps and the bandsaw can be used as a fine-cutting bandsaw. All blade guides are equipped with ball bearings and can be finely adjusted for precise control.
Powerful drive with two belt stages
The MIDICUT 270 has a 1 HP motor with power electronics and two speed levels (540 & 820 m/min), which are switched by repositioning the belt.
Main features:
- Maximum cutting depth 160 mm
- Maximum cutting width 250 mm
- Stable construction, high-quality components and versatile in application (standard and fine-cutting bandsaw in one)
- Heavy body, solid cast-iron table with ground surface

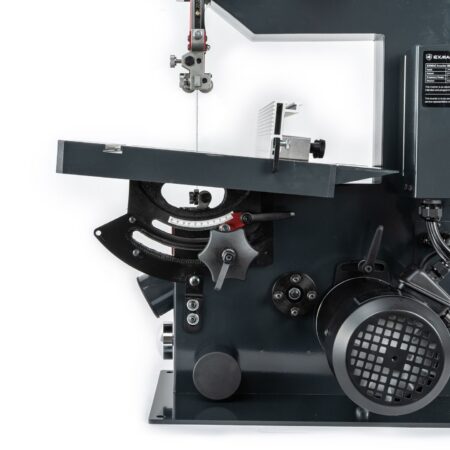

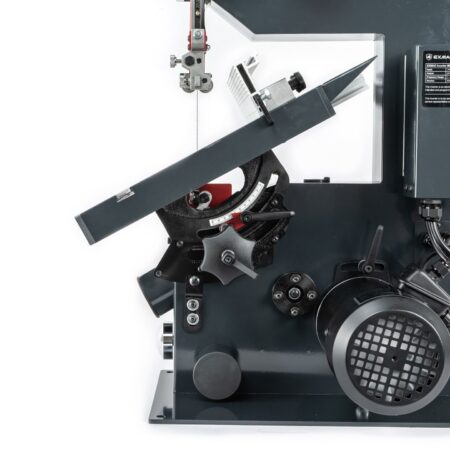

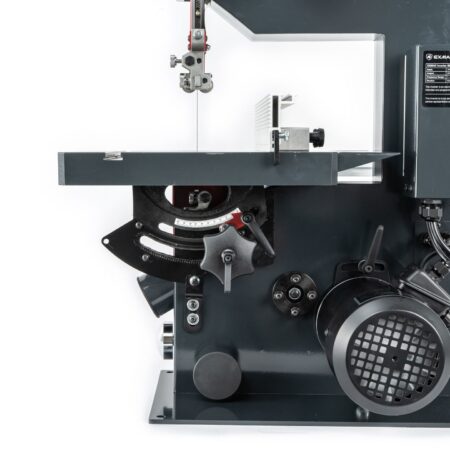

- Precise adjustment of the table tilt

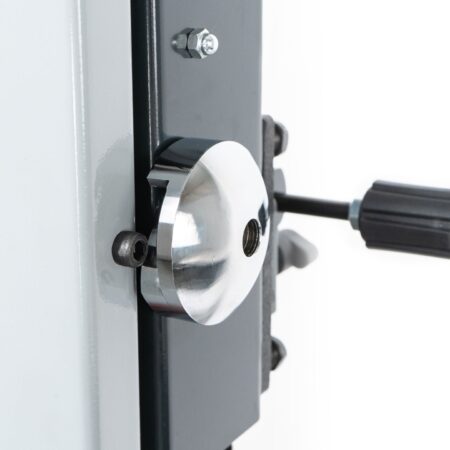

- Solid cast iron wheels
- Space-saving design with high-quality features
- 5-year EXMAC warranty
Technical information
- Power 750 W / 230 V
- Two speed levels 540 & 820 m/min
- Bandsaw blade length 1.858 mm
- Diameter of wheels 270 mm
- Blade width 1,34 mm to 13 mm
- Max. cutting height 160 mm
- Max. cutting width 250 mm

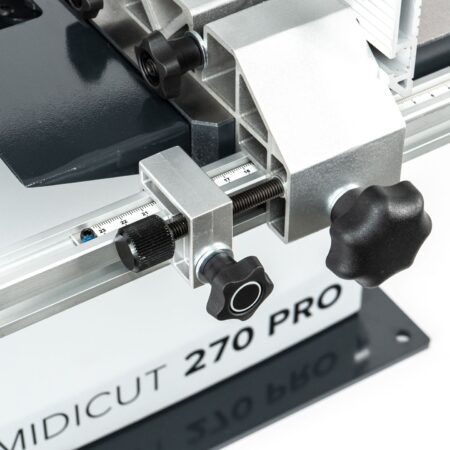

- Max. cutting width with fence 220 mm
- Table size 350 mm x 350 mm

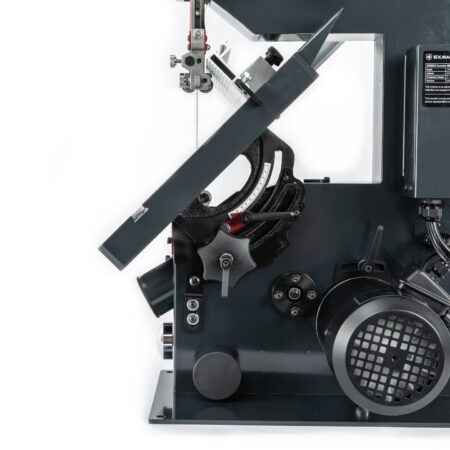

- Table tilt 5° – 0° – 45°
- Dimensions (L x W x H) 590 mm x 560 mm x 830 mm
- Weight 63 kg

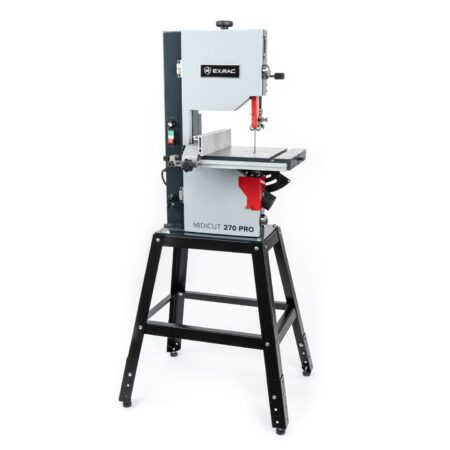

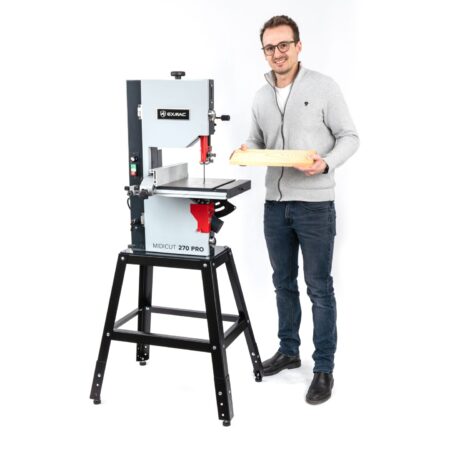

Machine stand is available to be purchased separatelyÂ
