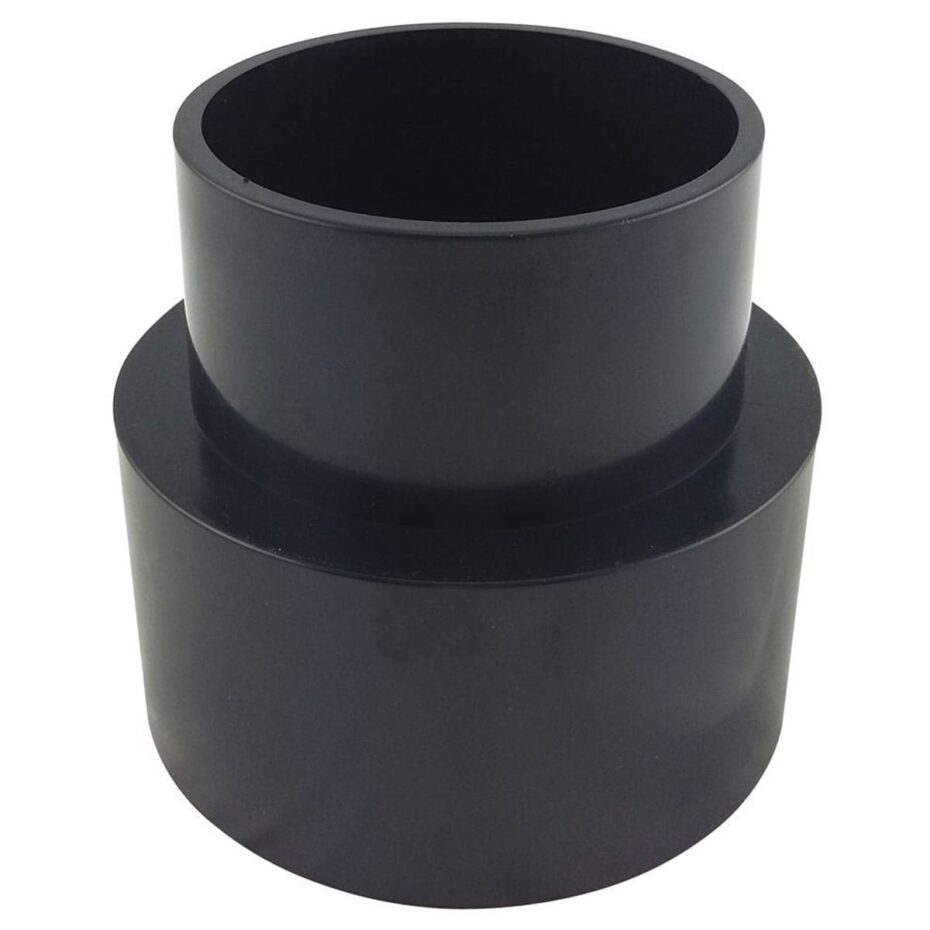

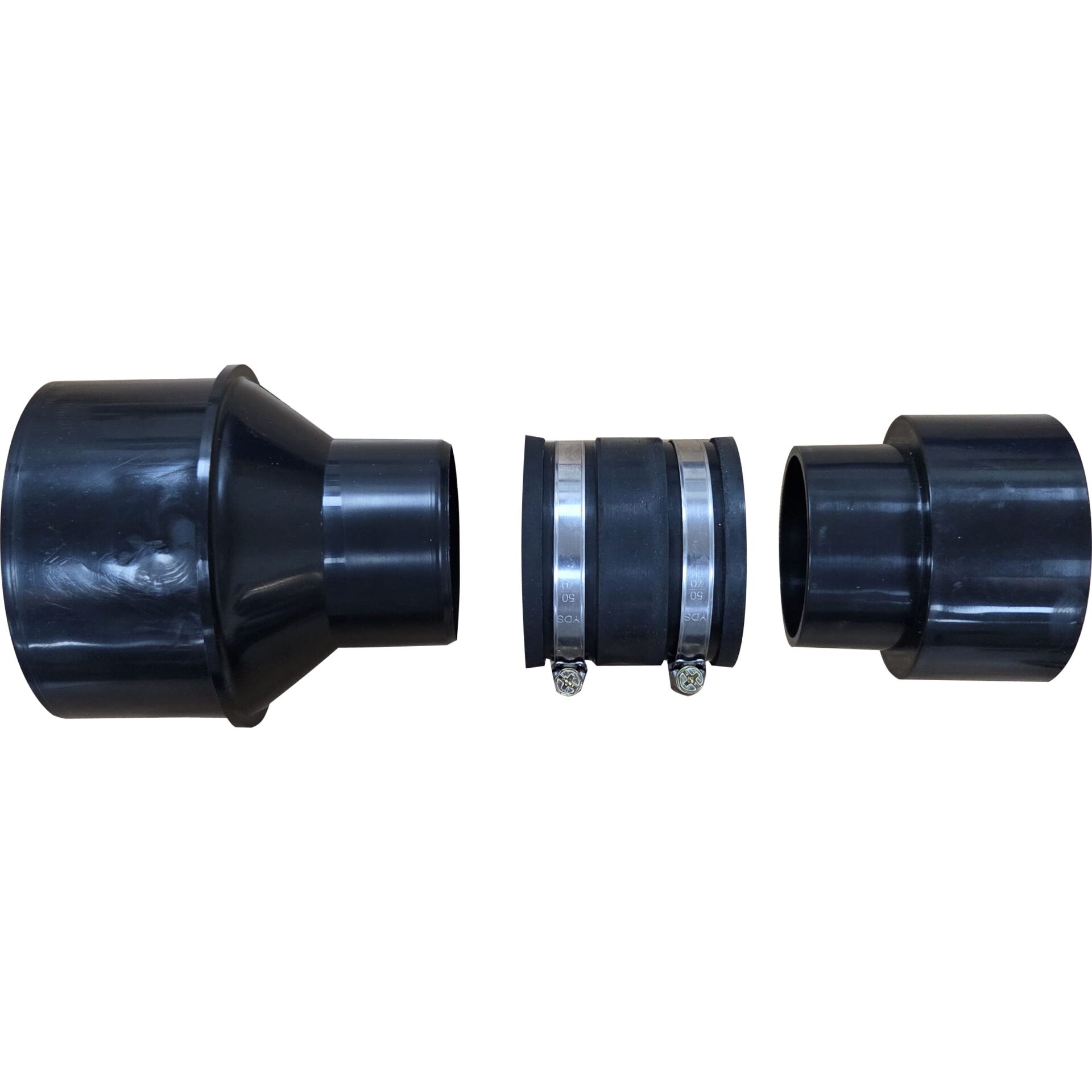

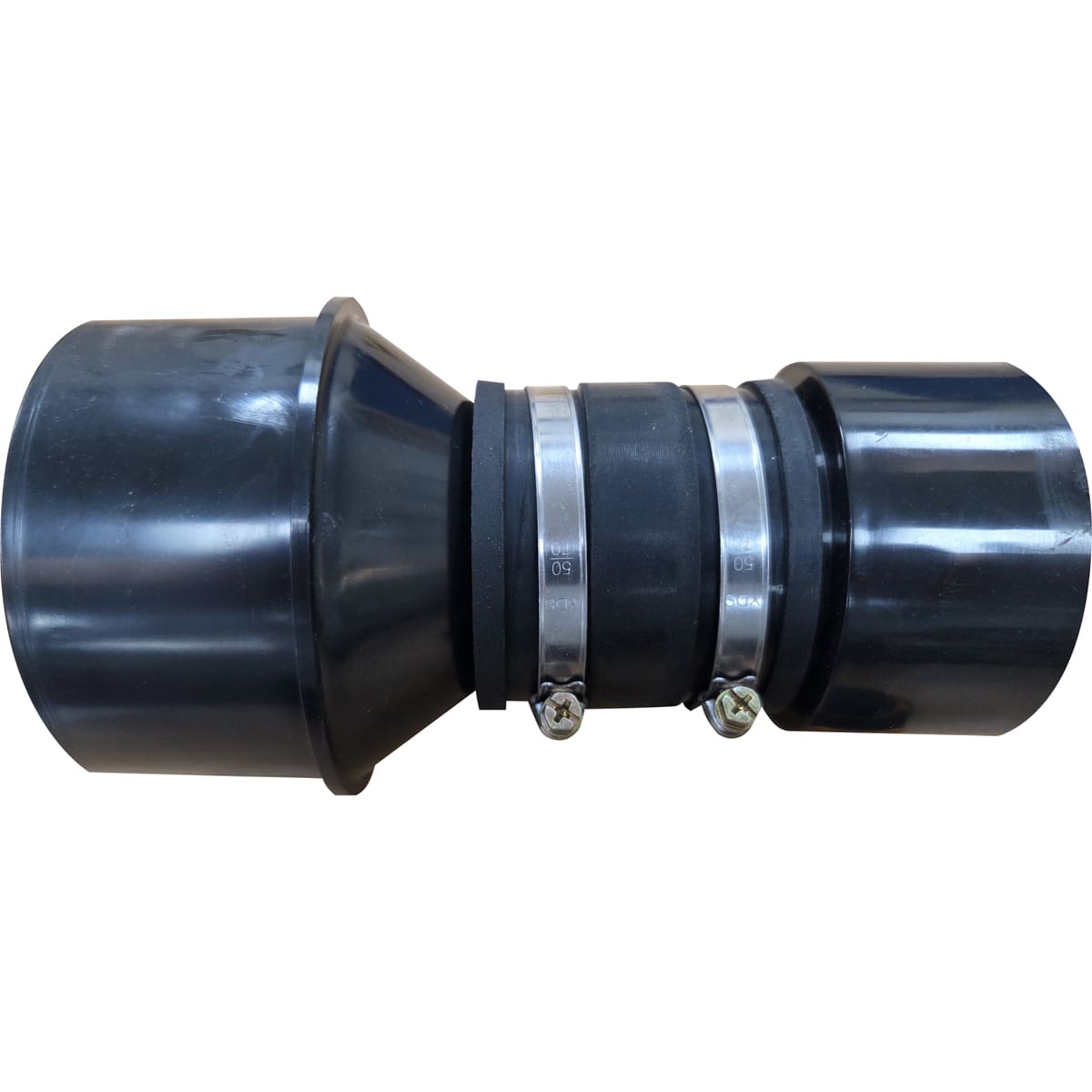

Charnwood 100/81RC Hose Reducer 100mm To 81mm (4″ To 3.25″)

Reducing cone used to step down or up in hose size and used to for connecting to machinery with different sized outlets.

It is recommended that 100mm diameter hose is always used from the extractor to the dust producing machine and then the reducing cone fitted. Using any length of hose of less than 100mm diameter will reduce the performance of the extractor and should therefore be kept to a minimum. A 100mm hose clamp should be used to fasten the hose the reducer.

• Outside Diameter: From 100mm to 81mm
• Inside Diameter: From 93mm to 76mm
• Overall Length: 190mm
• Material: Plastic & Rubber
